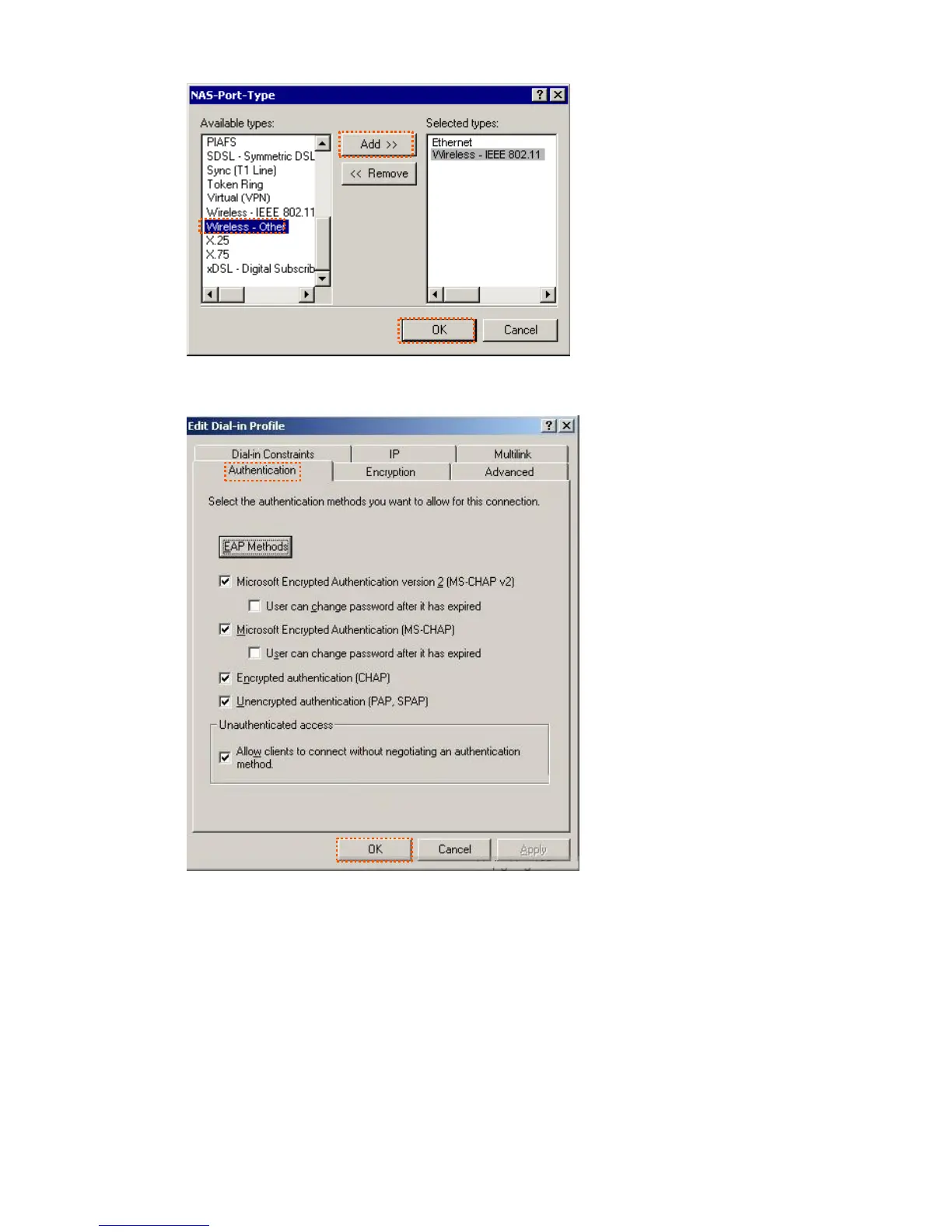

13.
Click
Edit Profile
, click the
Authentication
tab, configure settings as shown in the followi
ng f
igure, and
click
OK
.
14.
When a message appears, click
No
.
Step 3
Configur
e use
r inf
ormation. Create a user and add the user t
o group
802.1x
.
----End
