115

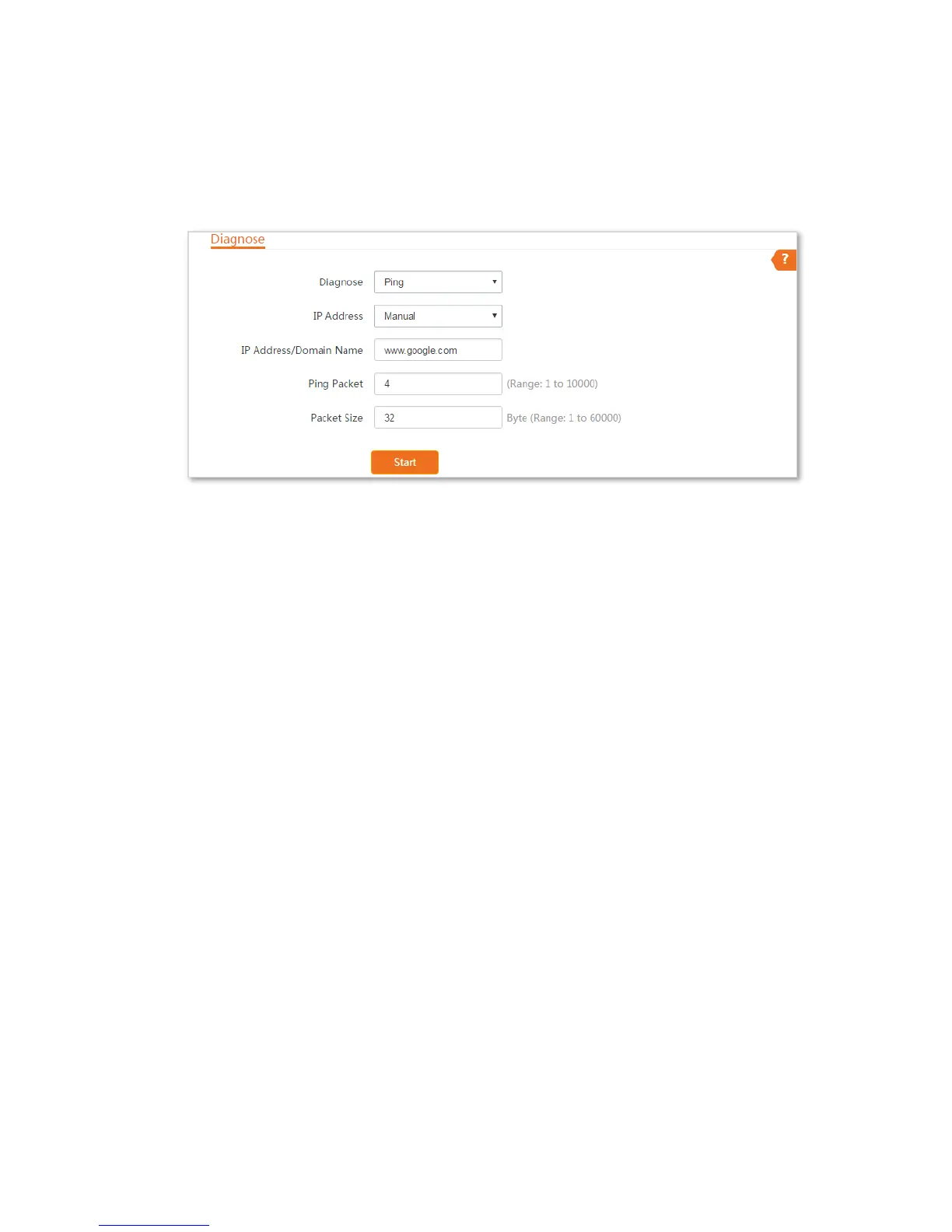

Step 3
Set
IP Address
to
Manua
l
.
Step 4
Enter an IP addr
ess or a domain name, which is
www
.
google.com
in this ex
ample.
Step 5
Enter a number of pack
ets tr
ansmitted by ping.
Step 6
Enter the siz
e of pack
et transmitted by
ping.
Step 7
Click
Start
.
----End
