Tenda O1 User Manual

126
 Service port (internal port) of the web server in LAN:80
 External port that this device enables for internet devices: 80
 WAN IP Address of the CPE: 202.105.11.22

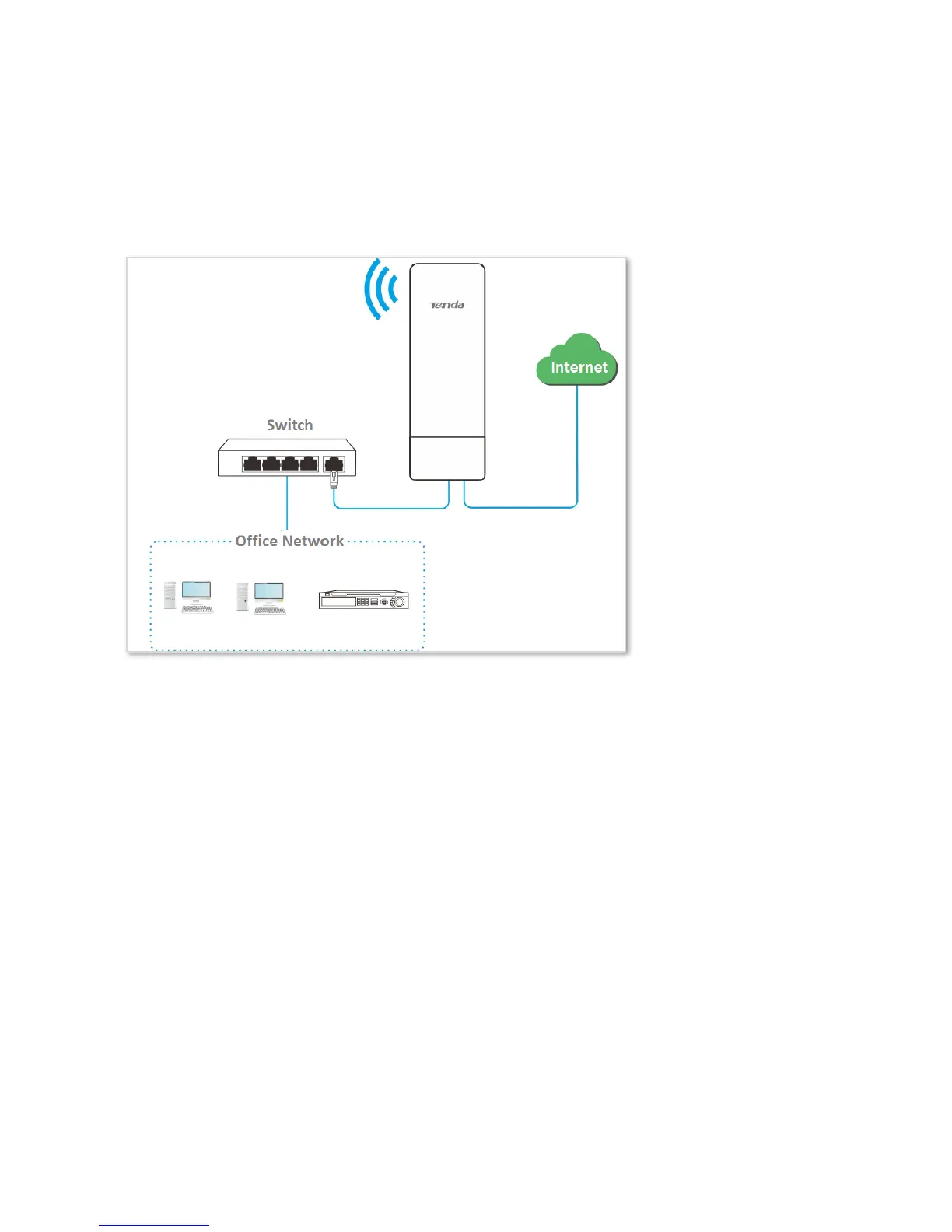

Network Topology
Configuration Procedure
Step 1 Log in to the web UI of the CPE which works in Router mode.
Step 2 Choose Advanced > Port Forwarding.
Step 3 Enter the IP address of the web server in the Internal IP Address box, which is 192.168.2.100 in this
example.
Step 4 Enter 80 and 80 on the Internal Port and External Port boxes respectively.
Step 5 Select TCP&UDP from the dropdown list of Protocol.
Step 6 Select HTTP from the dropdown list of Application.
Step 7 Click Add.
Web Server
IP Address: 192.168.2.100
CPE in Router mode

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
