Appendixes

119

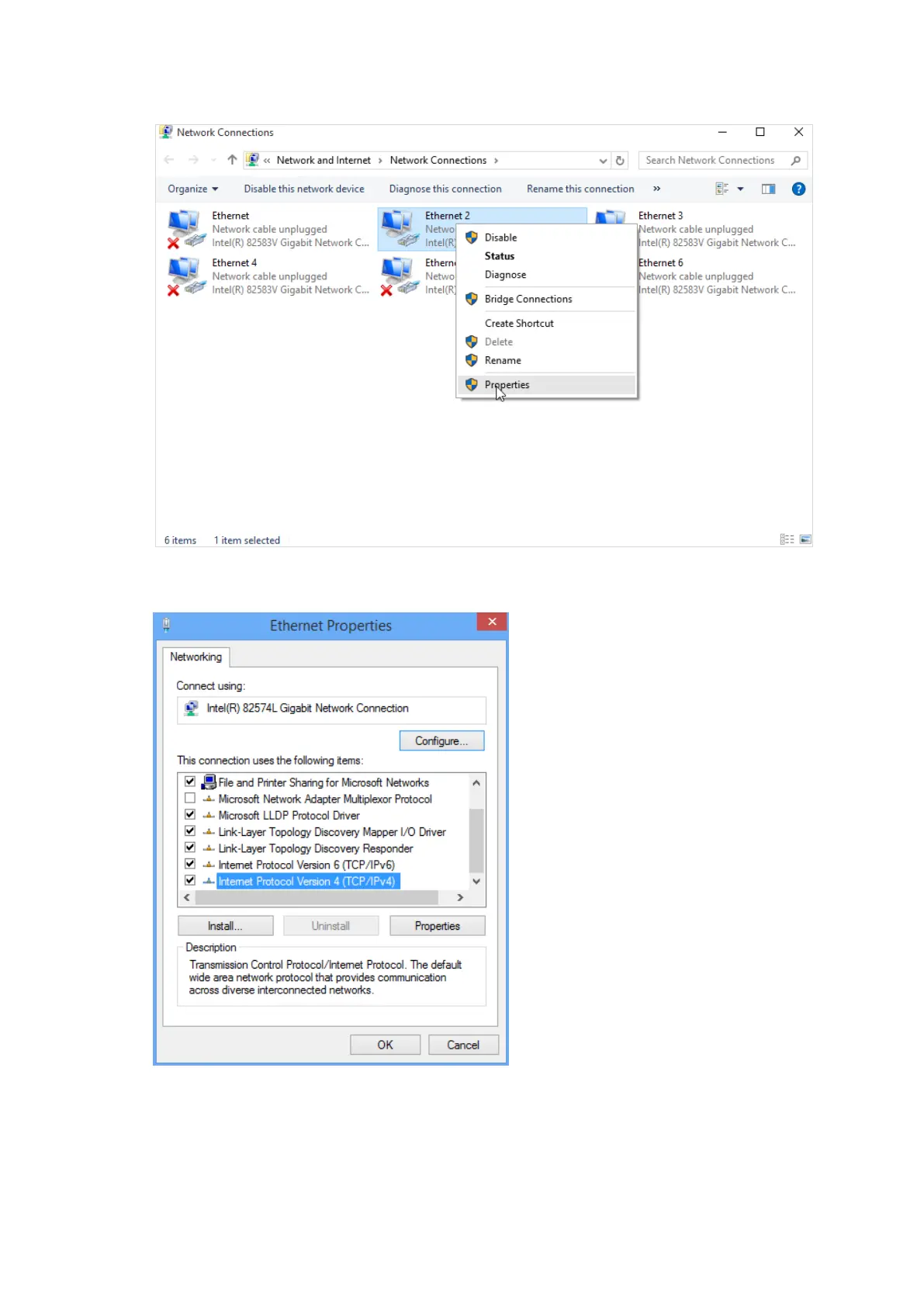

Step 3 Right-click on the connection in use, and then click Properties.

Step 4 Double-click Internet Protocol Version 4 (TCP/IPv4) or Internet Protocol Version 6

(TCP/IPv6).
