User Guide
7

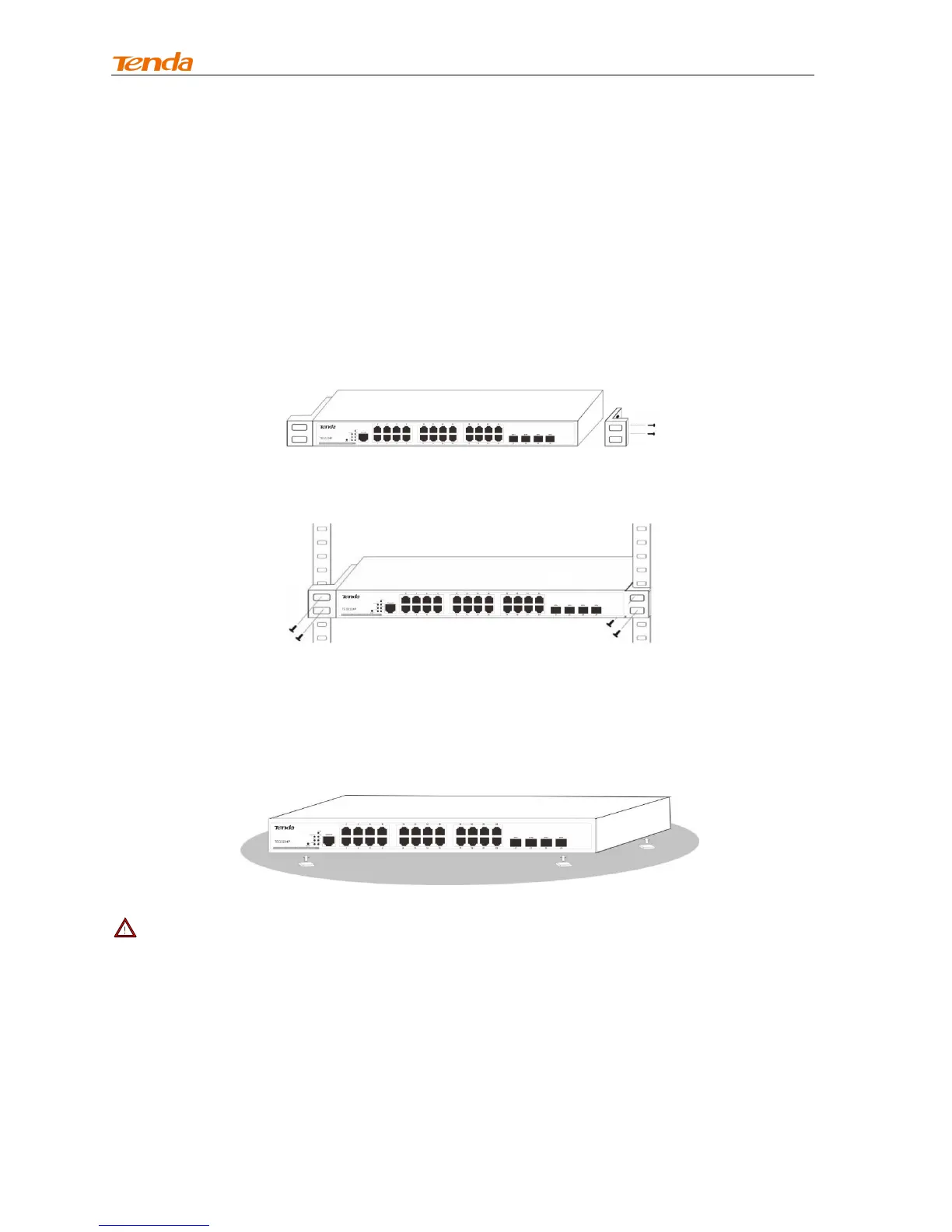

Chapter 2 Installation
The smart switch can be installed on a flat surface or in a standard 19-inch rack.
2.1 Installing the Switch in a Rack
To install the switch in a rack, observe the following procedures. To perform this procedure, you need the
19-inch rack-mount kit supplied with switch.
1. Keep the kit well-earthed and stable;
2. Insert the screws provided into the bracket mounting holes to fix brackets onto the switch as shown
below.
Figure 2-1 Attach L-shaped brackets to the switch
3. Tighten the screws with the Phillips screwdriver to secure the switch in the rack.
Figure 2-2 Install the switch in the rack
2.2 Installing the Switch on a Flat Workbench
If a standard 19-inch rack is not available, place the switch on a clean, flat workbench. Attach the 4
footpads to corresponding position of the switch bottom to avoid potential sliding and vibration, and
ensure good ventilation and proper clearance around the switch for heat dissipation. See figure below:
Figure 2-3 Paste footpads to the bottom of the switch
Note-------------------------------------------------------------------------------------------------------------------------------
1. Please keep the switch in a dry and well ventilated environment.
2. Keep the workbench stable and well-earthed.
3. Do not restrict airflow by covering or obstructing air inlets of the switch. Keep more than 10 centimeters
free on all sides for cooling. Be sure there is adequate airflow in the room or wiring closet where the
switch is installed.
4. Don’t put heavy articles on the Switch.
5. Make sure there is more than 1.5 centimeters vertical distance free between devices that stack each
other.
-------------------------------------------------------------------------------------------------------------------------------------------
