User Guide
1
Chapter 1 Product Overview
1.1 Overview
Thank you for purchasing this product. This 24-port Smart Gigabit PoE Switch provides 24
10/100/1000Mbps auto-sensing RJ45 ports, 4 1000Mbps Combo (copper/fiber) ports and one Console
port. All its RJ45 ports are PoE-capable and it can connect up to 24 IEEE 802.3af-compliant PDs (15.4W)
or up to 12 IEEE 802.3at-compliant PDs (30W). In addition, it supports VLAN, QoS, DHCP, IGMP
snooping, ACL, STP, RSTP, MSTP, port mirroring, link aggregation and other features. Aiming at solving
the safety problems in LAN, it provides user management classification, management VLAN, ARP attack
defense, worm attack defense, DoS attack defense, MAC attack defense, IP+MAC+PORT+VLAN Bind,
MAC filter and other safety settings through visual WEB interface operations. With high performance and
low cost, it is ideal for hotels and enterprises.
1.2 Physical Description

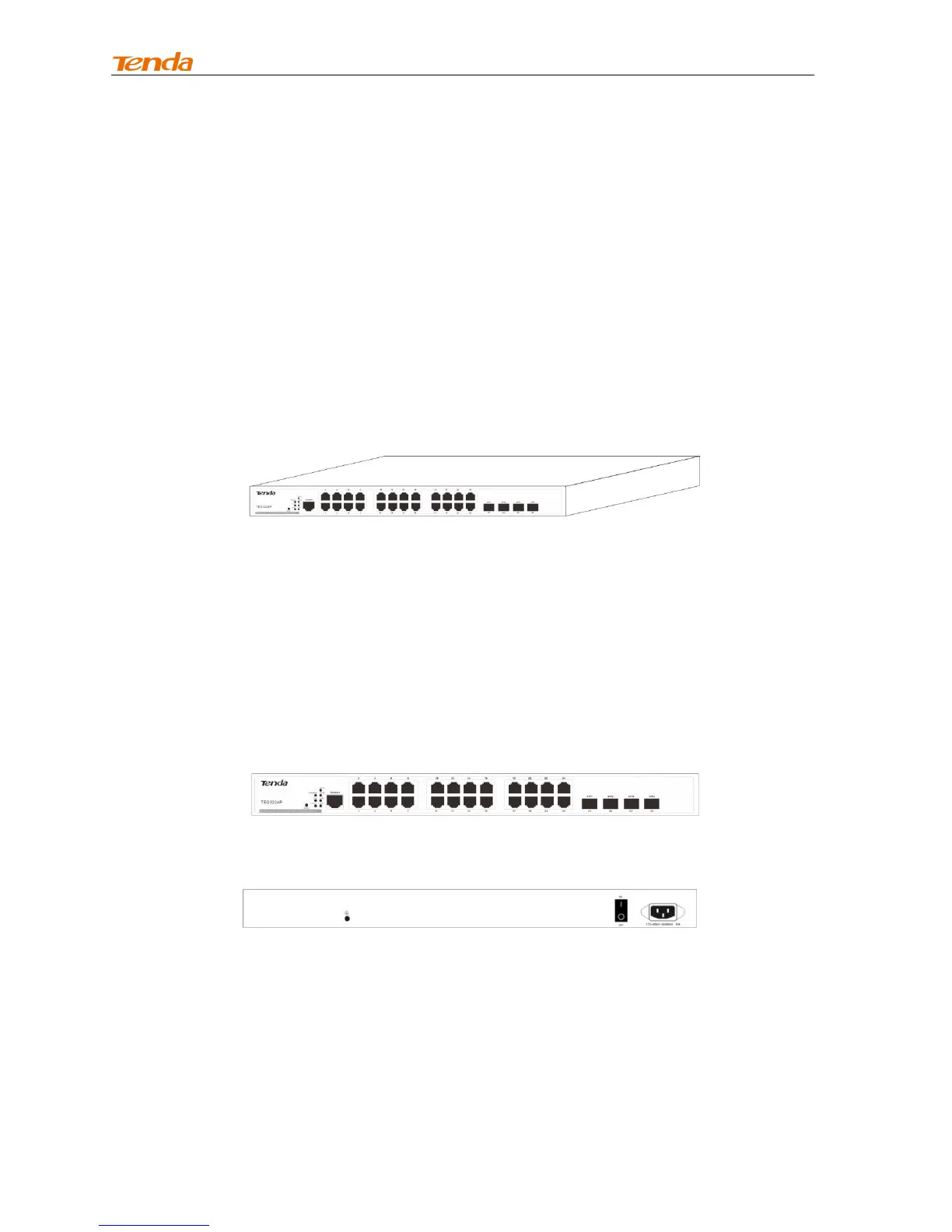

Figure 1-1 Outside View
1.2.1 Front Panel
The front panel contains the following:
• 24 10/100/1000Mbps RJ45 ports
• Four SFP ports
• One Console port
• Reset button
• Port LEDs
• System LEDs
• PoE-MAX LED
Figure 1-2 Front Panel
1.2.2 Back Panel
Figure 1-3 Back Panel
• A grounding stud for lightning protection;
• A 176-264VAC 50/60 Hz 6A power receptacle for accommodating the supplied power cord;
• A power switch for turning on/off power supply;
1.3 Specifications
1.3.1 Hardware Specifications
