User Guide
9
If the device supports AC power supply, you can connect it to the grounding bar through the PE line of the
AC power and ensure the PE line in the switchgear room or beside the AC power supply transformer is
well-grounded.

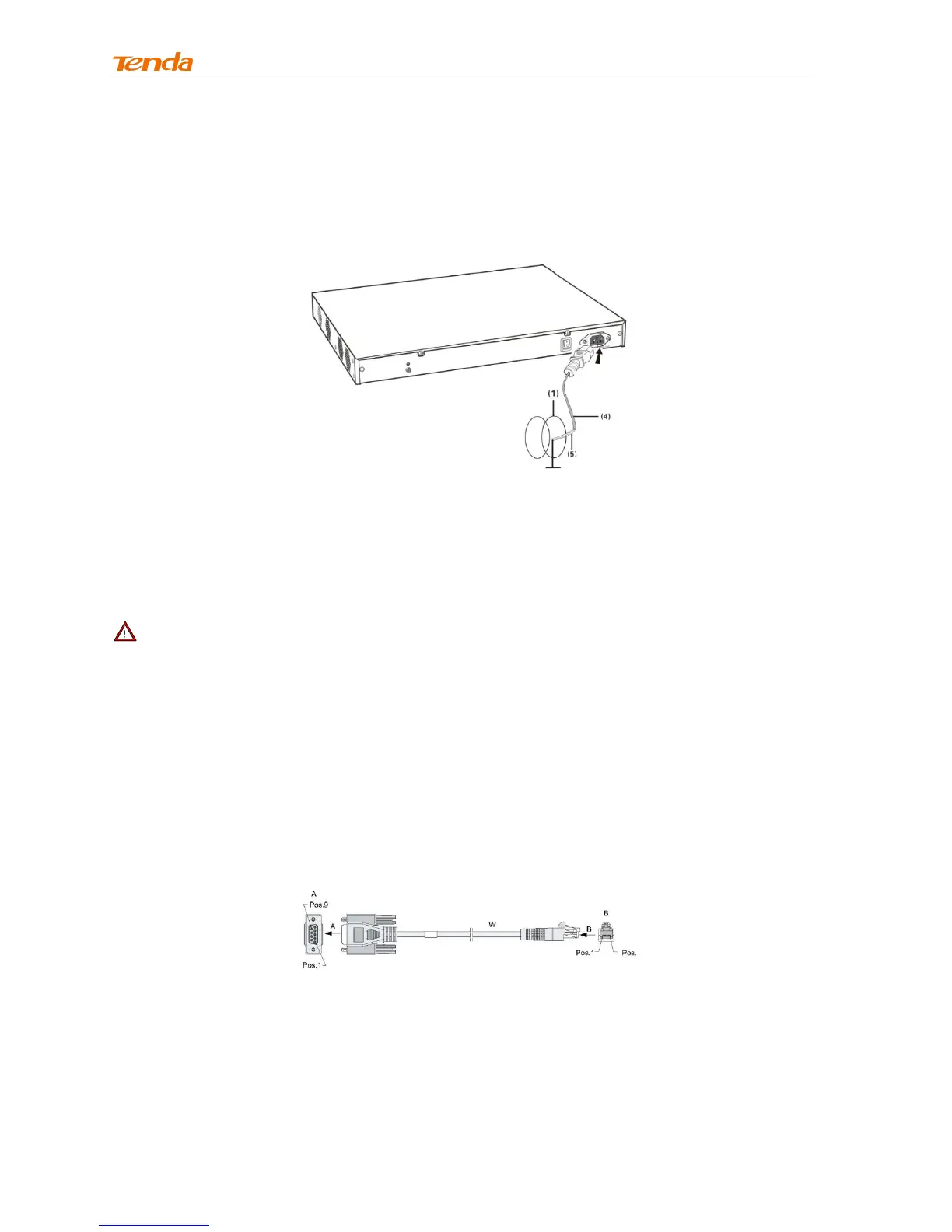

Figure 2-6 Connect to ground through the PE cable of the AC power socket
2.4 Connecting the power cord
Step1: Connecting one end of the included power cord to the switch and the other end to a nearby AC
power outlet.
Step2: Verify the power LED on switch's front panel. An illuminated light indicates a proper power
connection.
Note-------------------------------------------------------------------------------------------------------------------------------
As for the power cord, different countries have different standards. Please determine whether to install the
card slot to fix the power cord according to the actual situation.
-------------------------------------------------------------------------------------------------------------------------------------------
2.5 Connecting to Interface Cable
2.5.1 Connecting to Console Port
Follow below steps to connect the PC or terminal to the switch (The terminal can be the emulation
program with RS232 console or a PC. Here take the PC for example):
1. Connect the DB9 plug on the console cable to the PC;
2. Connect the RJ45 connector to the console port on the switch.
Figure 2-7 Console port connection
2.5.2 Connecting to RJ45 ports
The switch provides auto MDI/MDIX feature on each RJ45 port. PCs or other terminals can simply
connect to any such ports of the switch via CAT.5, CAT.5e, UTP or STP cables.
1. Connect one end of the Ethernet cable to the Ethernet interface on the switch and the other end to
