User Guide
43

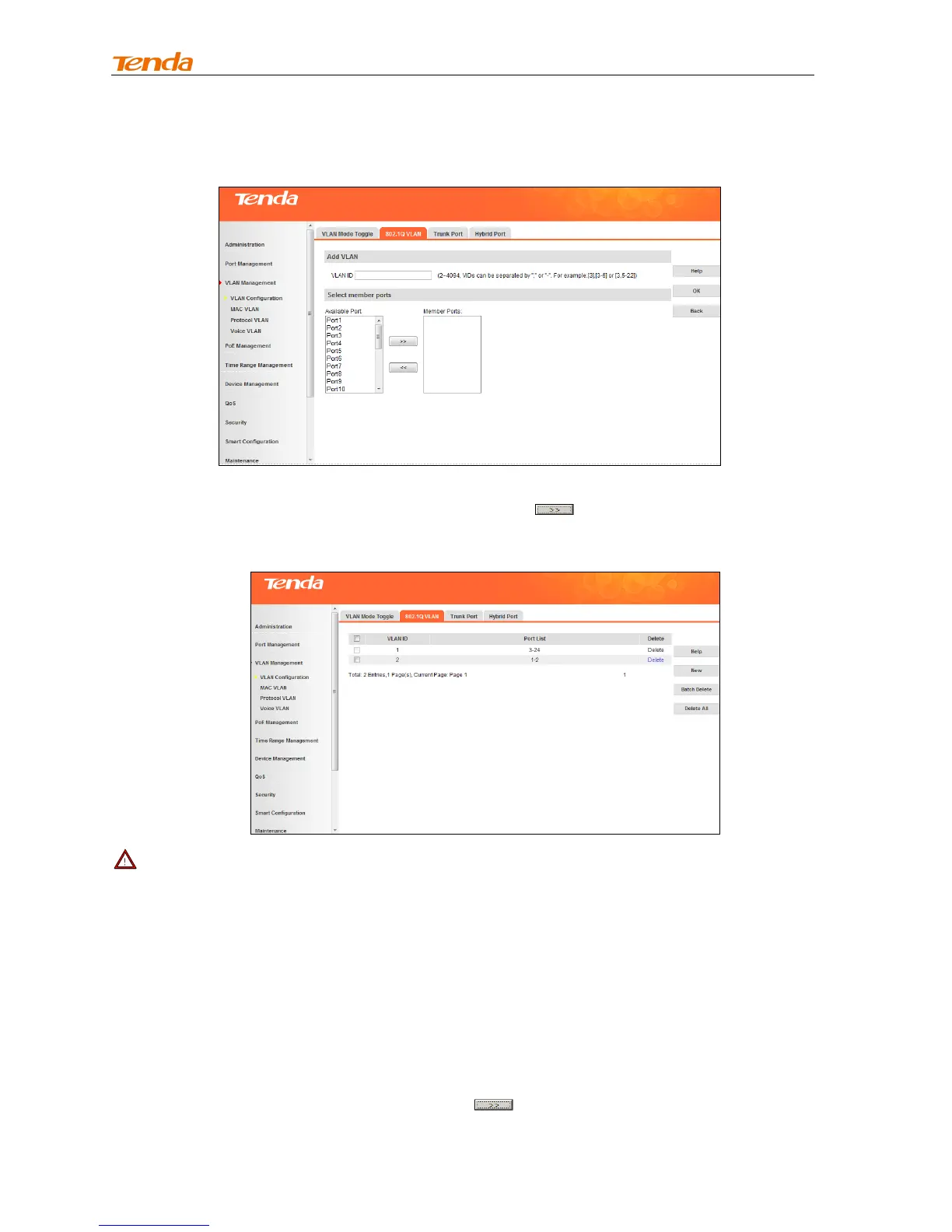

Click New to enter below screen:
1. Enter 2 in VLAN ID field.
2. Select port1 and port2 from Available Port and click to move them to Member Ports.
3. Click OK and below screen will be displayed.
Note-------------------------------------------------------------------------------------------------------------------------------
1. Available values for VLAN ID range from 2 to 4029. You can config multiple VLANs by entering "x-x" in
the VLAN ID field (where x represents any number between 2 and 4029). For example, "1-10" indicates
10 QVLANs while "1, 10" indicates 2 QVLANs.
2. Up to 128 QVLANs can be added.
3. By default, all ports belong to QVLAN1.
4. When a VLAN ID is deleted, ports of this VLAN ID will belong to 802.1Q VLAN1 automatically.
-------------------------------------------------------------------------------------------------------------------------------------------
Add/delete an access port
1. Click the VLAN ID of 2.
2. Select port3 from Available Ports and click .
To Next Page
