IF THE COUNTERWEIGHT PUSH BUTTON IS
PRESSED ON A CRANE THAT DOES NOT
HAVE COUNTERWEIGHT OPTIONS, THE
MESSAGE
“NO OTHER COUNTERWEIGHT
OPTIONS”
WILL APPEAR IN THE
INFORMATION DISPLAY. REFER TO YOUR
CRANE RATING MANUAL
FOR DETAILS OF
THE OPTIONS ON YOUR CRANE
On cranes that have counterweight options the
operator must tell the MicroGuard
®
System
which counterweight is currently fitted. If there
are no options, continue on to selection of
outriggers.
Start the choice by pressing the
counterweight
push button
(item 20).

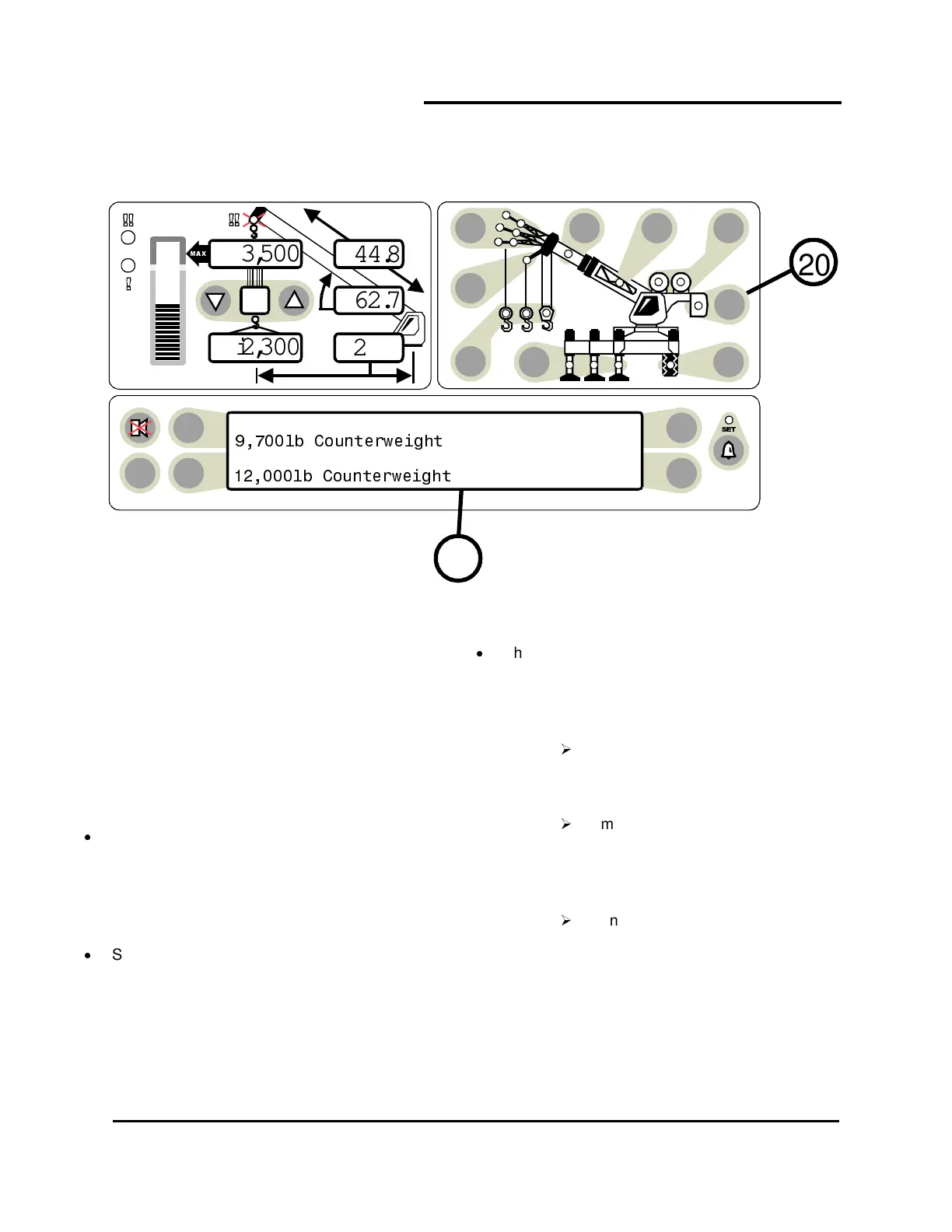

The available counterweight options will be
displayed in the information screen (1). There
can be four options displayed at a time, one next
to each selection key.
If the required option is visible,
select the option by pressing the
button next to it.
If more than 4 options are available,
a second selection screen can be
viewed by pressing the button next
to the "next" label.
If only a single option is available, it
will automatically be selected.
!"#$%&$'( )#
TEST
6
23,500
i2,300
44.8
62.7
26.4
1
20
*+ !"#$%&$'()#
