TEREX RCI 510 RATED CAPACITY INDICATOR OPERATOR'S MANUAL TEL:(714) 259-9702 FAX:(714) 259-7626
14 of 35
IF THE TIRE PUSH BUTTON IS PRESSED ON
A CRANE THAT DOES NOT HAVE TIRE
OPTIONS THE MESSAGE
“NO OTHER TIRE
OPTIONS”
WILL APPEAR IN THE
INFORMATION DISPLAY. REFER TO YOUR
CRANE RATING MANUAL FOR DETAILS OF
THE OPTIONS ON YOUR CRANE.
On cranes that have more than one tire
option, e.g. static, creep etc., the operator
must select the tire configuration that
corresponds to the tire chart to be used.
Start the choice by pressing the
tire push
button
(item 21).

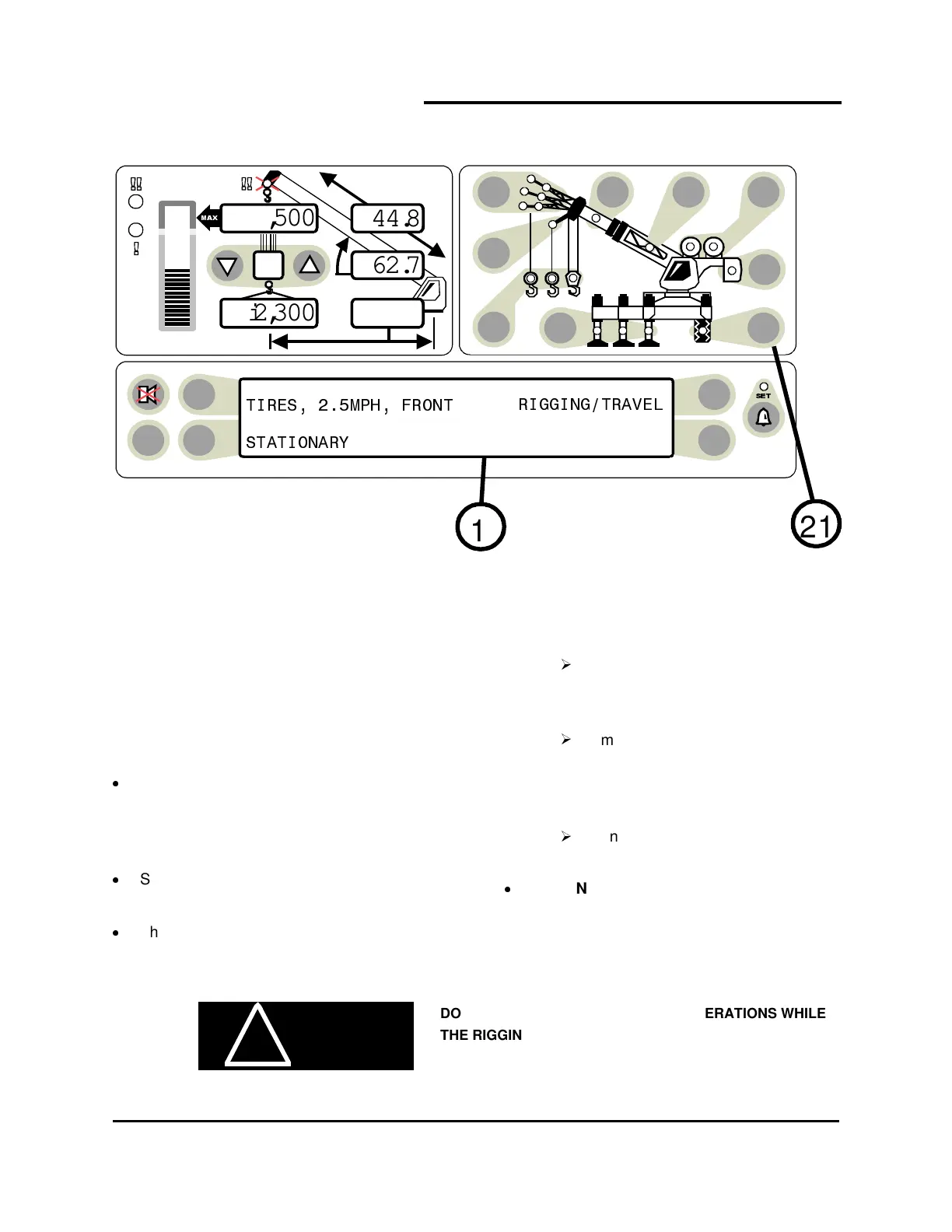

The available tire selection options will be
displayed in the information screen (item 1).
There can be four options displayed at a
time, one next to each selection key.
If the required option is visible,
select the option by pressing the
button next to it.
If more than 4 options are available,
a second selection screen can be
viewed by pressing the button next
to the "next" label.
If only a single option is available, it
will automatically be selected.
RIGGING/TRAVEL MODE
is selected when
the crane is in the rigging process or is a
rough terrain crane traveling between jobs.
TEST
6
23,500
i2,300
44.8
62.7
26.4
1
21
O NOT PERFORM CRANE LIFTING OPERATIONS WHILE
HE RIGGING/TRAVEL MODE IS SELECTED.
LL CRANE CONTROLS REMAIN ACTIVE WHILE THE
RIGGING/TRAVEL MODE IS SELECTED.
WARNING
