5-7 TA9 & TA10 Dumper 0803-2 November 2009
Description
Battery Isolator
The battery isolator serves both as a maintenance aid and Anti-
Vandalism device.
When carrying out any maintenance on the machine, the battery
isolator key must be removed to prevent the engine from being
started or the electric circuit being activated.
When parking or leaving the machine, remove the battery
isolator key to prevent unauthorised people from using or
stealing the machine..

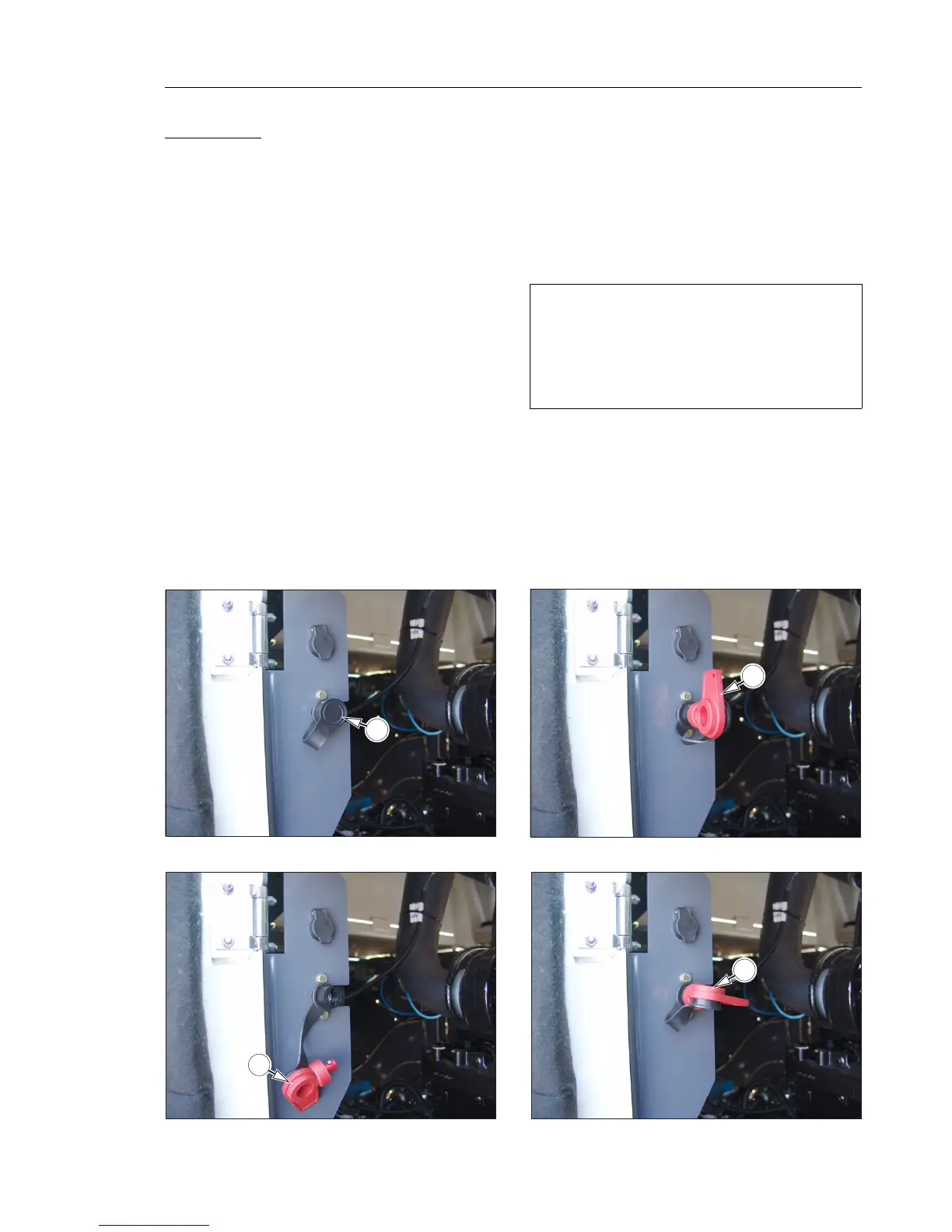

When the isolator key (B) is not being used, the rubber cap (A)
should be used to cover the switch.
When the isolator key is to be used, the rubber cover should be
inserted into the side of the key
.
The isolator key is inserted into the switch with tag vertical (C).
Turning the isolator key clockwise to position (D), allows the
battery to supply power to the machine. When the isolator key
is in position (D) the machine may be used normally.
It is accessible through left hand engine canopy door.
b
Before performing maintenance tasks on the machine,
turn isolator key to the (OFF) vertical position (C) and
remove key from the isolator switch. The engine cannot
be started.
Disconnect battery before major maintenance work.
