5-17 TA9 & TA10 Dumper 0803-2 November 2009

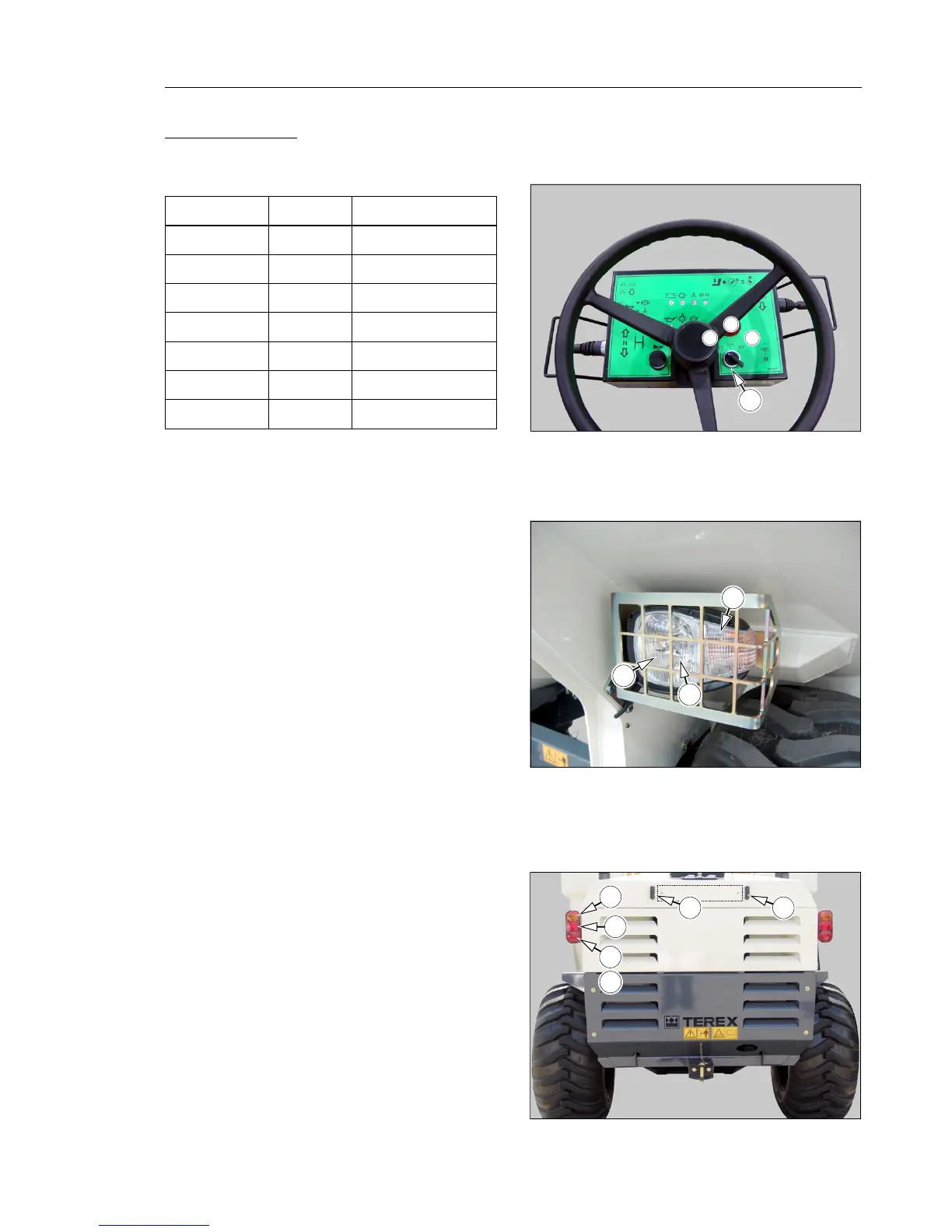

Description
Road Traffic Lighting
A 3 position switch (A) Controls the side and head lights.
Brake Lights
The brake light switch is activated when the brake pedal is
pushed down, this illuminates the brake lights (4).
When the pedal is released the brake light switch is de-activated
and the brake lights (4) are extinguished.
Number Plate Lights
If full lighting is fitted, lights (1a) are provided for illuminating
the vehicle rear registration plate.
Full Lighting
Switch Position Lamp Description
0 0OFF
1 1 Side Light
1 1a Rear Number Plate Light
2 2 Head Light
Indicator Switch 3 Indicator Light
Brake Switch 4 Brake Light
- 5 Reflector
0515-062b
1
0
2
A
0515-066a
3
2
1
1a
1a
5
3
1
4
0515-115a
