9-3 TA9 & TA10 Dumper 0803-3 December 2010
Maintenance
b Working Under A Raised Skip
NEVER work under, or in front of, a raised skip unless skip
props have been fitted.

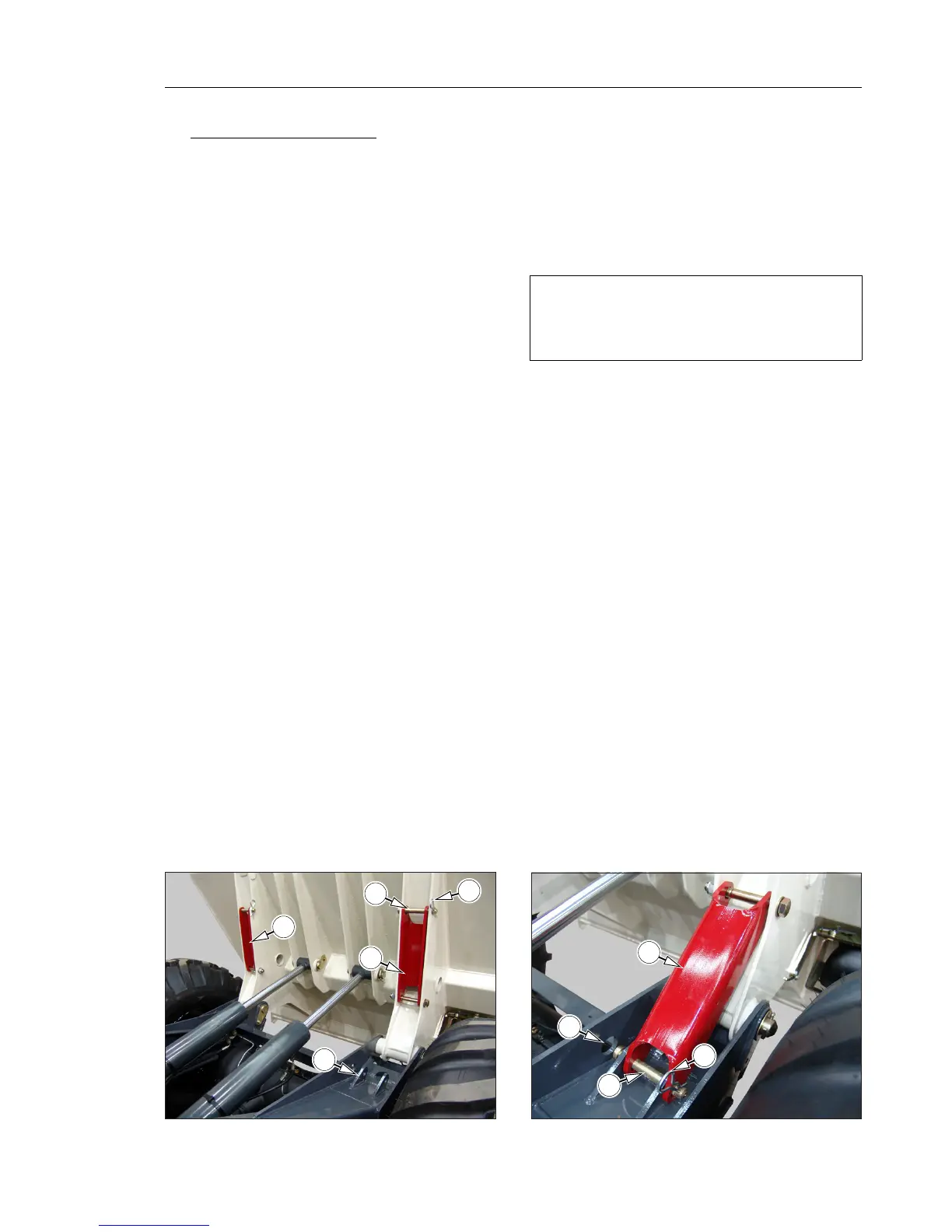

Fitting Skip Props
• Once the skip has been fully elevated, remove the upper grip
clips (C) from both skip prop pins (B) in turn.
• Remove pins (B) and allow props (A) to swing downwards
and enter the lock positions (D) on the front chassis.
• Position the pins (B) through the holes in the front chassis
(E) and through the corresponding holes in the props (A).
When pushed fully through, push the grip clips (C) securely
through the locking pins (B).
Removing Skip Props
• Remove the grip clips (C) from the locking pins (B).
• Remove the pins (B) from the props and chassis.
• Raise the props (A) to the storage position on the skip.
• Secure in place with pins (B) and Grip clips (C).
b
Before Attempting to Carry out Any Work Under a Raised
Skip, the Skip Props Must be Placed in LOCKED Position.
