TA9 & TA10 Dumper 0803-2 November 2009 5-20

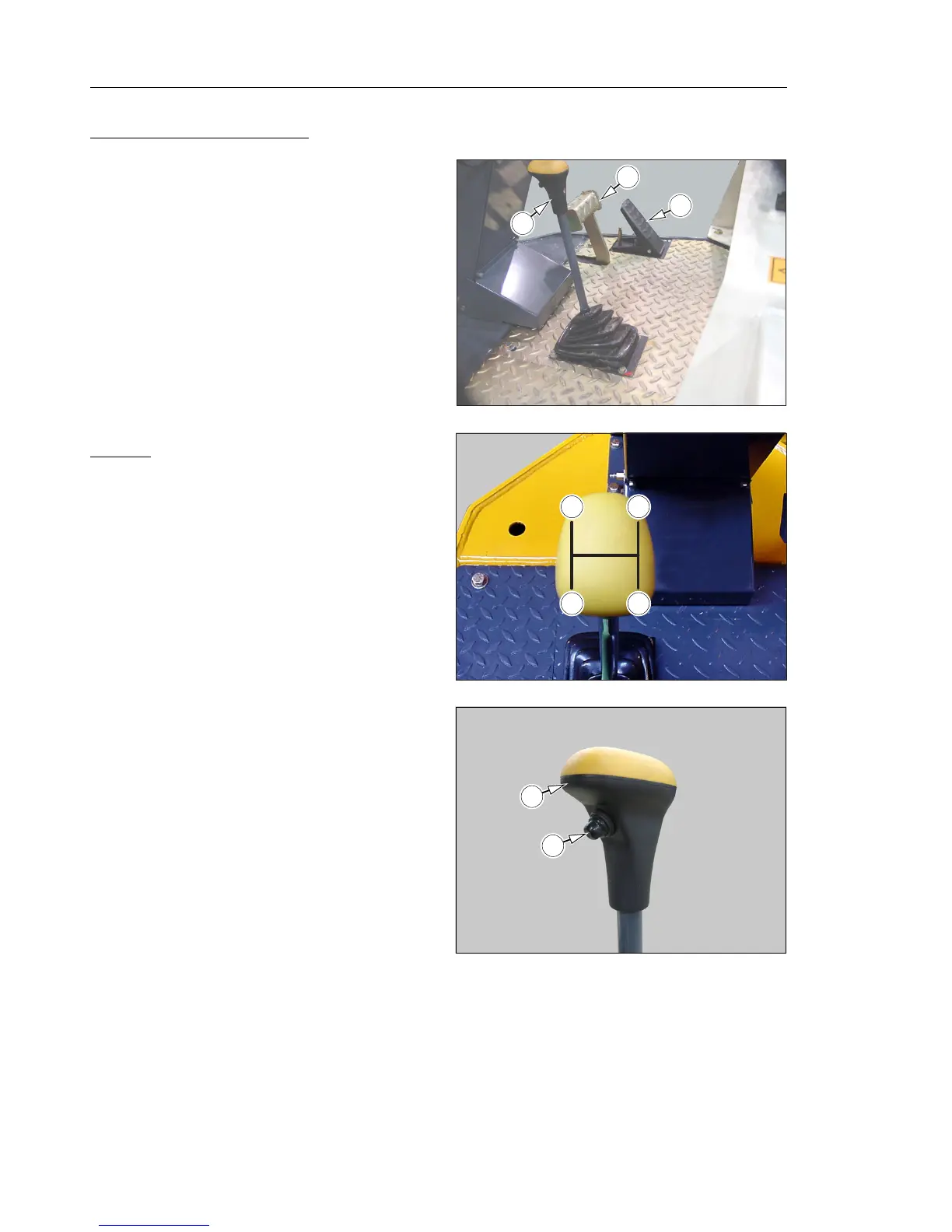

Foot Brake and Accelerator Pedals
The range of dumpers have a common driving position and
controls for all models.
The driver is centrally positioned. The footbrake (A) and
accelerator (B) pedals are located in standard automotive
format.
Note: There is no clutch pedal fitted to this machine.
Gearlever
The gearlever (C) allows any of the gearboxes 4 speed ratios to
be selected. The lever moves in a conventional H pattern.
An interrupt button (D) on the gear lever knob (E) is depressed
and held while changing gear. This button is the equivalent of a
clutch pedal on a conventional dumper.
0803-5-009
B
A
C
0515-050a
4
2
3
1
0515-051b
D
E
