Maintenance
TA9 & TA10 Dumper 0803-3 December 2010 9-12
Hydraulic System
Hydraulic Oil Level - Checking

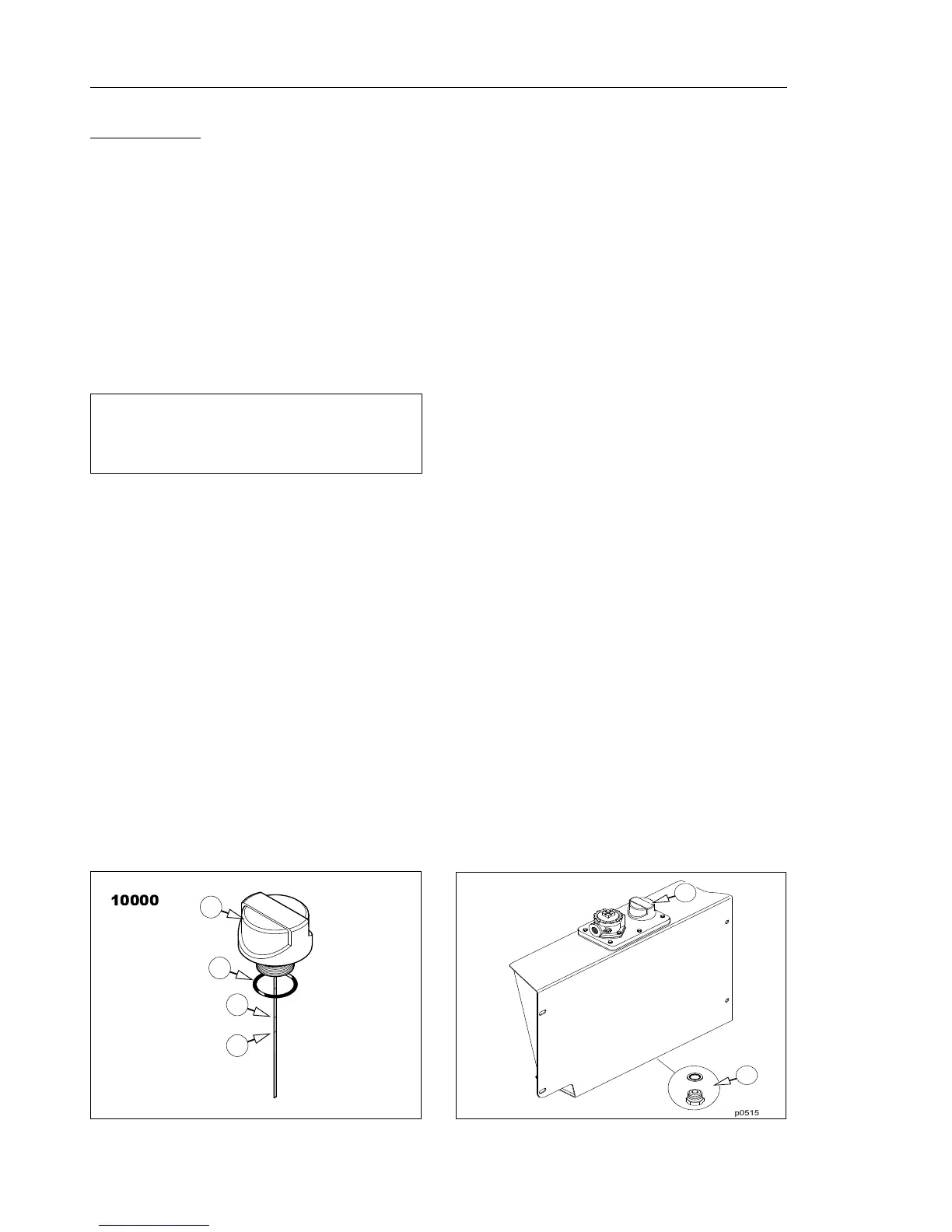

To check the hydraulic oil level,
• Stop the engine and unscrew the dipstick/breather (A) and
remove from the tank. Do not lose the sealing ring (B).
• Wipe all traces of oil from the dipstick (A) with clean paper
and replace.
• Remove the dipstick (A) again and check the position of the
oil level.
• There are two marks Max (C) and Min (D) on the dipstick,
never allow the oil level to go below the Minimum mark -
Min (D) or above the Maximum mark - Max (C).
Hydraulic Oil - Adding
When adding oil,
• Ensure a clean container and clean, fresh, new oil is used.
•See Lubrication Schedule in this manual for correct grade of
hydraulic oil.
• Remove the filler/dipstick (A). Pour new oil through the
filler/dipstick (A) hole.
• Use the dipstick (A) to check the level frequently, until oil
level is at the upper mark Max (C) on the dipstick.
b
Always Position Machine on Firm, Level Ground when
Checking Fluid Levels
