7-5 TA9 & TA10 Dumper 0803-3 December 2010
Operating Instructions
Operators Seat - Milsco
The seat is adjustable for Operator comfort. The adjustments
allow the seat to be moved forwards and backwards, the back of
the seat may be tipped forwards and backwards and the seat
suspension may be adjusted to the weight of the Operator.

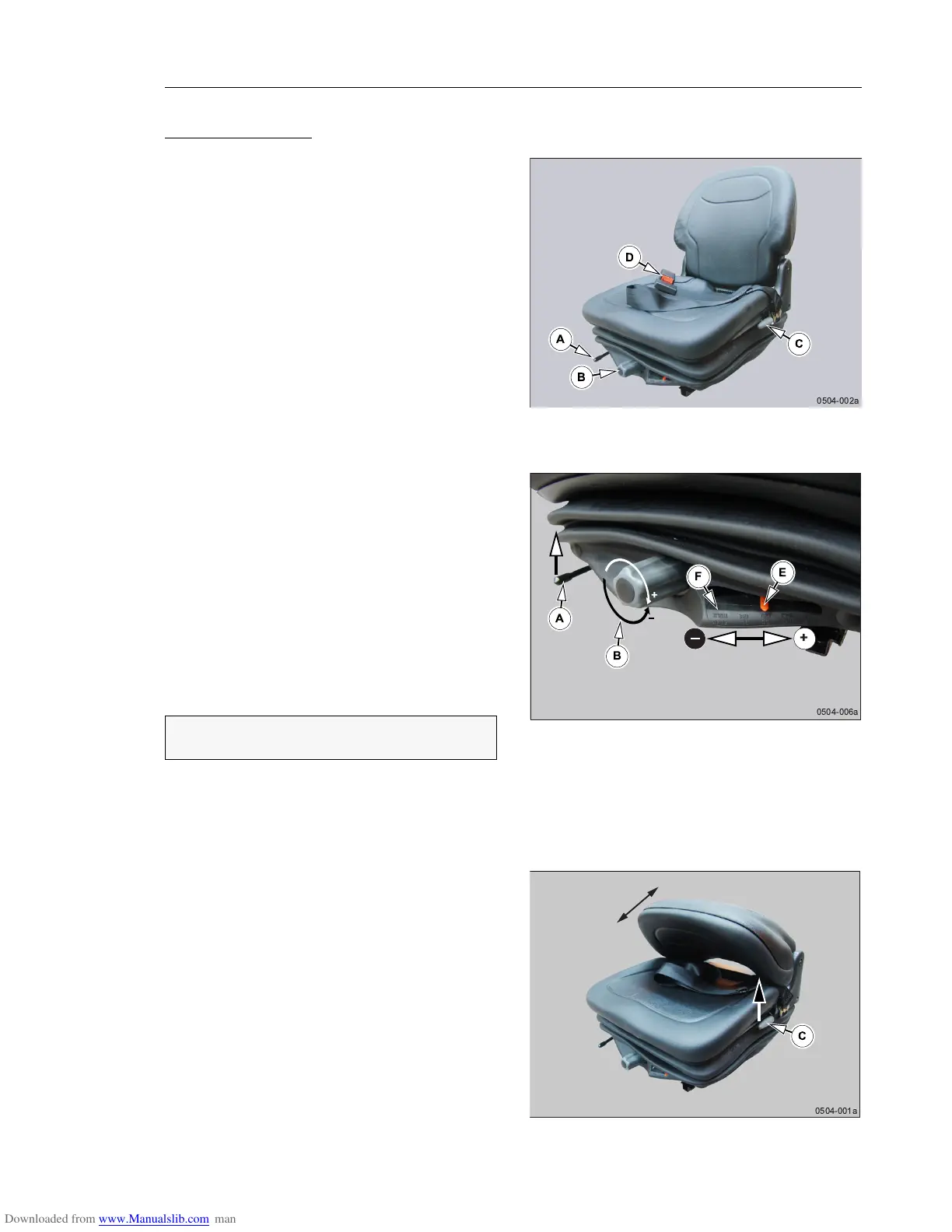

Seat Controls
A - Fore and aft movement.
B - Weight adjustment.
C - Back rest angle adjustment.
D - Seat belt.
Fore and Aft Movement
Lifting lever (A) allows the seat to be move forwards or
backwards to suit the leg length of the Operator.
When the lever (A) is released the seat is locked in the selected
position.
Weight Adjustment
This control is used to adjust the seat characteristics to the
weight of the Operator.
Turning knob (B) clockwise adjusts the seat for the larger
person and anticlockwise for the smaller person.
When the knob (B) is turned, the pointer (E) moves to allow the
Operator to select the correct weight from the scale (F)..
The engine will not stop when the Operator leaves the seat.
Back Rest Angle Adjustment
Lifting lever (C) allows the back of the seat to be pushed
forwards or backwards to suit the preference of the Operator.
When the lever (C) is released the seat is locked in the selected
position.
The Engine will not start unless Operator is sitting on the
Operators Seat.
