Terex TA10 User Manual

5-11 TA9 & TA10 Dumper 0803-2 November 2009
Description

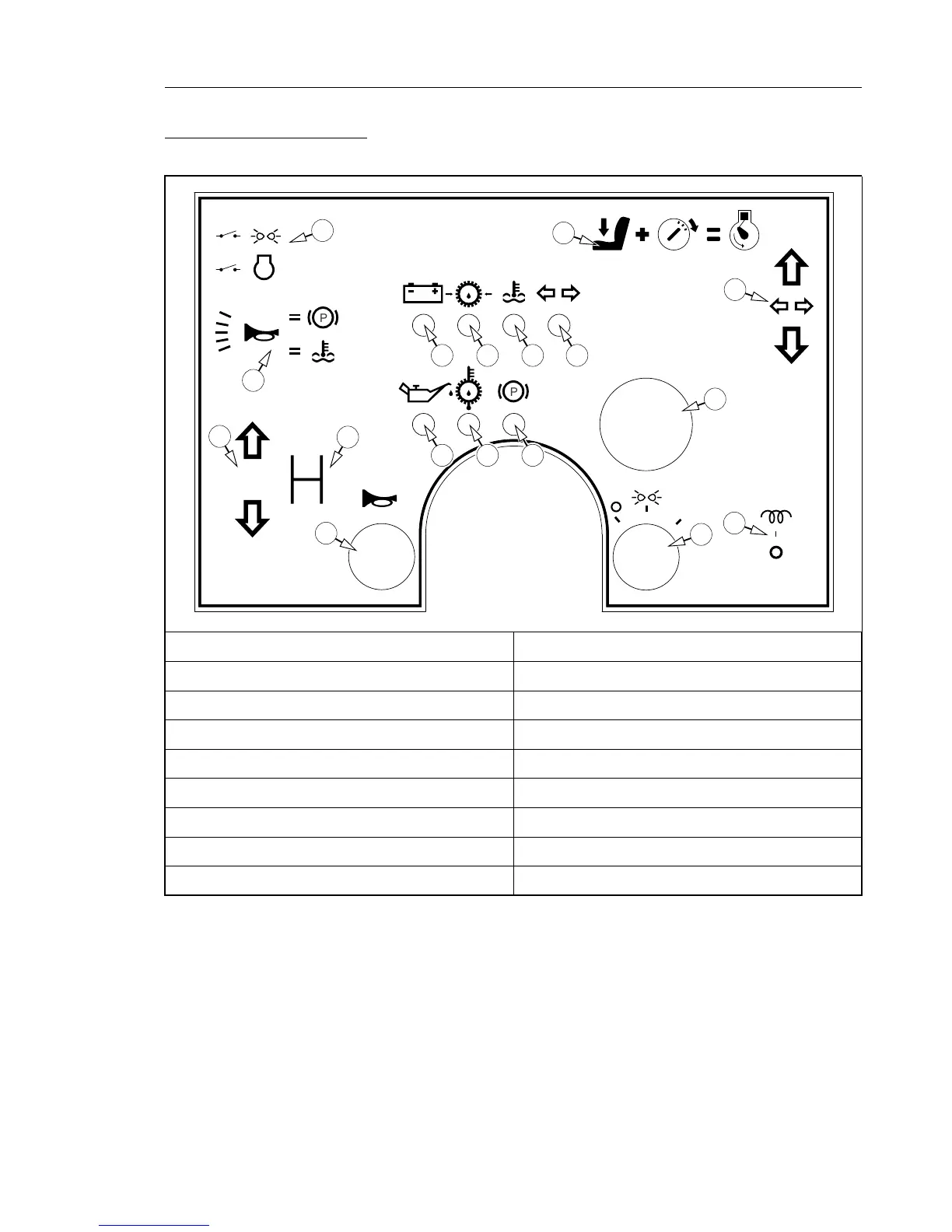

Dash Decal - Road Traffic Lights
A - 30A/20A Circuit Breakers J - Warning Light - Transmission Oil Pressure
B - Instruction - Parking Brake / Coolant Temp. Audible Warning K - Warning Light - Engine Water Temperature
C - Instruction - Forward/Reverse Switch L - Warning Light - Direction Indicators
D - Instruction - Gear Lever Positions M - Instruction - Start Inhibitor
E - Horn Button N - Instruction - Indicator Switch
F - Warning Light - Engine Oil Pressure O - Switch - Hazard Warning Lights
G - Warning Light - Transmission Oil Temperature P - Switch - RTA Machine Lighting
H - Warning Light - Handbrake ‘ON’ Q - Instruction - Engine Start Key Switch
I - Warning Light - Battery Charge
