Terex TA10 User Manual

5-9 TA9 & TA10 Dumper 0803-2 November 2009

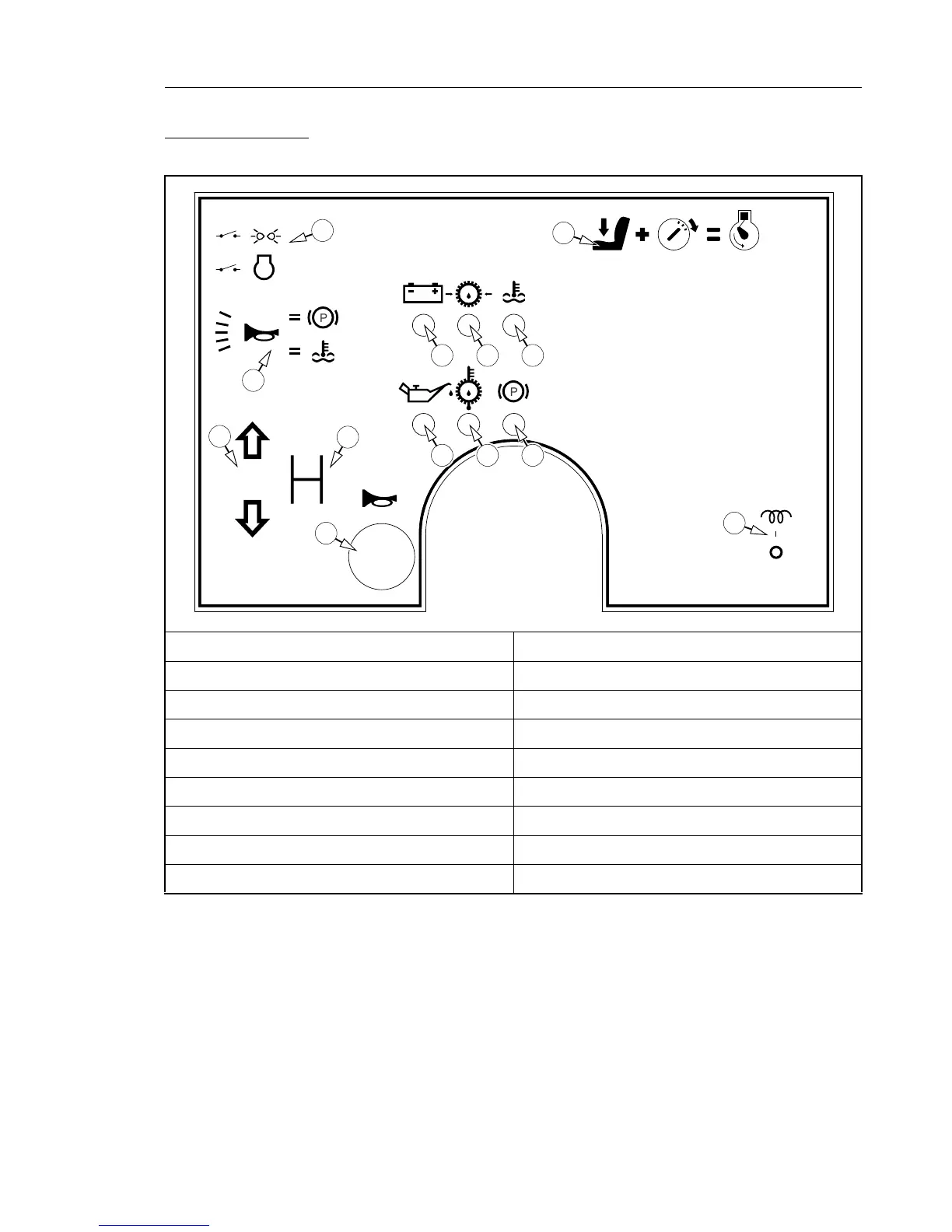

Description
Dash Decal - No Lights
A - 20A Circuit Breaker - Engine H - Warning Light - Handbrake ‘ON’
B - Instruction - Parking Brake / Coolant Temp. Audible I - Warning Light - Battery Charge
C - Instruction - Forward/Reverse Switch J - Warning Light - Transmission Oil Pressure
D - Instruction - Gear Lever Positions K - Warning Light - Engine Water Temperature
E - Horn Button M - Instruction - Start Inhibitor
F - Warning Light - Engine Oil Pressure Q - Instruction - Engine Start Key Switch
G - Warning Light - Transmission Oil Temperature
N
III
20A
30A
P
P
24
3
1
8002-2666
A
C
D
E
F
G
H
M
Q
I
J
K
B
