7-7 TA9 & TA10 Dumper 0803-3 December 2010
Operating Instructions
Folding ROPS

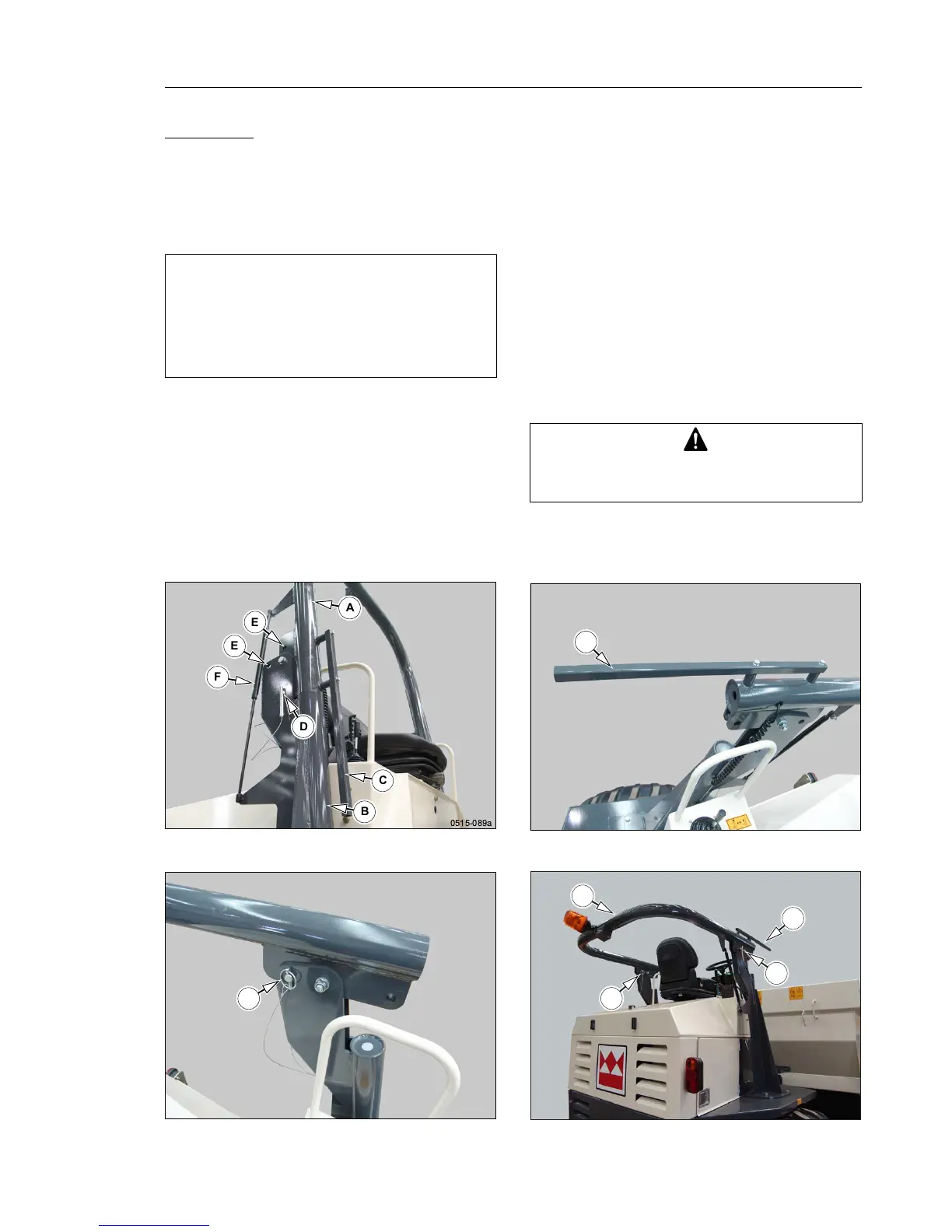

The optional Folding ROPS comprises of two sections (A&B)
and is pivoted at seat level to allow the ROPS section (A) to be
tipped backwards to reduce the transportation height - not the
working height.
Folding Procedure
• Ensure the machine is parked on firm, level ground.
• Remove the flashing beacon
• Remove both linch pins (G) and remove locking pins (D).
• Pull the handle (C) upwards, tipping ROPS section (A)
backwards, until holes (E-E) are in line.
• Fit locking pins (D) through holes (E) and refit linch pins
(G). The ROPS is now securely stored in transport position.
To re-instate the ROPS to its operational position reverse
the above procedure. A gas strut (F) is fitted to assist raising
the ROPS.
Ensure the locking pins (D) and linch pins (G) have been
refitted before using the machine.
b
Only Lower the ROPS when Transporting the Dumper on a
Lorry / Trailer etc.
Beware of trapping fingers etc. in ROPS pivot areas.
DO NOT use the machine when the ROPS has been
folded.
