Description
TA9 & TA10 Dumper 0803-2 November 2009 5-12

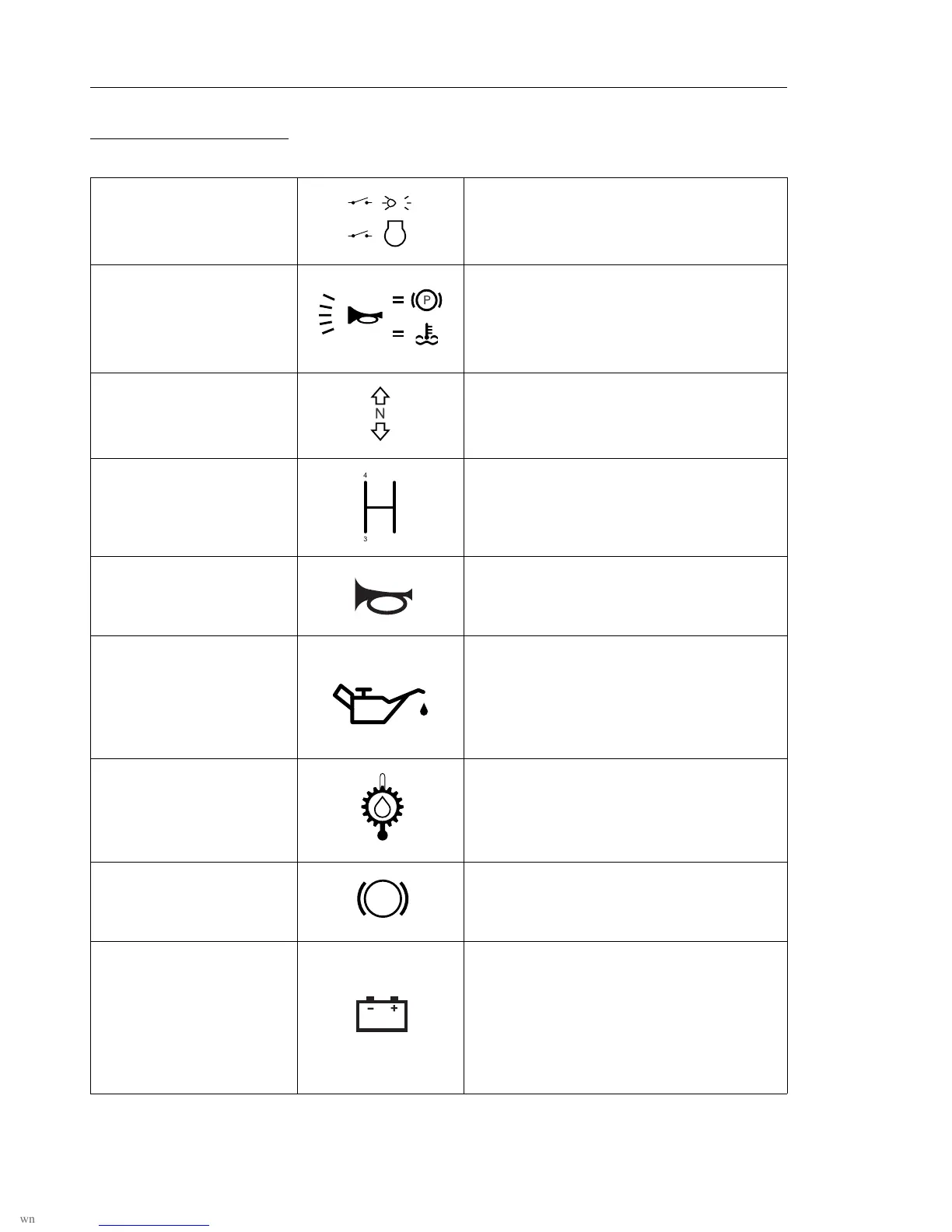

Dash Panel Symbol Description
A - Circuit breaker - Electric Circuit
A - 20A Engine Starter System
B - 30A Lights (if fitted)
Circuit breakers protect the machines electrical system.
B - Instruction - Audible Warning
Instructs if the audible warning sounds either the handbrake
has been left on or the engine coolant temperature has
reached an unacceptable high temperature.
If the cause is excessive engine coolant temperature -
STOP THE ENGINE IMMEDIATELY
Do not use the machine until the fault has been rectified.
C - Switch Instruction - Forward / Reverse
Positions
Indicates the direction to move the forward/reverse switch
from the neutral position to obtain the required direction of
travel.
D - Instruction - Gear Lever Positions
Instructs the operator to the position of the gearlever with
regards to the desired gear
E - Horn Button
The horn is used to warn others and should only be used for
this purpose. Excessive use may cause others to ignore a
genuine warning.
F - Warning Light - Engine Oil Pressure
This warning light will illuminate when the start switch is
turned to the RUN position.
When the engine starts, the light should extinguish. If the
light fails to extinguish or illuminates when the engine is
running -
STOP THE ENGINE IMMEDIATELY
Do not use the machine until the fault has been rectified.
G - Warning Light - Excessive
Transmission Oil Temperature
This warning light will illuminate if the transmission oil
temperature reaches an unacceptable level.
If the light illuminates when the engine is running -
STOP THE ENGINE IMMEDIATELY
Do not use the machine until the fault has been rectified.
H - Warning Light - Handbrake ‘ON’
This warning light will illuminate when the handbrake is in the
‘ON’ position and the start key switch is in the ‘RUN’ position.
The machine should not be driven when the light is
illuminated - release the handbrake first.
I - Warning Light - Battery Charge
The battery charge warning light should only be illuminated
when the start switch is ON and the engine is not running.
When the engine starts and full RPM is selected the charge
warning light extinguishes. The warning light should stay off
while the engine is running.
If the light fails to go out when the engine is running -
STOP THE ENGINE IMMEDIATELY
Check the fan belt, alternator, wiring etc.
Do not use the machine until the fault has been rectified.
