8-1 TA9 & TA10 Dumper 0803-3 December 2010
Transportation
b Transportation
Loading onto Lorry / Trailer
When loading dumper onto a trailer or lorry, strong loading
ramps should be used. See Specification section for machine
weights.
Ensure trailer or lorry will not move during loading by applying
their brakes and also chocking their wheels if necessary.
The angle of the ramps must not exceed the gradeability of the
machine and in wet or muddy conditions may need to be less
Fit articulation lock - see Articulation Lock.
Secure the dumper to the lorry chassis using chains, straps or
ropes of sufficient strength attached to the machine.
See Securing Dumper in the next section.
Unloading
When unloading from a lorry/trailer, strong loading lamps;
capable of taking the weight of the dumper, must be used.
Ensure trailer or lorry will not move during loading by applying
their brakes and also chocking their wheels if necessary.
Release the articulation lock before moving the machine.

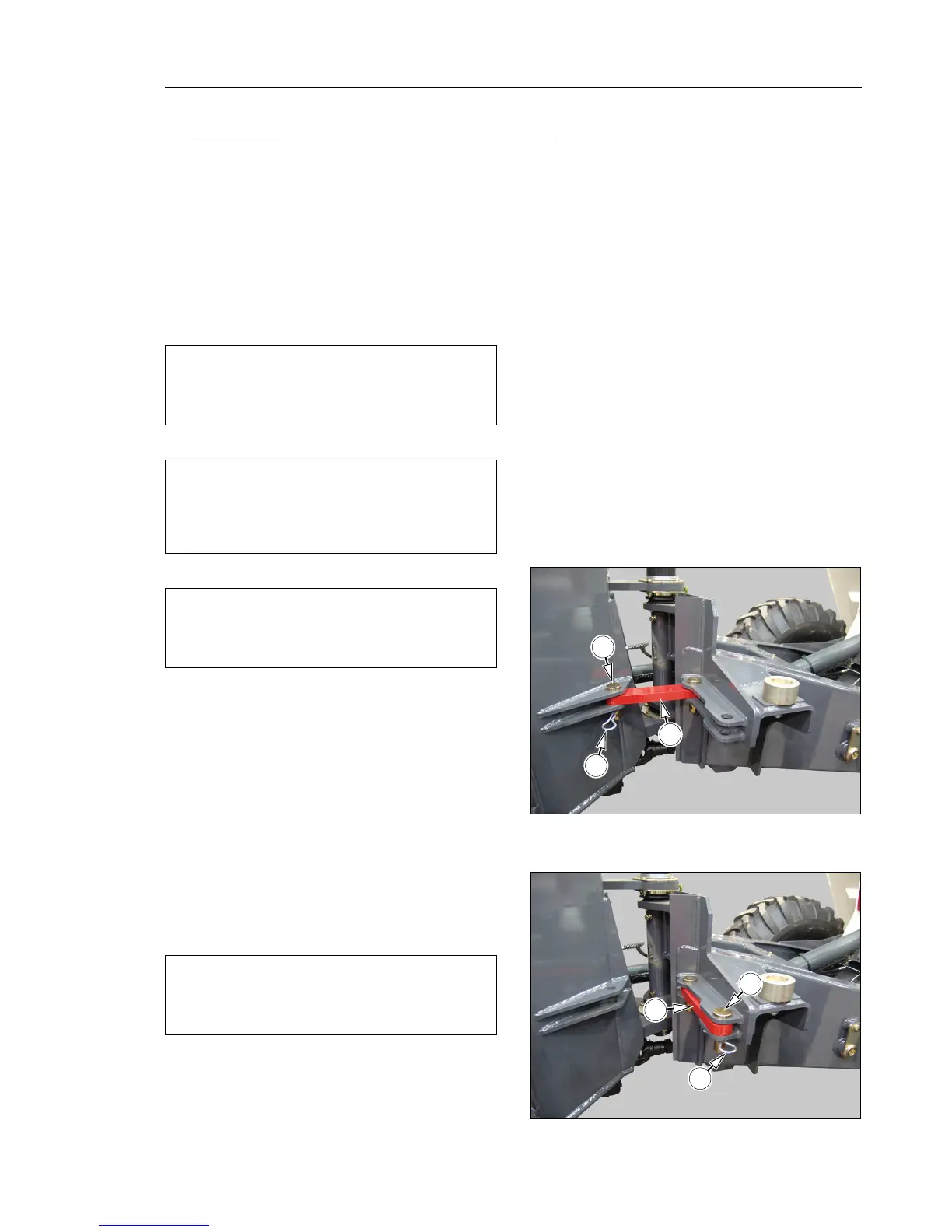

b Articulation Lock
1. When the machine has been positioned on the lorry or
trailer to prevent both chassis halves swinging relative to
each other the articulation lock (A) must be used.
2. To fit the lock remove grip clip (C) and pin (B) from front
storage position.
3. Pivot the locking bar (A) around until the holes in the bar
are in line with the holes in rear chassis locking bracket.
4. Fit the pin (B) through the holes and secure with the grip
clip (C).
b
Ramp Gradeability Will Be Reduced In Slippy Conditions.
Ensure the Skip is Empty when Transporting.
b
To prevent both chassis halves swinging relative to each
other the articulation lock must be fitted when the
machine is on lorry/trailer. See Articulation Lock section.
b
Keep all bystanders well clear while loading or unloading
the machine.
b
Keep all bystanders well clear while loading or unloading
the machine.
