Terex TA10 User Manual

Description
TA9 & TA10 Dumper 0803-2 November 2009 5-10

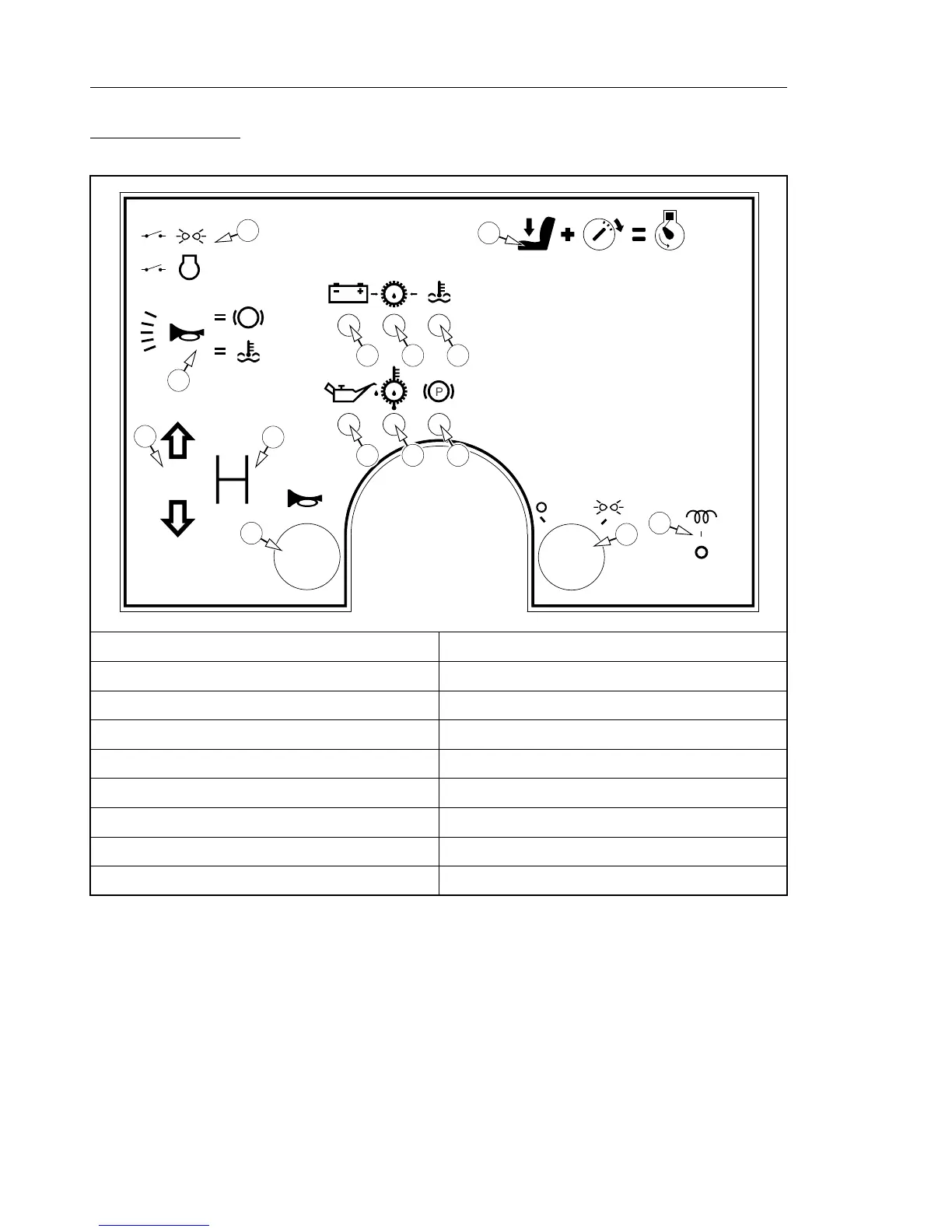

Dash Decal - Site Lights
A - 30A/20A Circuit Breakers H - Warning Light - Handbrake ‘ON’
B - Instruction - Parking Brake / Coolant Temp. Audible Warning I - Warning Light - Battery Charge
C - Instruction - Forward/Reverse Switch J - Warning Light - Transmission Oil Pressure
D - Instruction - Gear Lever Positions K- Warning Light - Engine Water Temperature
E - Horn Button M - Instruction - Start Inhibitor
F - Warning Light - Engine Oil Pressure P - Switch - SITE Machine Lighting
G - Warning Light - Transmission Oil Temperature Q - Instruction - Engine Start Key Switch
N
III
20A
30A
P
24
3
1
8002-2666
P
A
C
D
E
F
G
H
M
Q
I
J
K
P
B
