Description

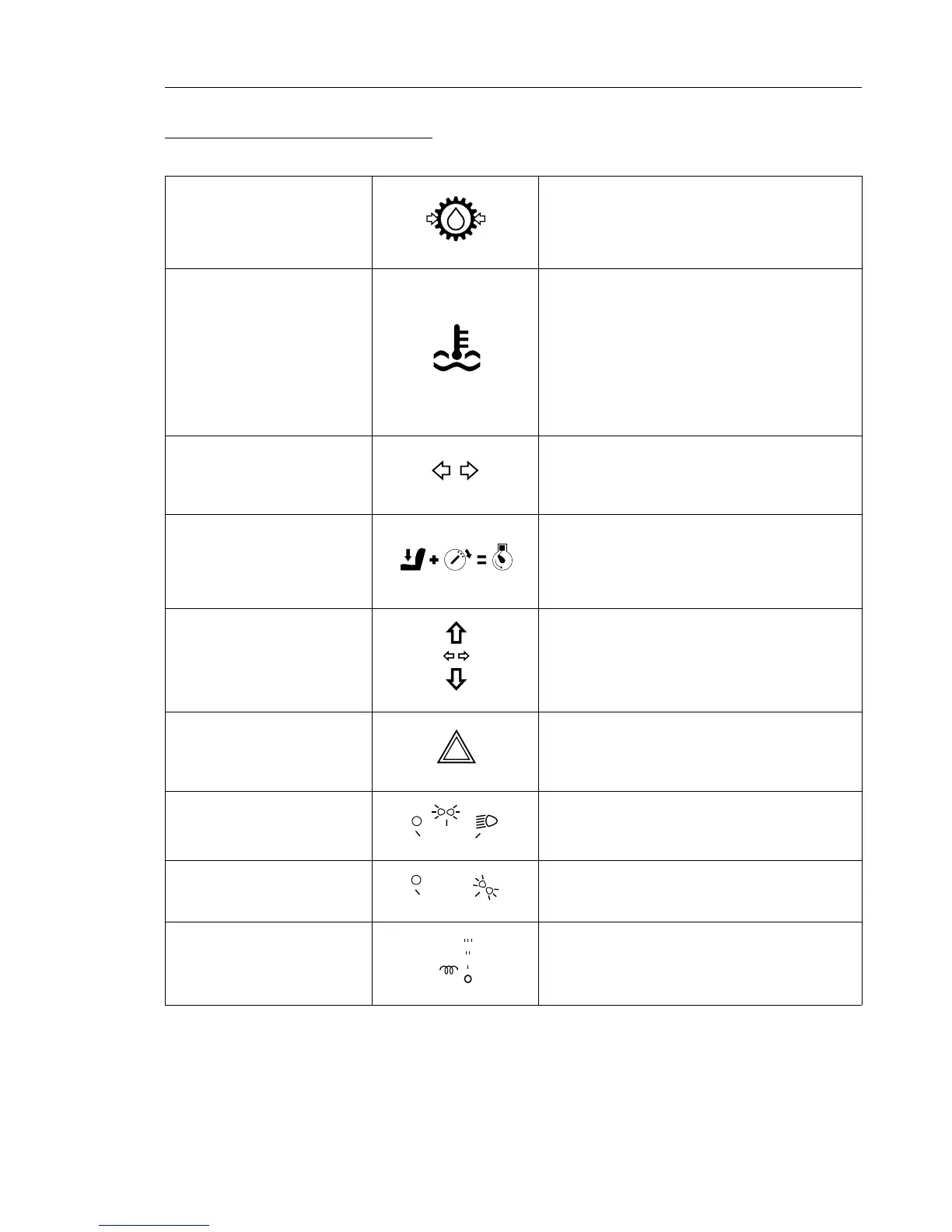

Dash Panel Symbol Description - continued
J - Warning Light - Transmission Oil
Pressure
When illuminated this warning light indicates the
transmission oil pressure is LOW
K - Warning Light - Engine Coolant
Temperature
The water temperature warning light should only be
illuminated when the start switch is in the ON position and
should go out when the engine is cranked.
If the warning light illuminates when the engine is running the
water temperature is too high, a warning buzzer will also
sound.
If engine temperature warning light is Illuminated when
engine is running -
STOP THE ENGINE IMMEDIATELY
Do not use the machine until the fault has been rectified
L - Warning Light - Direction
Indicator
If fitted, this light will flash when the indicator switch is moved
into the left or right turn position.
If the light fails to perform this function, do not use the
machine until the cause has been rectified.
M - Instruction - Start Inhibitor
This instruction informs the operator they will have to sit on
the seat before the engine will start.
A start inhibitor is fitted to the seat which is disabled when the
operator sits on the seat. It is therefore important the
operator adjusts the seat to match their weight.
N - Switch Instruction - Direction
Indicator
If fitted, this instruction informs the Operator which way to
move the switch in order to operate the LEFT and RIGHT
direction indicators
O - Switch - Hazard Warning Lights
If fitted, the hazard warning light switch will cause all four
indicator lights to flash and is used to warn others the
machine is experiencing problems and should be given
special attention.
P - Switch - RTA Machine Lighting - if
fitted
This switch will turn the headlights and front, rear side lights
on and off.
P - Switch - Site Lights - if fitted
This switch will turn the site lights on and off.
Q - Instruction - Engine Start Key Switch
This instruction shows the start key position to use when the
engine cold start aid is required.
