Whenever the wheel loader has to be towed, for whatever reason, the "Travel"
oil circuit must be opened so that the hydrostatic transmission no longer acts as
an auxiliary brake.

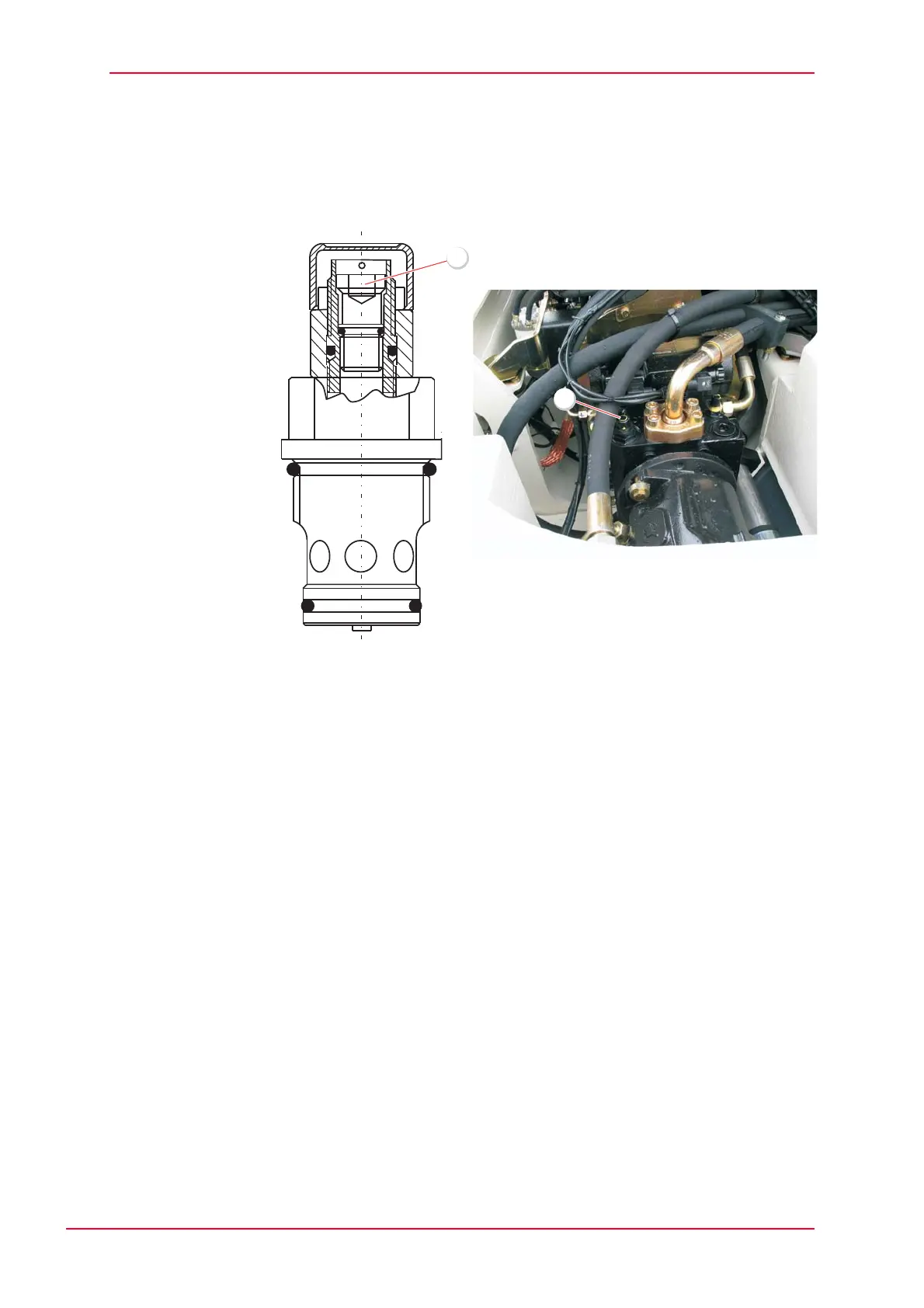

Fig. 8-1 Hydraulic pump
At the two high-pressure relief valves (1) with bypass located on top and
bottom, loosen the screw (1) by no more than 3 turns.
After towing, screw back in screw (1) until the stop.
