6.7.7 Hydraulic oil tank
Checking the hydraulic oil level

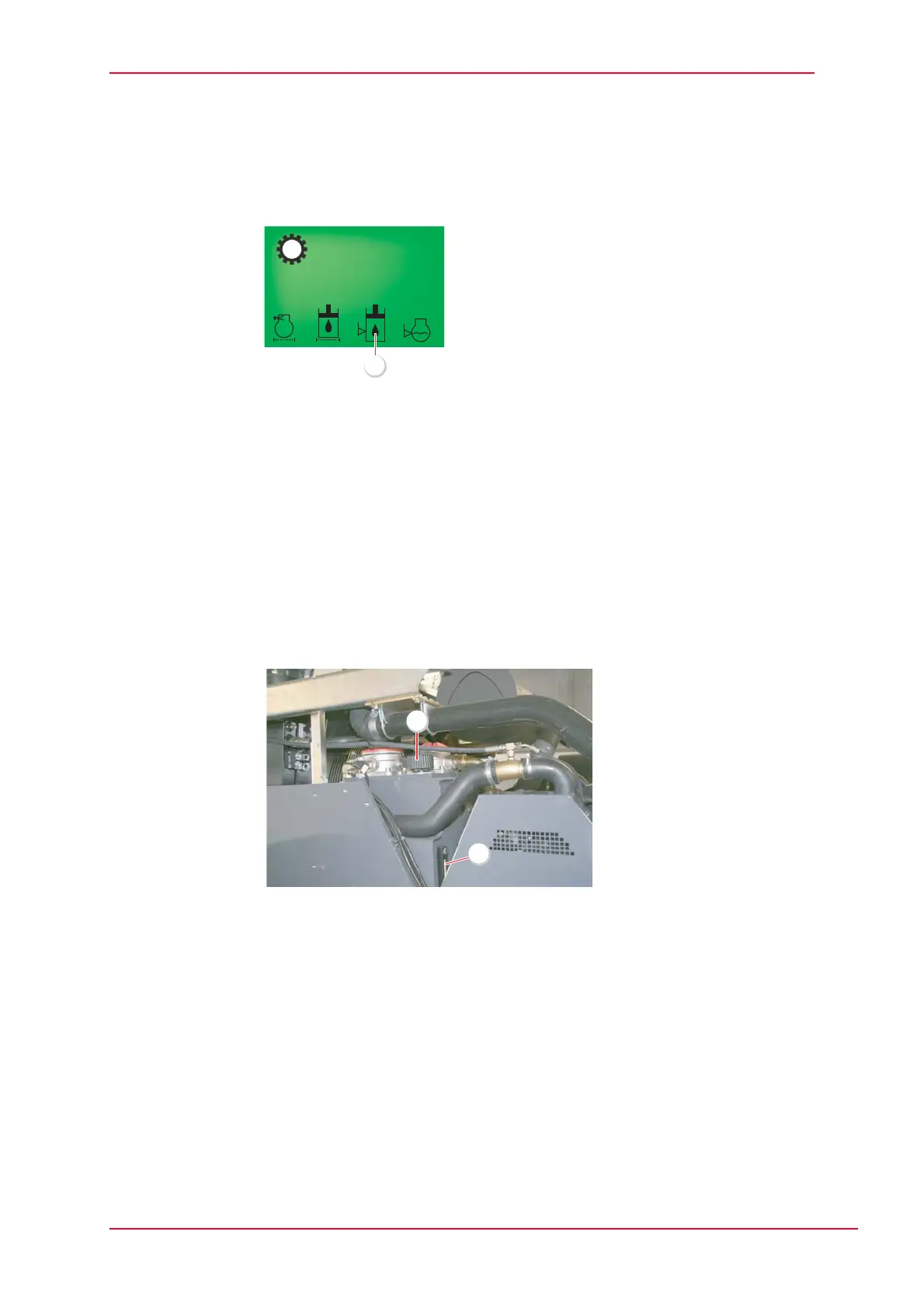

Fig. 6-24 Checking the hydraulic oil level
The hydraulic oil level is monitored automatically.
If the hydraulic oil level is insufficient, the hydraulic oil level indicator appears on
the display as soon as the ignition is switched on (1).
 Check the hydraulic oil level every day with the machine standing on level
ground.
 Top up hydraulic oil if the hydraulic oil level is insufficient.
 The oil level should be in the top third of the sight glass.
Topping up hydraulic oil
Fig. 6-25 Topping up hydraulic oil

Park the machine in horizontal position.
 Read off the hydraulic oil level on the sight glass (1) and, if required, top up
hydraulic oil using the breather (2).
 The oil level should be in the top third of the sight glass (1).
