5.2.2 Front control console

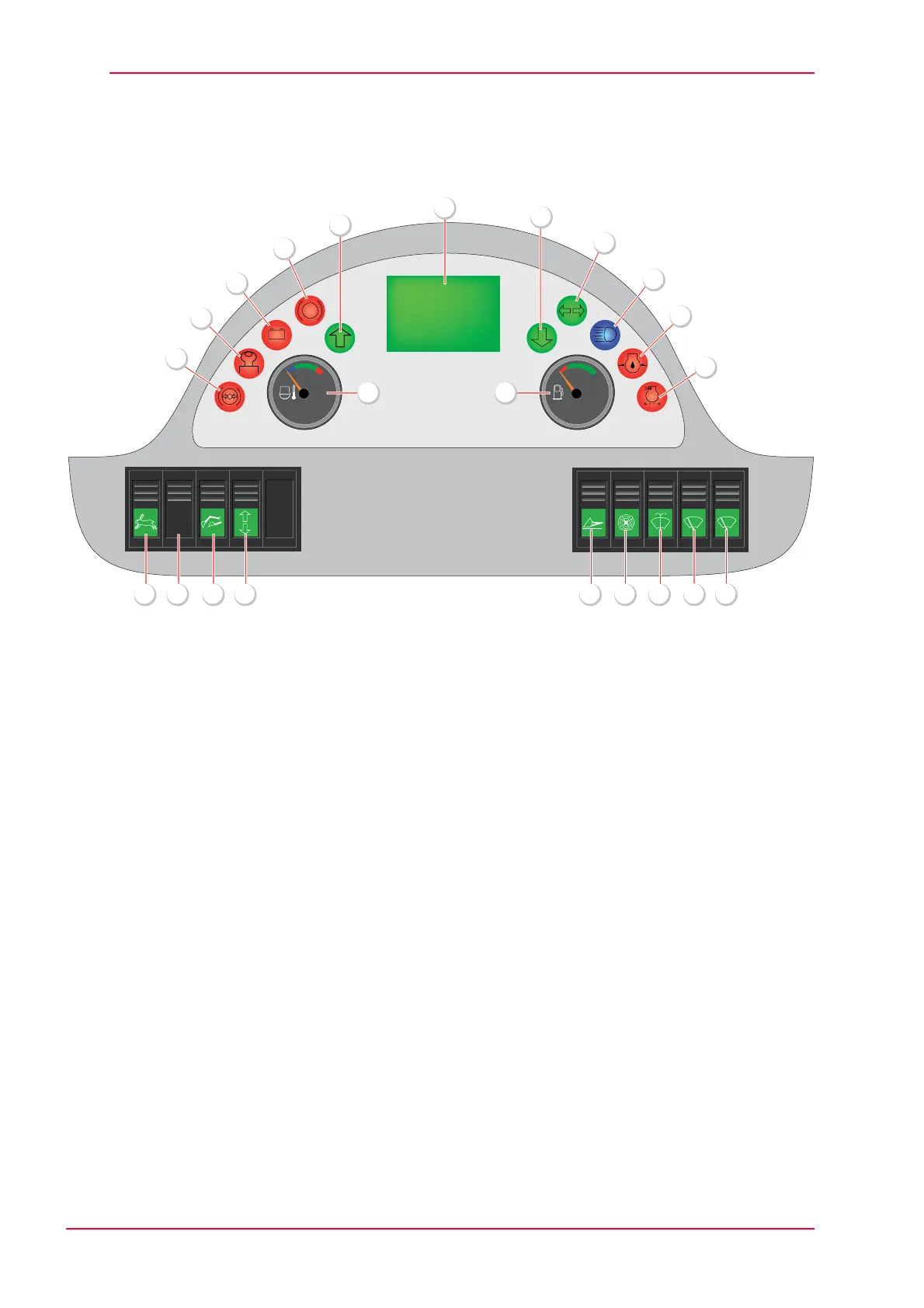

Fig. 5-4 Front control console
1 Brake accumulator pressure
2 Pre-heating monitor
3 Charge control lamp
4 Parking brake
5 Travel direction, forward
6 Display with operating hour meter
7 Travel direction, reverse
8 Direction indicator
9 High beam
10 Engine oil pressure
11 Air filter indicator
12 Fuel-level indicator
13 Coolant temperature
14 Travel speed switch - FAST/SLOW
15 --
16 Multi-function switch (lock for working hydraulics cut-off and activation of the
direction-of-travel preselection switches (9) page 37 and (17) page 38)
17 Preselection of travel direction (function only active if working hydraulics are
disabled)
18 Bucket return positioner (option)
19 Engine cooler reversing fan changeover switch – automatic / temperature-controlled
/ manual
20 Windshield washing function - front/ rear
21 Windshield wiper, front
22 Windshield wiper, rear
