Terex TL260 - Fuse and Relay Box

TL260
Description of the Wheel Loader
42 / 187
5
05_Description_en.fm - V 0.1 - 14.4.11
46
5.2.6 Fuse and relay box

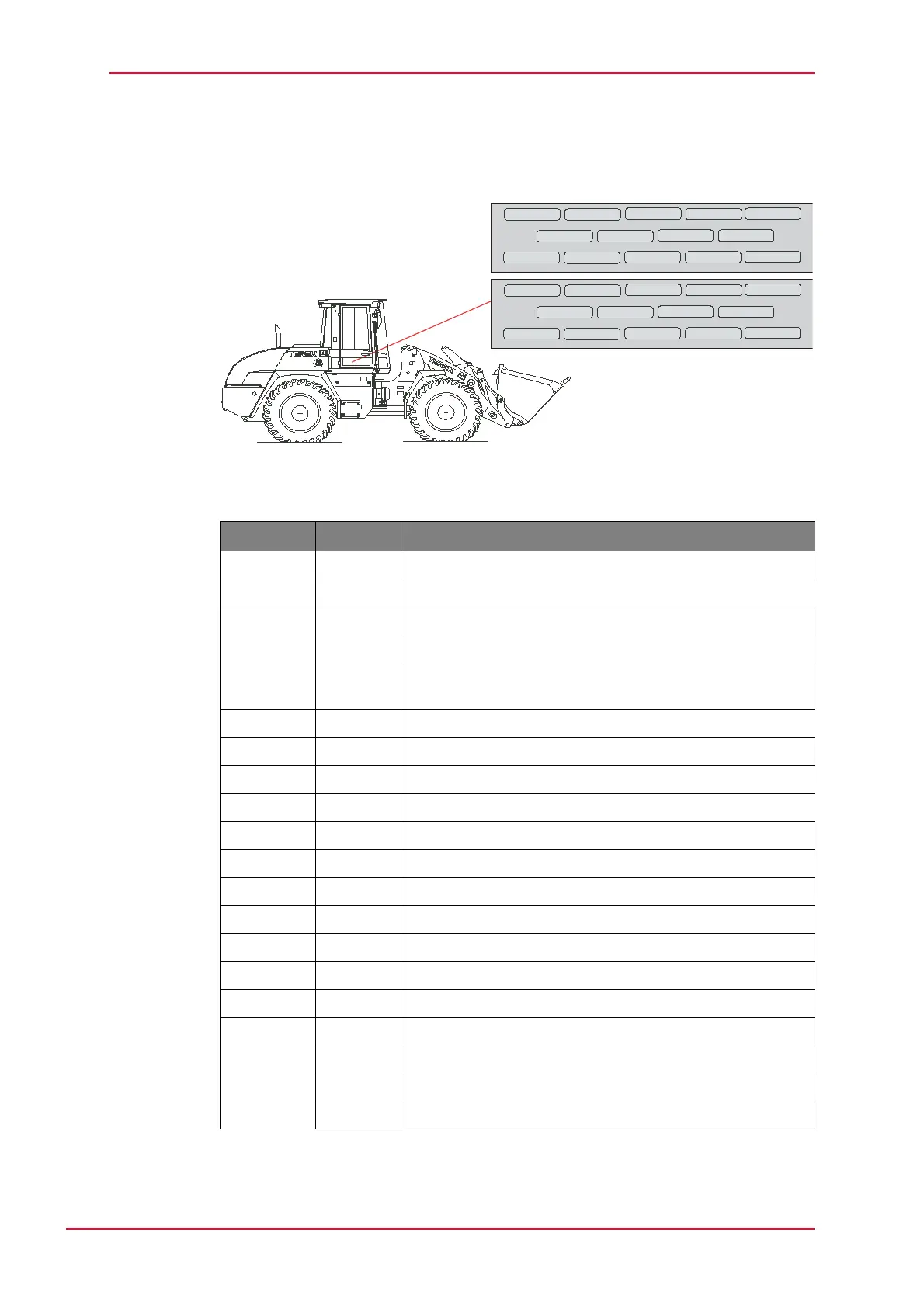

Fig. 5-8 Fuse and relay box
Position Ampere Assignment
FL1 15A Heating/air-conditioning
FL2 15A Windshield wiper and washer system, front
FL3 15A Windshield wiper and washer system, back
FL4 10A Rotating beacon/interior light
FL5 15A Power supply for ZSML term.15 Versa Steer, air-
cushioned seat (10A fuse)
FL6 15A Power supply for ZMDL term.15
FL7 10A Power supply for ZSML term.15 option 4th control circuit
FL8 10A Power supply for ZSML term.15 option
FL9 10A Dashboard/immobilizer
FL10 10A Bucket return positioner
FL11 10A Reserve
FL12 10A Direction indicators term.15
FL13 10A Horn
FL14 20A Option for tank filling pump, assembly socket (15A fuse)
FR1 15A Working floodlights, front
FR2 15A Working floodlight, rear
FR3 15A Ignition switch
FR4 10A Direction indicators term.30
FR5 15A 24V socket, option for assembly socket
FR6 20A Power supply for ZMDL term.30, immobilizer
4560_5008
FL1
FL2
FL3
FL4
FL5
FL6
FL7
FL8
FL9
FL10
FL11
FL12
FL13
FL14
FR1
FR2
FR3
FR4
FR5
FR6
FR7
FR8
FR9
FR10
FR11
FR12
FR13
FR14
