5.2.5 Display

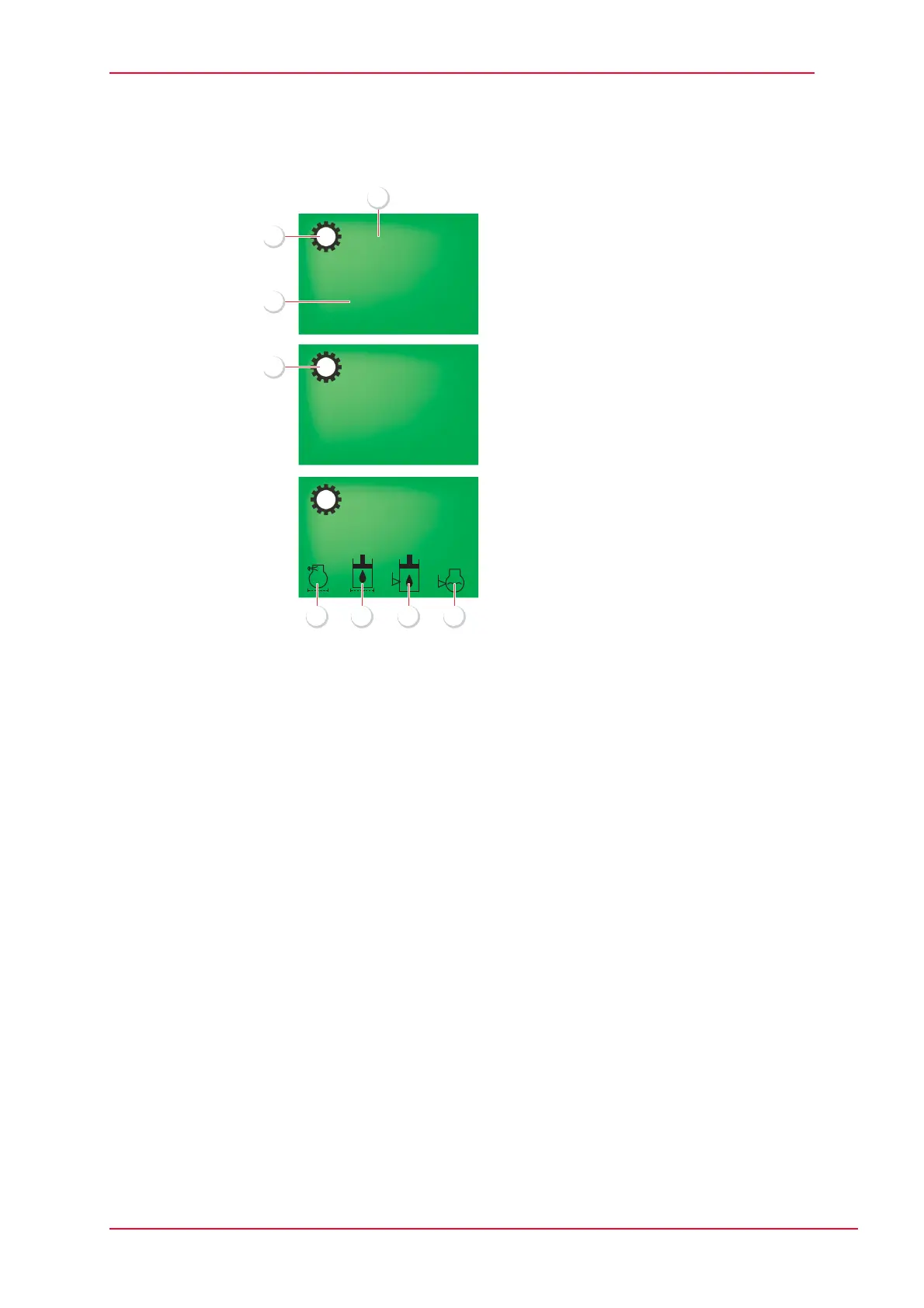

Fig. 5-7 Display
1 Speed indicator
2 Monitor indicator "manual transmission range I"
3 Operating hour meter
4 Monitor - indicator "manual transmission, range II" (optional for high-speed version)
5 Soot filter clogging indicator (option)
6 Hydraulic oil filter clogging indicator
7 Hydraulic oil level
8 Coolant level
12 km/h
00014,0 h
I
21 km/h
00014,0 h
I
12 km/h
I
II
1
5 6 7 8
2
3
4
4560_5007
