5.2.3 Lateral control console

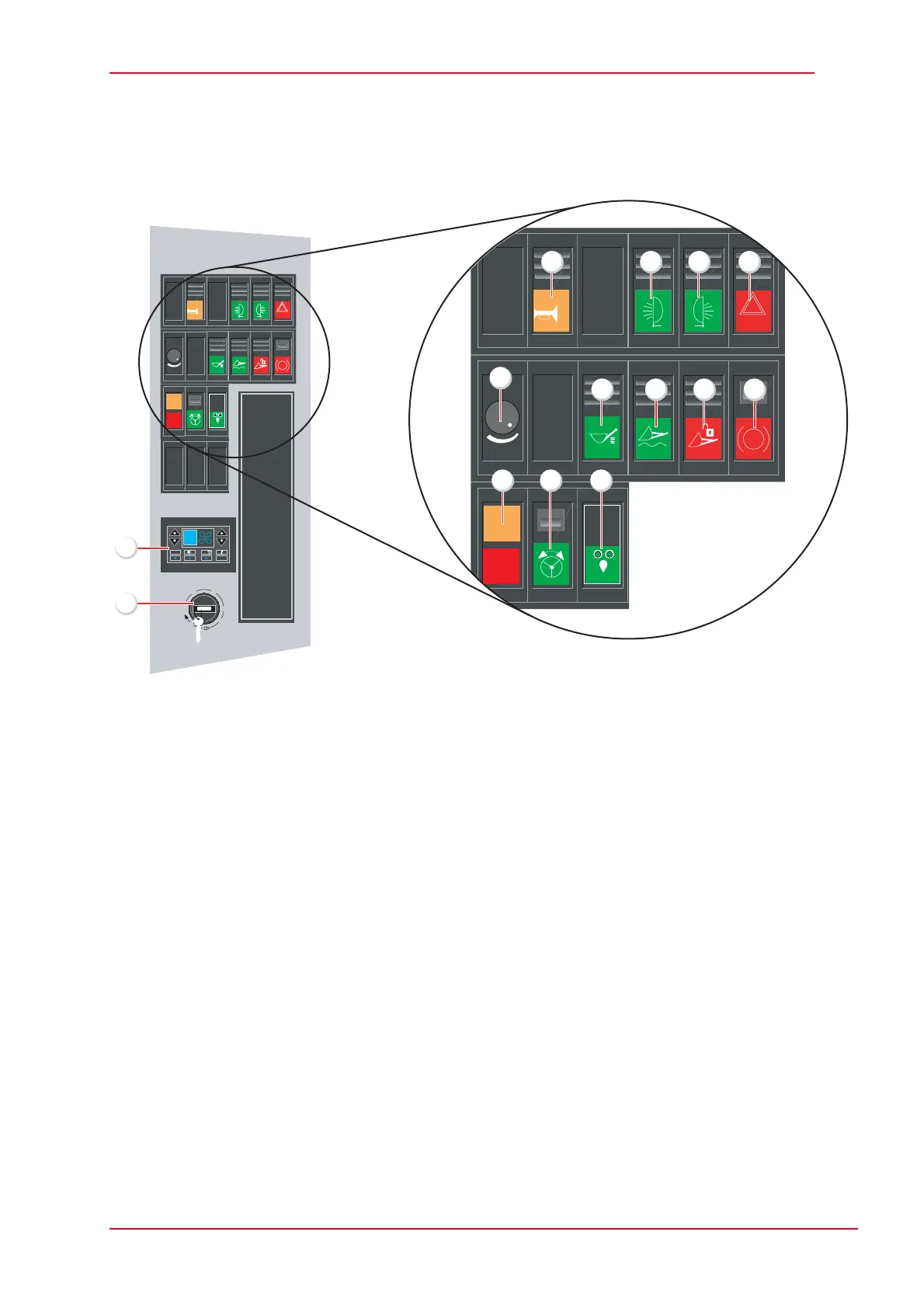

Fig. 5-5 Lateral control console
1 Reverse signal off
2 Working floodlight, front
3 Working floodlight, rear
4 Hazard warning switch
5 Flow rate adjustment for additional control circuit
6 Ride control system (option)
7 Preselection switch float position - OFF/Impulse/Continuous operation
>TL02600272
Preselection switch float position - OFF/Continuous operation TL02600273>
8 Preselection switch of additional control circuit - OFF/Impulse/Continuous operation
9 Parking brake preselection switch ON/OFF, ON = locked
10 Motor control lights
11 Emergency steering Automatic/ON
12 Intermediate lubrication (manual operation of central lubrication)
13 Control unit heating / Klimatronic
14 Glow plug and starter switch
