6.5.1 Lubrication plan

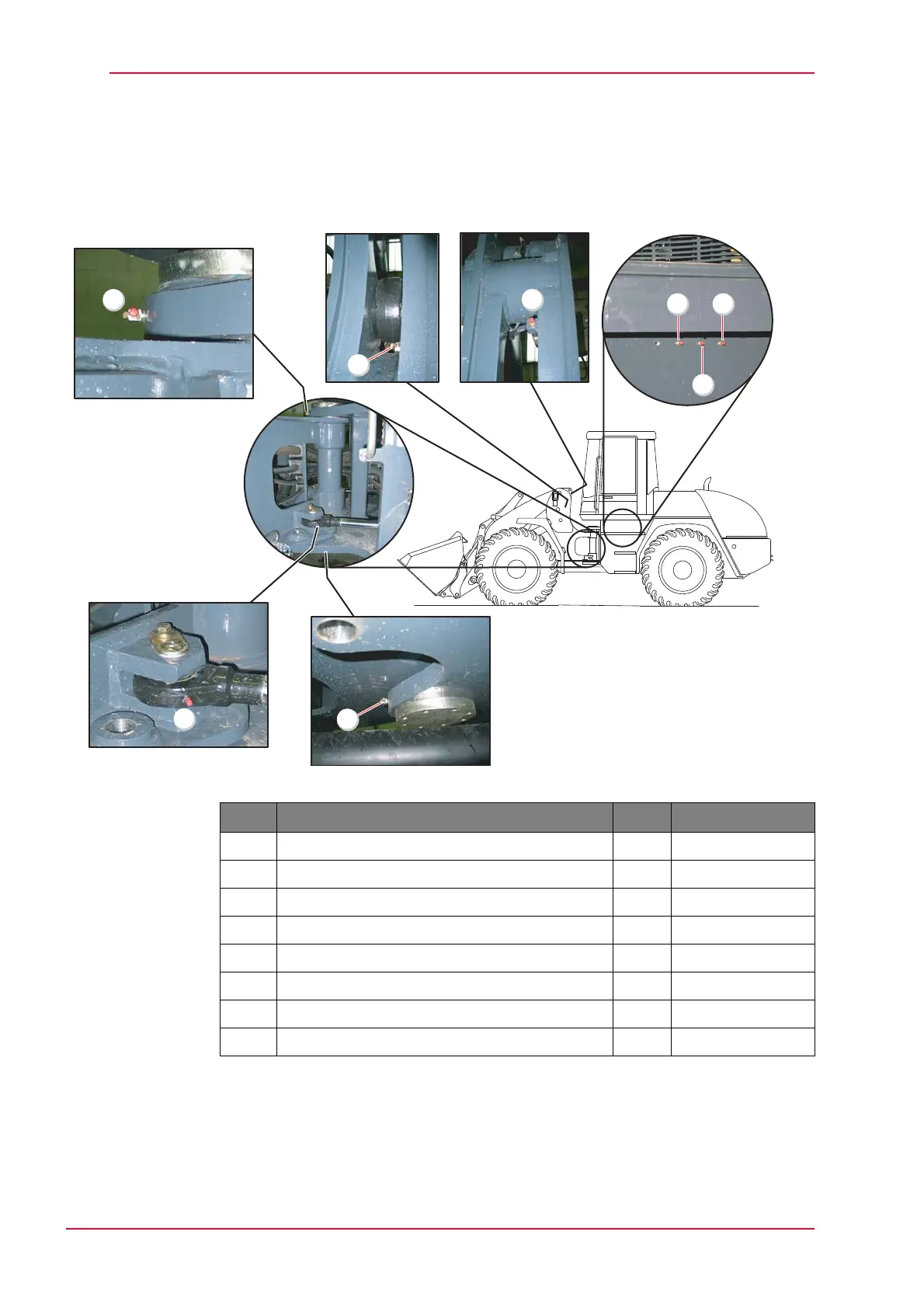

Overview of lubrication points on machine
Fig. 6-3 Overview of lubrication points on machine
Tab. 6-7 Lubrication points on machine
4560_6001
5
4
8
7
2
1
3
6
Item Component Qty. Interval
1 Lift cylinder – Front-end 2 Weekly
2 Lift frame – Front-end 2 Weekly
3 Steering cylinder – Rear-end 1 Weekly
4 Rear axle bearing 1 Weekly
5 Rear axle bearing 1 Weekly
6 Articulation 1 Weekly
7 Steering cylinder – Front-end 2 Weekly
8 Articulation 1 Weekly
