Terex TL260 - Operating Controls

TL260
Description of the Wheel Loader
05_Description_en.fm - V 0.1 - 14.4.11
37 / 187
5
46
5.2 Display elements and operating controls in
operator's stand
5.2.1 Operating controls

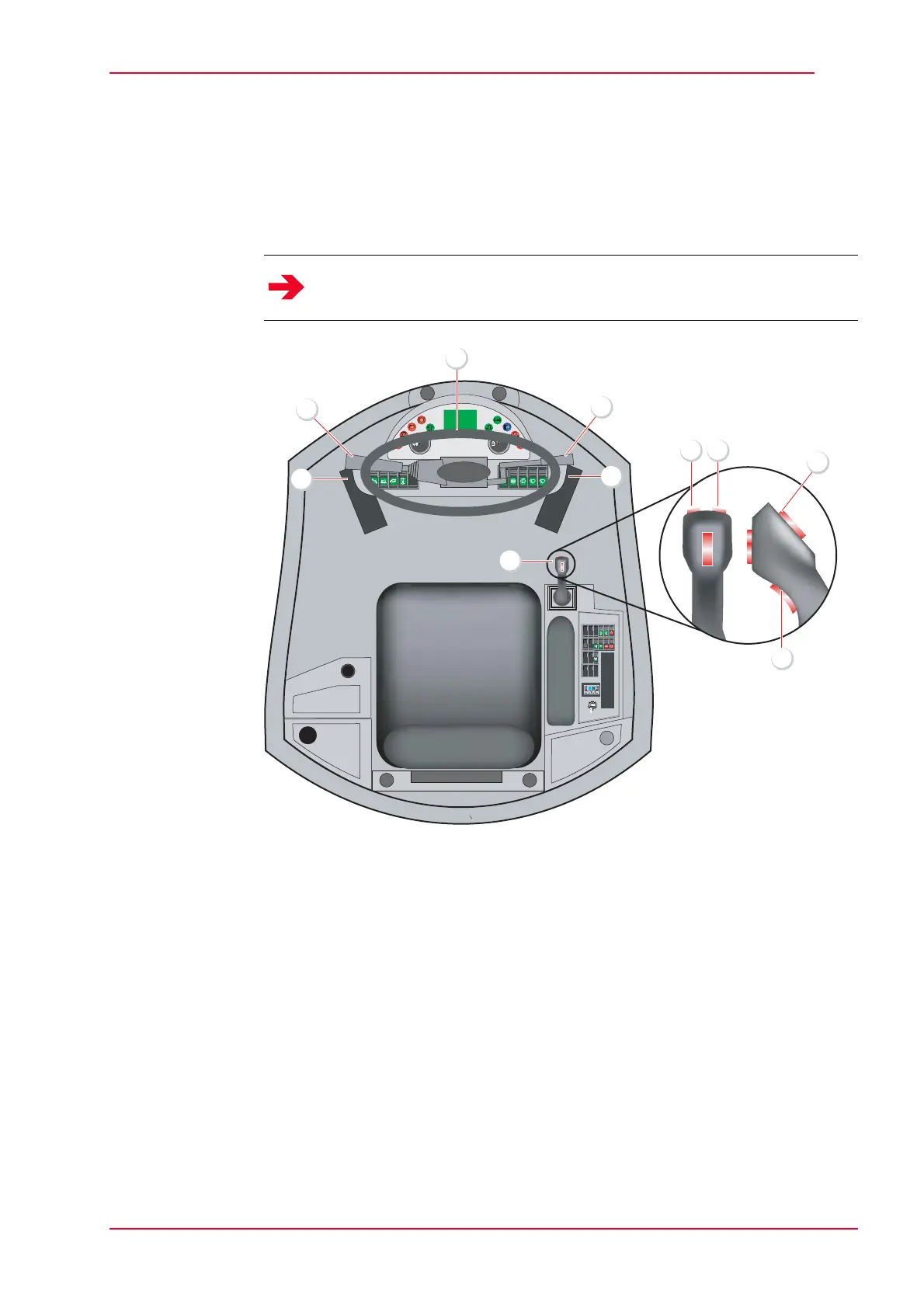

Fig. 5-3 Operating controls
1 Brake-inching pedal
2 Lighting, direction indicator, horn and low-high beam (steering-column switch)
3 Steering wheel
4 Tilt and height adjustment of steering wheel
5 Accelerator pedal
6 Control lever - loading equipment
7 Operation - additional control circuit OFF
8 Operation - additional control circuit ON
9 Preselection of travel direction (function only active if working hydraulics are
activated)
10 Impulse mode - float position >TL02600272
Note
The following lists include non-standard equipment!
UNIDECK UNIDECK
P
-
+
HAZARD
P
AUTO
OFF
0
I
4560_5003
3
7 8
10
2
5
4
9
1
6
