6.7.8 Hydraulic oil suction filter
Changing the filter insert

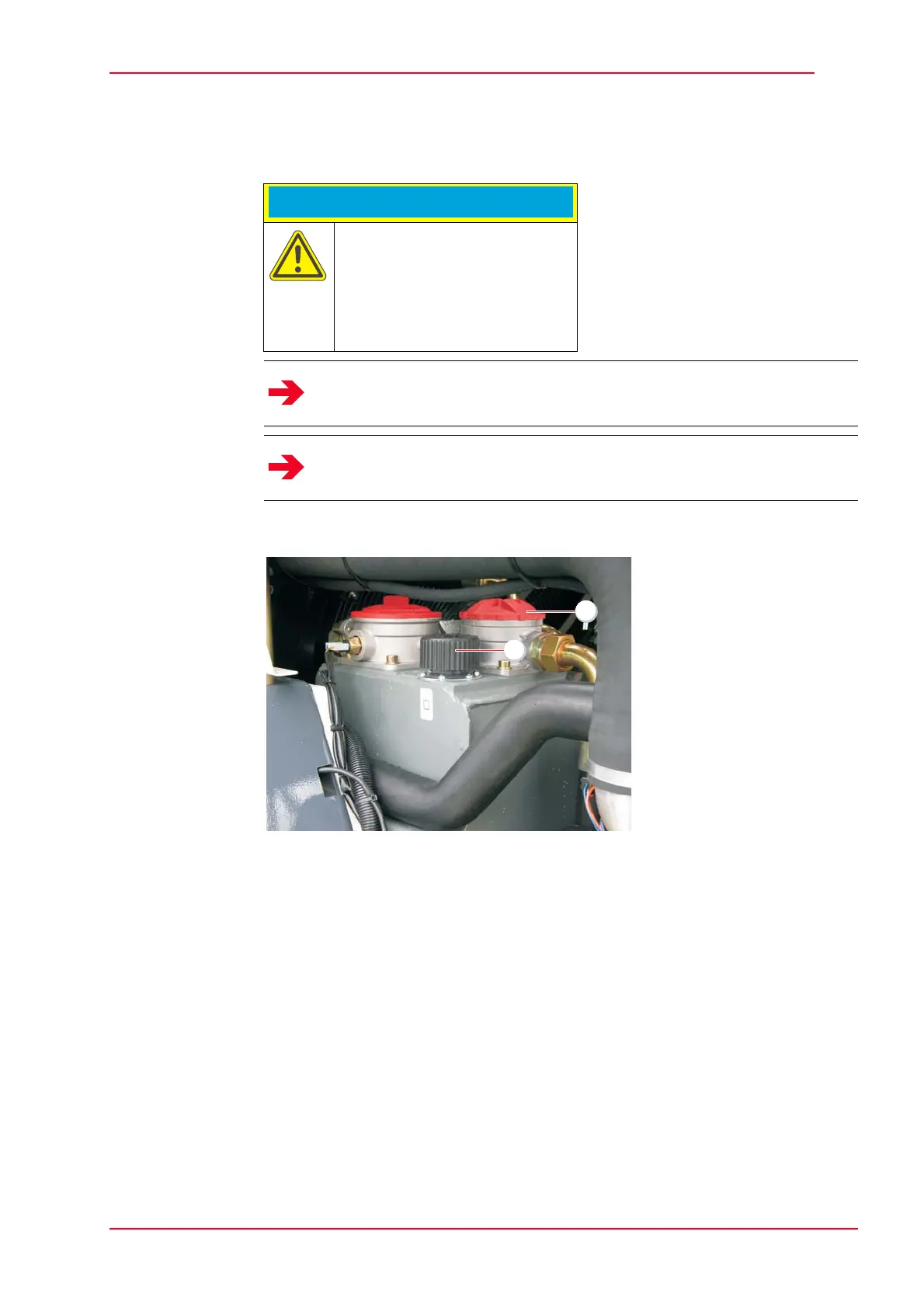

Fig. 6-29 Changing the hydraulic oil suction filter

Shut down the engine.
 Open the breathing filter (1).
 Loosen the filter cover (2) of the suction filter with the aid of a tool.
CAUTION
Property damage
Machine damage due to dirt
reaching the uncovered
hydraulic oil tank.
Z Before starting, clean all parts
above the tank.
Note
After a larger repair job, renew the filter cartridge following the test run.
Note
Remove the suction filter above a receptacle for the collection of waste oil.
