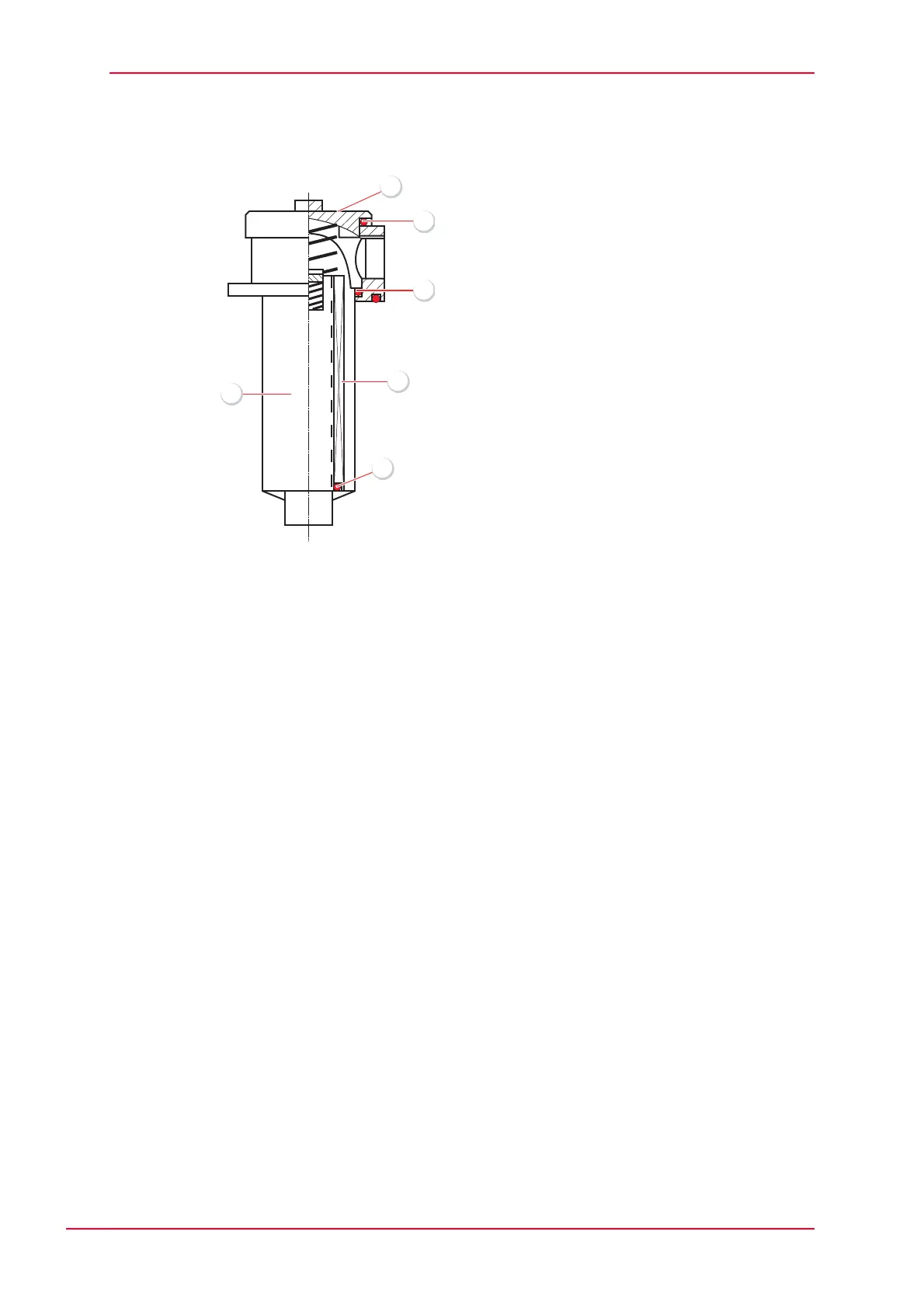

Fig. 6-32 Changing the filter insert of return filter
Pull out the filter bowl (2) together with the filter insert (3).
Remove the filter insert from the filter bowl by turning and pulling at the same
time.
Clean the filter bowl using appropriate detergents.
Ensure that the O-rings (4-6) are in perfect condition and replace any
damaged part.
Insert the new filter element into the filter bowl.
Re-insert the filter bowl along with the cartridge into the hydraulic oil tank.
Apply some oil to the cover seal.
Install the return filter cover and tighten by hand.
Check the tightness of the filter by means of a test run.
