Texas Instruments CC253x - Timer 1 Registers

T1CC0
T1CC0
T1CCn T1CCn
T1CC0
T1CCn
T1CCn T1CCn
0000h
0-SetOutputonCompare
1-ClearOutputonCompare
5-ClearWhen T1CC0,SetWhen T1CCn
6-SetWhen T1CC0,ClearWhen T1CCn
2- ToggleOutputonCompare
3-SetOutputonCompare-Up,
Clearon Compare-Down
T0313-01
4-ClearOutputonCompare-Up,
Seton Compare-Down
Output Compare Mode www.ti.com

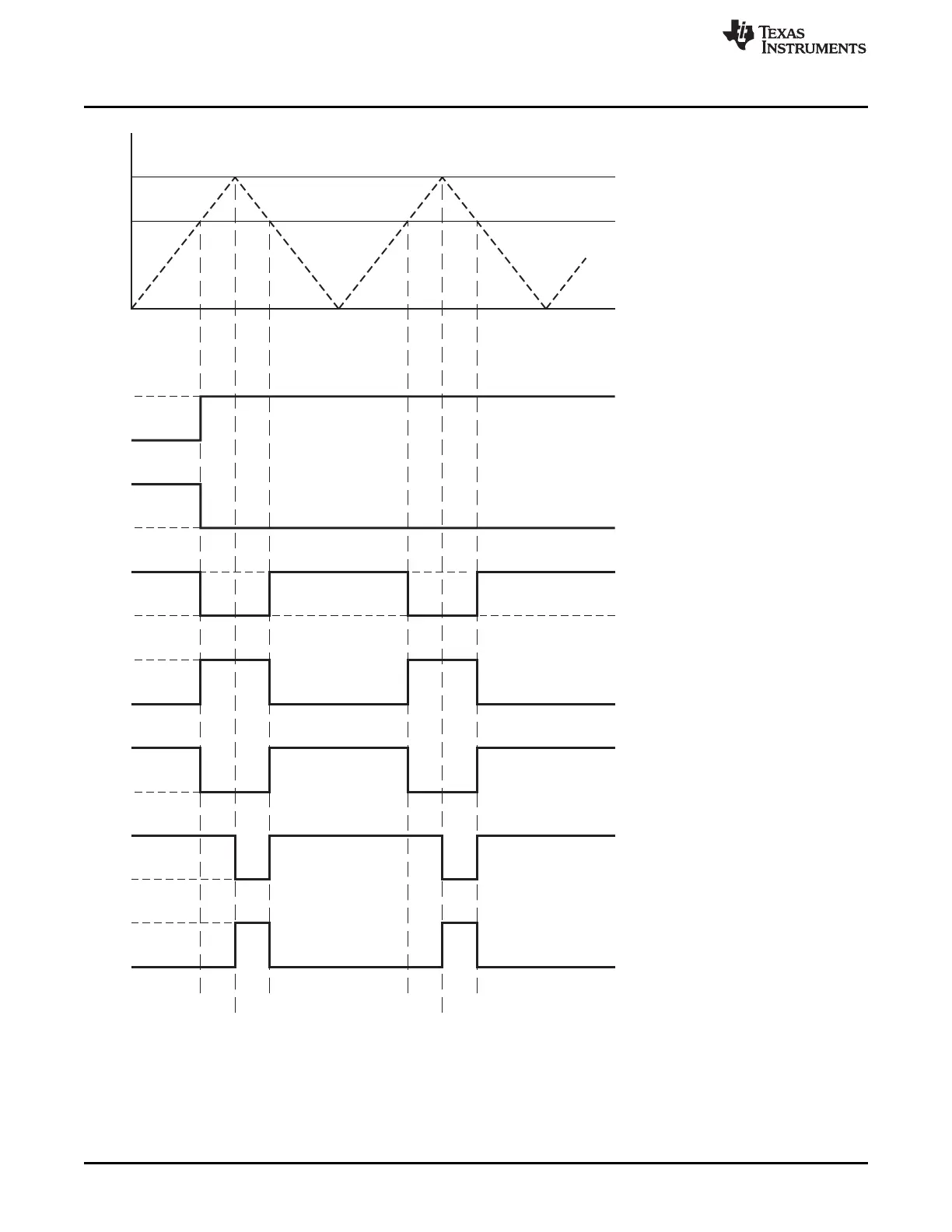

Figure 9-6. Output Compare Modes, Timer Up/Down Mode
