Jacinto7 J721E/DRA829/TDA4VM Evaluation Module (EVM)
3.4 EVM DIP Switches
J721E EVM supports User DIP Switches for EVM Configuration and SoC Boot mode set function.
3.4.1 EVM Configuration DIP Switch
Figure 13 shows that the common processor board has a dedicated EVM configuration switch (SW3) to
set the various functions of EVM peripherals. Some of the configuration is for peripherals on the CPB,
while others switches are used to configure peripherals on Expansion Boards. For those settings, the
device-specific Expansion Board User's Guide will define the switch function.

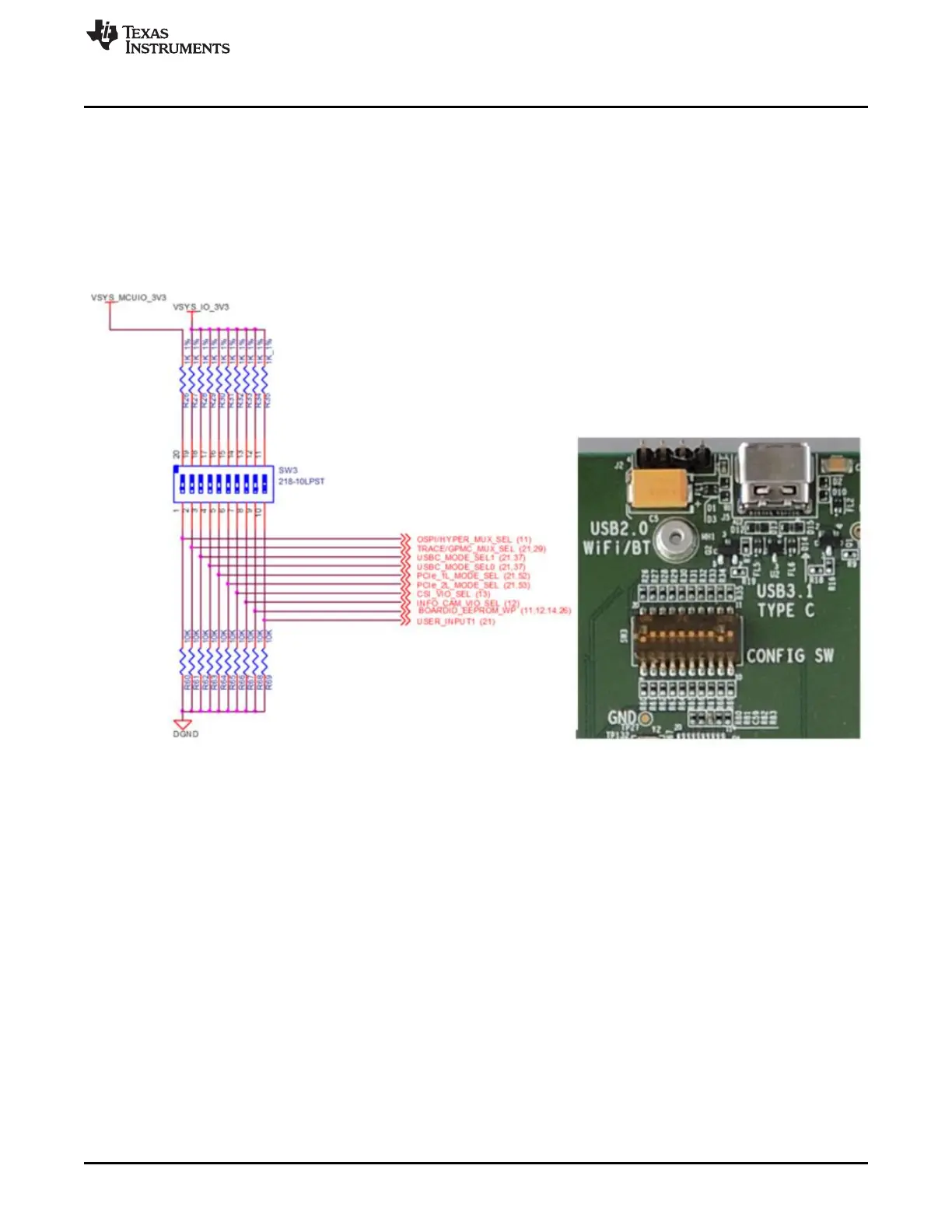

Figure 13. EVM Configuration DIP Switch
