J721E EVM Hardware Architecture
www.ti.com
46
SPRUIS4A–December 2019–Revised May 2020
Submit Documentation Feedback
Copyright © 2019–2020, Texas Instruments Incorporated
Jacinto7 J721E/DRA829/TDA4VM Evaluation Module (EVM)
4.8.4 MMC Interface
The processor supports two MMC (MMC0 and 1) ports. MMC0 is connected to eMMC flash and MMC1 is
interfaced with Micro SD Socket on the Common processor board.
4.8.4.1 MMC0 - eMMC Interface
A 16GB, V5.1 compliant eMMC flash memory Mfr. Part# MTFC16GAPALBH-AAT ES is interfaced to
MMC0 port of the J721E SoC. The flash is connected to 8 bits of the MMC0 interface supporting HS400
double data rates up to 200 MHz. External pull up resistors 49.9K are provided on DATA [7:0], CMD and
Reset signals, pull down resistor is provided on the data strobe signal to prevent bus floating.

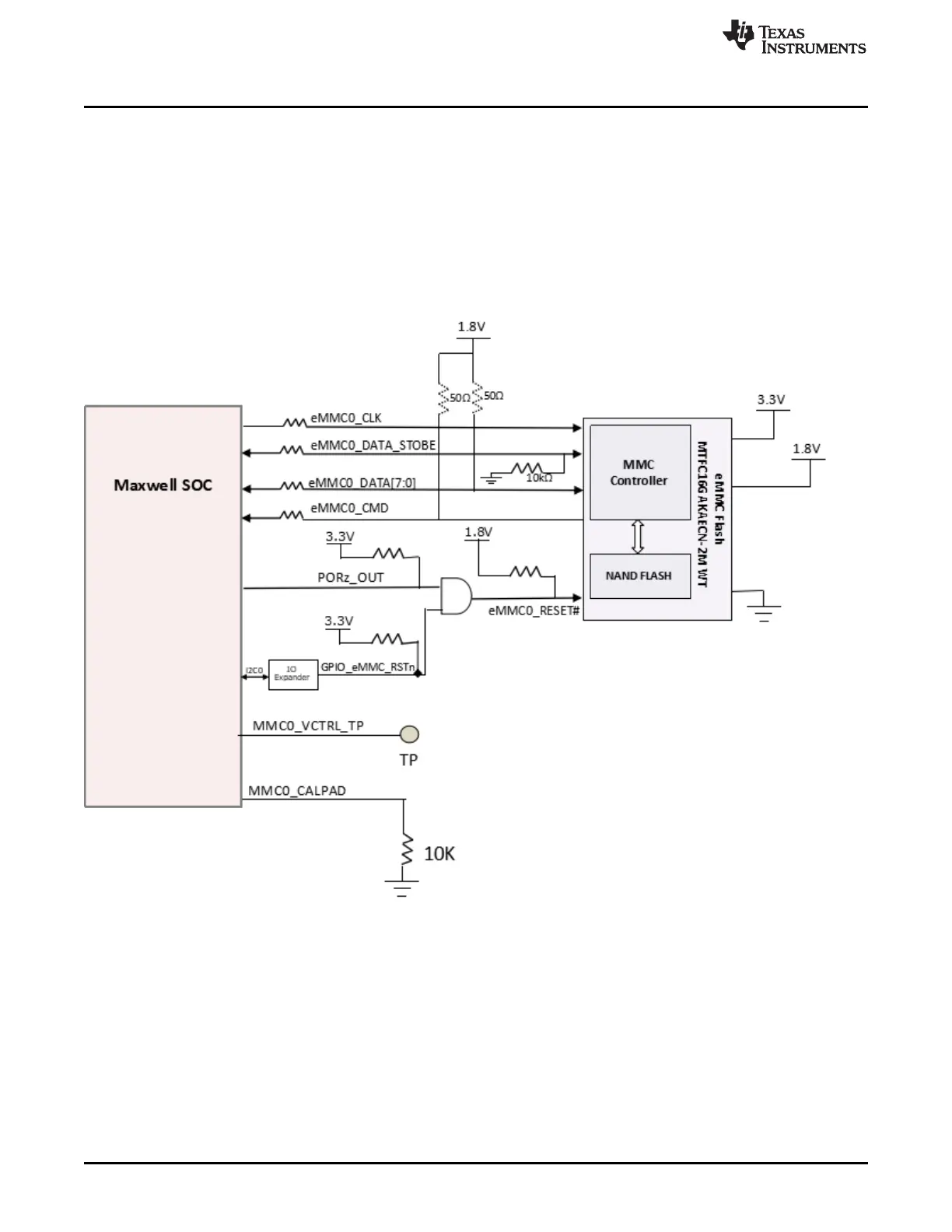

Figure 28. eMMC Memory Block Diagram
