TO REMOVE
(Continued)
2.
Slowly
slide the tool
along the
wire into the
insert
cavity until it
engages the contact
rear and a
positive
resistance
is felt. At
this time,
the contact
retaining
clip
is in the
unlock
position.
3.
Press the
wire of
the contact
to be
removed
against
the serrations
of the
plastic tool
and pull
both the
tool and
the contact
wire assembly
out
of the
connector.
CONTACT INSERTION
Contact
partially
inserted
with insertion
end
of
tool.
Contact
fully
inserted
as tool
expands
tines.
Tines snap
behind
contact shoulder
when
tool
is removed.
CONTACT
EXTRACTION
Tines
expanded
beyond
contact shoulder
with
extraction
end of
tool, ready
for release.
Contact
partially
removed.
I UUL
55802010
55801012
55801012

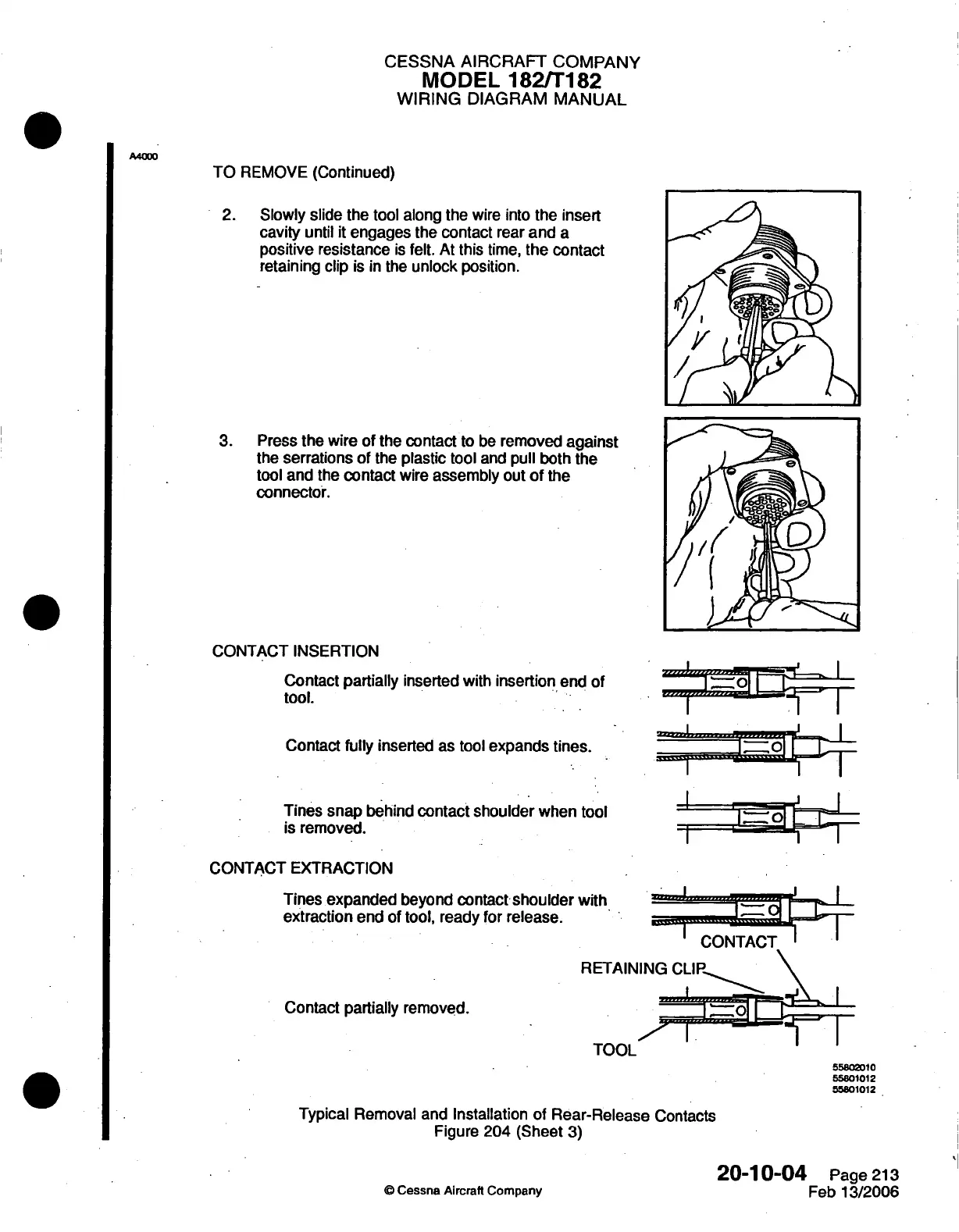

Typical
Removal
and Installation
of
Rear-Release
Contacts
Figure
204
(Sheet 3)
20-10-04
© Cessna
Aircraft
Company
Page
213
Feb 13/2006
