CESSNA
AIRCRAFT COMPANY
MODEL 182/T182
WIRING
DIAGRAM MANUAL
TO INSERT (Continued)
2. Pull
the wire
back through
the tool until
the tip of
the
tool seats
against
the
shoulder.
3.
Holding
the connector
with the
backshell
removed
and the
rear insert facing
you, slowly push the
contact straight
into the connector
insert.
4. A
firm stop will
be evident
when the contact
positively
seats in the
connector
insert. Then
let go of
the wire
and
pull out
the tool.
TO REMOVE
1.
With the
rear insert
toward you,
snap the white
end
of
the appropriate
size
double-ended
plastic
tool
over
the wire
of the contact
to be
removed.
55802010

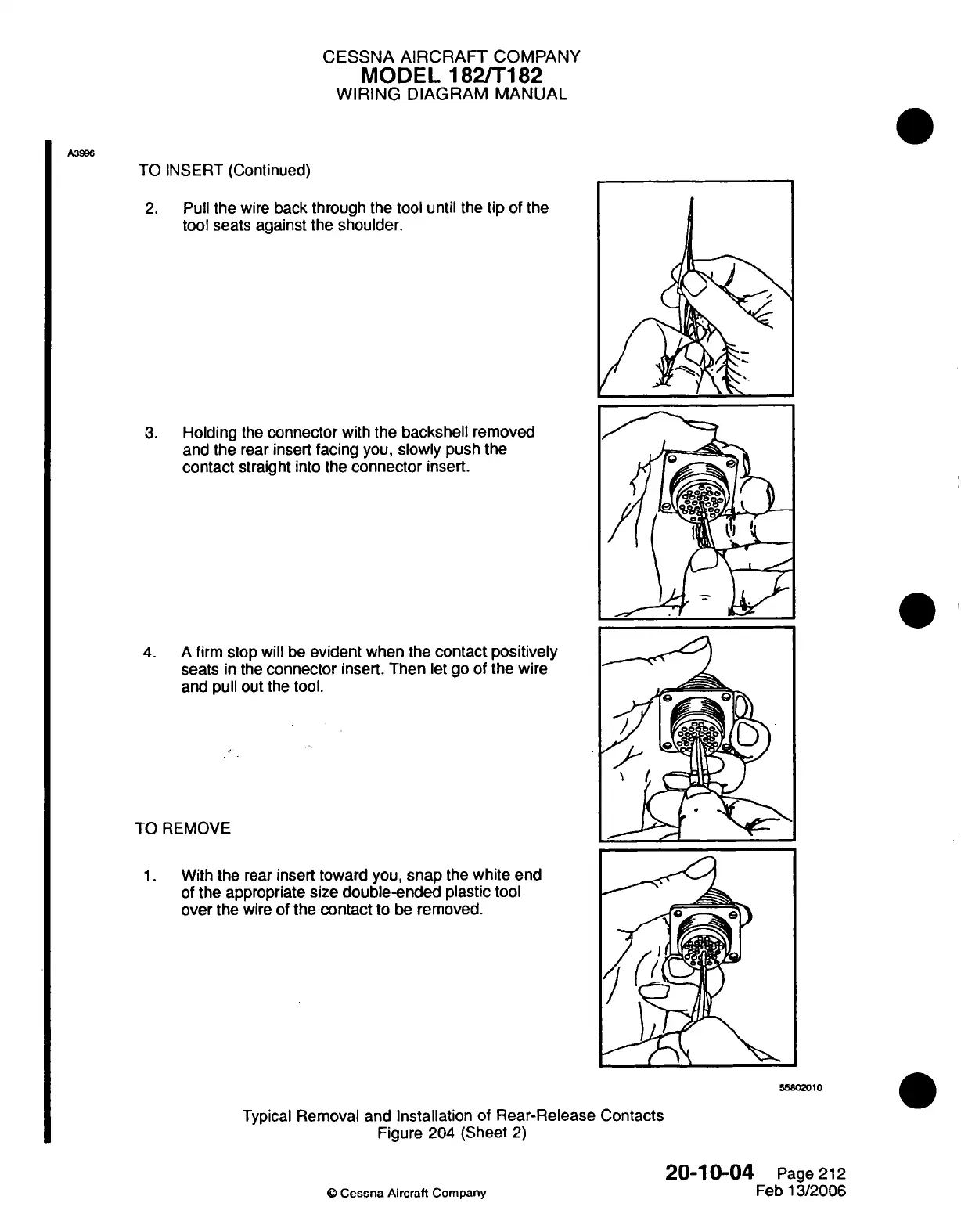

Typical Removal
and
Installation of
Rear-Release
Contacts
Figure
204 (Sheet
2)
20-10-04
© Cessna
Aircraft
Company
Page 212
Feb 13/2006
A3996
