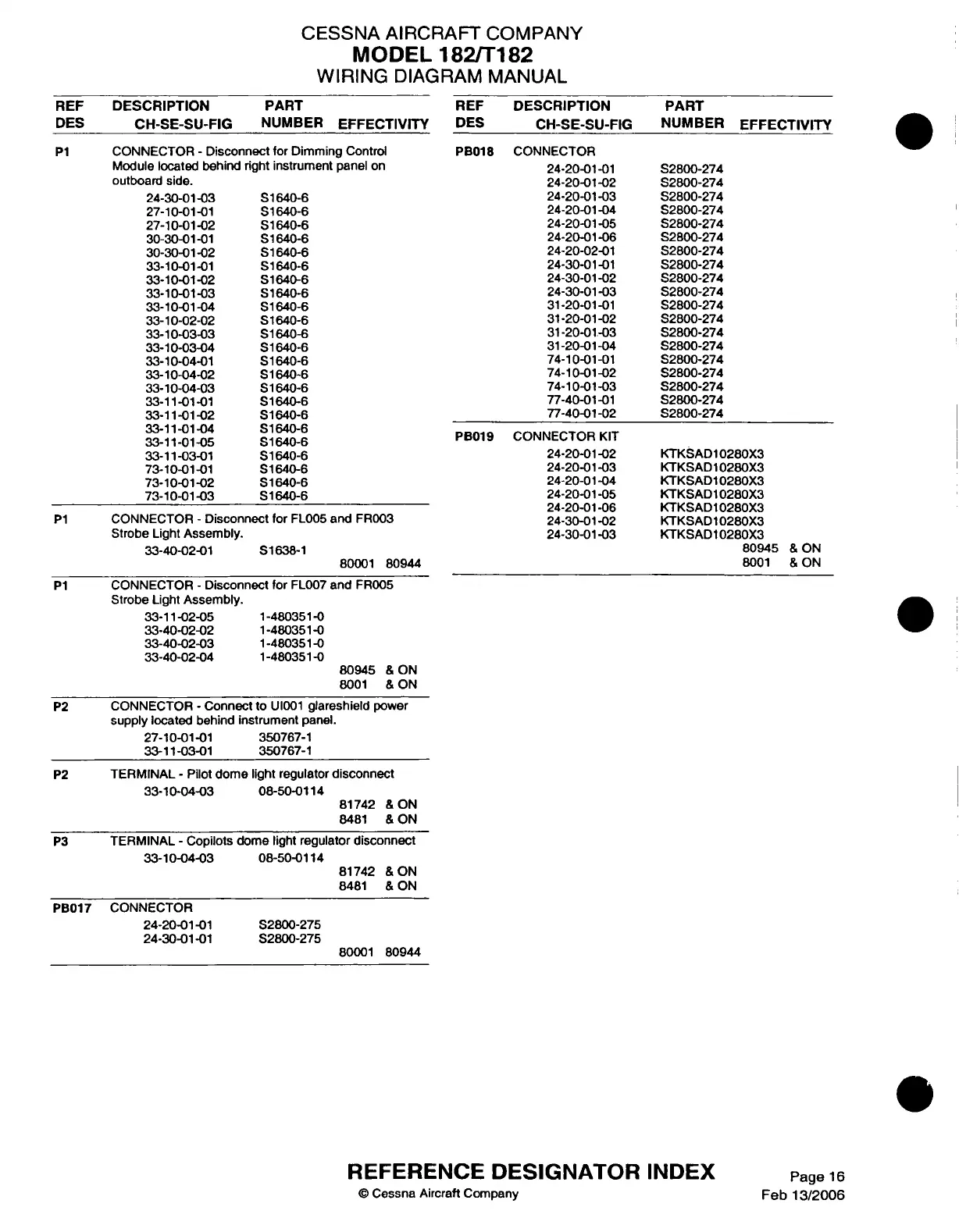

CESSNA AIRCRAFT COMPANY
MODEL 182/T182
WIRING DIAGRAM MANUAL
PART REF DESCRIPTION
NUMBER
EFFECTIVITY
DES
CH-SE-SU-FIG
P1 CONNECTOR
- Disconnect
for Dimming Control
Module located behind right instrument panel on
outboard side.
24-30-01-03 S1640-6
27-10-01-01 S1640-6
27-10-01-02 S1640-6
30-30-01-01 S1640-6
30-30-01-02 S1640-6
33-10-01-01
S1640-6
33-10-01-02
S1640-6
33-10-01-03 S1640-6
33-10-01-04 S1640-6
33-10-02-02 S 1640-6
33-10-03-03 S1640-6
33-10-03-04
S1640-6
33-10-04-01
S1640-6
33-10-04-02 S1640-6
33-10-04-03
S1640-6
33-11-01-01
S1640-6
33-11-01-02
S1640-6
33-11-01-04 S1640-6
33-11-01-05
S1640-6
33-11-03-01 S1640-6
73-10-01-01 S1640-6
73-10-01-02
S1640-6
73-10-01-03 S1640-6
P1 CONNECTOR - Disconnect for FL005 and FR003
Strobe Light Assembly.
33-40-02-01 S1638-1
80001 80944
P1 CONNECTOR
- Disconnect for FL007
and FR005
Strobe
Light
Assembly.
33-11-02-05
1-480351-0
33-40-02-02 1-480351-0
33-40-02-03 1-480351-0
33-40-02-04 1-480351-0
80945 &ON
8001 & ON
P2
CONNECTOR
- Connect
to UI001
glareshield
power
supply located
behind instrument
panel.
27-10-01-01
350767-1
33-11-03-01
350767-1
P2 TERMINAL
- Pilot dome light
regulator disconnect
33-10-04-03
08-50-0114
81742 &ON
8481
& ON
P3
TERMINAL -
Copilots dome
light regulator
disconnect
33-10-04-03 08-50-0114
81742 &ON
8481 & ON
PB018 CONNECTOR
24-20-01-01
24-20-01-02
24-20-01-03
24-20-01-04
24-20-01-05
24-20-01-06
24-20-02-01
24-30-01-01
24-30-01-02
24-30-01-03
31-20-01-01
31-20-01-02
31-20-01-03
31-20-01-04
74-10-01-01
74-10-01-02
74-10-01-03
77-40-01-01
77-40-01-02
PB019 CONNECTOR KIT
24-20-01-02
24-20-01-03
24-20-01-04
24-20-01-05
24-20-01-06
24-30-01-02
24-30-01-03
PART
NUMBER
EFFECTIVITY
S2800-274
S2800-274
S2800-274
S2800-274
S2800-274
S2800-274
S2800-274
S2800-274
S2800-274
S2800-274
S2800-274
S2800-274
S2800-274
S2800-274
S2800-274
S2800-274
S2800-274
S2800-274
S2800-274
KTKSAD10280X3
KTKSAD 10280X3
KTKSAD10280X3
KTKSAD10280X3
KTKSAD10280X3
KTKSAD10280X3
KTKSAD10280X3
80945 &ON
8001 & ON
PB017
CONNECTOR
24-20-01-01
24-30-01-01
S2800-275
S2800-275
80001 80944
