Textron Cessna 182S - Page 58

REF DESCRIPTION
DES
CH-SE-SU-FIG
CESSNA AIRCRAFT COMPANY
MODEL
182/T182
WIRING DIAGRAM MANUAL
PART REF DESCRIPTION
NUMBER
EFFECTIVITY DES
CH-SE-SU-FIG
PART
NUMBER
EFFECTIVITY
PC001
CONNECTOR - Disconnect
for Electrical Circuit
Breaker Panel located in cabin behind instrument
panel.
24-20-01-01 S2350-10
24-20-01-02 S2350-10
24-20-01-03 S2350-10
24-20-01-04 S2350-10
24-30-01-01 S2350-10
24-30-01-02 S2350-10
24-50-01-01 S2350-10
24-50-01-02 S2350-10
24-61-01-01 S2350-10
24-61-01-02 S2350-10
24-61-01-03
S2350-10
24-61-01-04 S2350-10
24-61-02-01
S2350-10
28-40-01-01 S2350-10
28-40-01-02 S2350-10
30-30-01-01 S2350-10
30-60-01-01 S2350-10
31-20-01-01 S2350-10
31-20-01-02 S2350-10
31-20-01-03 S2350-10
31-20-01-04 S2350-10
33-10-01-01 S2350-10
33-10-01-02 S2350-10
33-10-01-03 S2350-10
33-11-01-01 S2350-10
33-11-01-02 S2350-10
33-11-01-03 S2350-10
33-11-01-04 S2350-10
33-11-02-01 S2350-10
33-11-02-02 S2350-10
33-11-02-03 S2350-10
33-11-03-01 S2350-10
33-40-01-01 S2350-10
33-40-01-02 S2350-10
33-40-01-03 S2350-10
33-40-01-04 S2350-10
33-40-02-01 S2350-10
33-40-02-02 S2350-10
33-40-02-03 S2350-10
34-21-01-01 S2350-10
37-20-01-01 S2350-10
37-20-01-02 S2350-10
73-10-01-01 S2350-10
73-10-01-02 S2350-10
74-10-01-01 S2350-10
74-10-01-02
S2350-10
77-20-01-01 S2350-10
77-20-01-02 S2350-10
77-21-01-01 S2350-10
77-30-01-01 S2350-10
77-30-01-02 S2350-10
77-30-01-03 S2350-10
79-30-01-01 S2350-10
PC002
CONNECTOR
- Disconnect
for
center Pedestal
Light
located
behind instrument
panel.
33-10-01-03 S2035-1
33-10-01-04 S2035-1
PC003
CONNECTOR
- Disconnect
for
lower Pedestal
Light
located behind instrument panel.
33-10-01-01
S2035-1
33-10-01-02 S2035-1
33-10-01-03 S2035-1
33-10-01-04
S2035-1
PC004 CONNECTOR
- Disconnect for upper
Pedestal Light
located
behind instrument
panel.
33-10-01-01 S2035-1
33-10-01-02 S2035-1
33-10-01-03 S2035-1
33-10-01-04 S2035-1
PC005 CONNECTOR - Disconnect for Dimming Control
Module located behind left instrument panel on
outboard side.
33-10-01-01 S1640-9
33-10-01-02 S1640-9
33-10-01-03 S1640-9
33-10-01-04 S1640-9
33-11-03-01 S1640-9
33-11-03-02 S1640-9
PC007 CONNECTOR - Avionics/Electrical disconnect behind
instrument
panel.
22-10-02-01 S1640-9
22-10-03-01 S1640-9
22-10-03-02 S1640-9
22-10-04-01 S1640-9
22-10-04-01 S1640-9
22-10-04-02 S1640-9
22-10-04-02 S1640-9
22-10-04-03 S1640-9
22-10-04-03 S1640-9
22-10-04-04 S1640-9
22-10-04-04 S1640-9
22-10-04-05 S1640-9
22-10-04-05 S1640-9
22-10-04-06 S1640-9
22-10-04-06 S1640-9
22-10-04-07 S1640-9
22-10-04-07 S1640-9
22-10-04-08 S1640-9
22-10-04-08 S1640-9
22-10-04-09 S1640-9
22-10-04-09 S1640-9
23-50-01-01 S1640-9
23-50-01-02 S1640-9
23-50-01-03 S1640-9
23-50-01-04
S1640-9
23-50-01-05 S1640-9
24-61-01-01
S1640-9
24-61-01-02 S1640-9
24-61-01-03 S1640-9
24-61-01-04 S1640-9
25-60-01-01 S1640-9
25-60-01-02 S1640-9
25-60-01-03 S1640-9
31-50-01-01 S1640-9
31-50-01-02 S1640-9
31-50-01-03 S1640-9
31-50-01-04 S1640-9
31-50-01-05 S1640-9
33-10-01-01 S1640-9
33-10-01-02 S1640-9
33-10-01-03 S1640-9
33-11-01-02
S1640-9
33-11-01-03
S1640-9
33-11-01-04 S1640-9
34-21-01-01 S1640-9
34-51-01-02 S1640-9
34-51-01-03 S1640-9
34-51-01-04 S1640-9
34-51-02-01 S1640-9
34-51-02-02 S1640-9
PC007 CONNECTOR
34-51-02-03
S1635-1

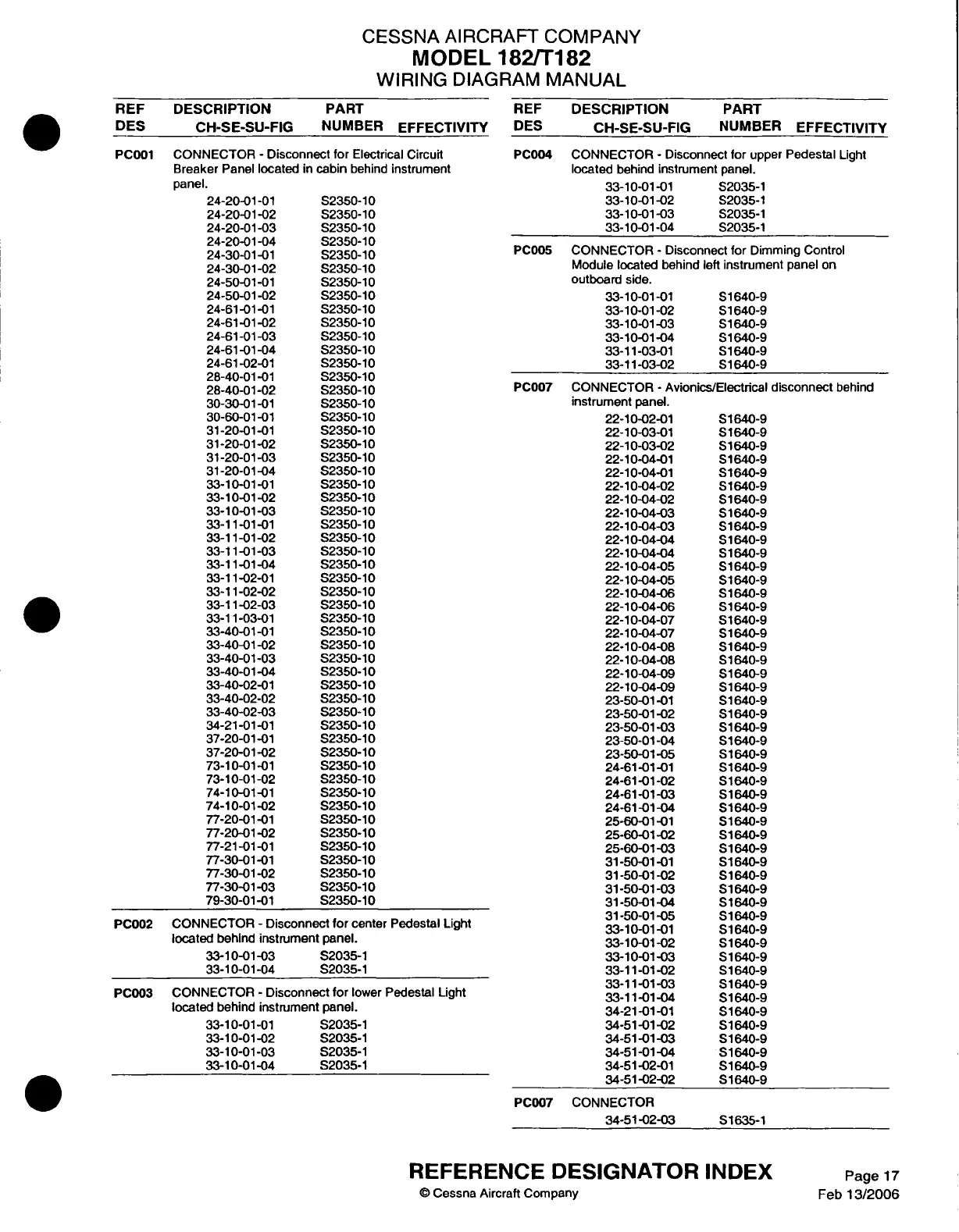

REFERENCE DESIGNATOR INDEX
© Cessna Aircraft Company
Page
17
Feb 13/2006
