THERMACUT EX-TRAFIRE 105HD - Setting up the Power Supply; Connecting Gas Supply; Connecting Work Lead; Connecting Power Supply Cable

18
6 Setting up the power supply EX-TRAFIRE
®
105HD
6 Setting up the power supply

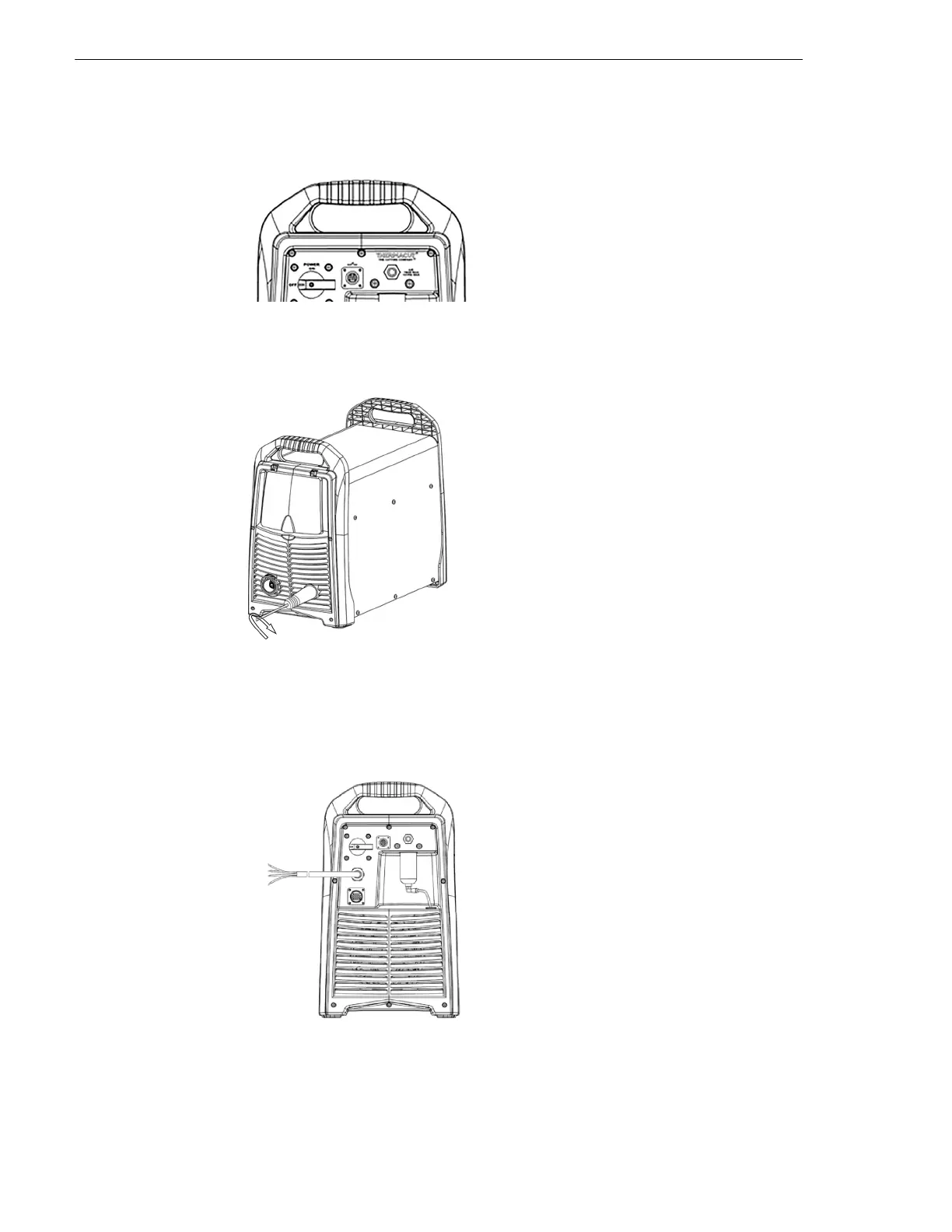

6.1 Connecting to the gas supply
6.2 Connecting the work lead
6.3 Connecting the power supply cable
6.3.1 Connecting the single-phase machine
 Connect the gas hose with an inside
diameter of at least 3/8 in. (10 mm)
to the gas connection of the power
supply.
 Connect the work lead to the work
lead connecting socket and secure it
by rotating clockwise.
The power supply should be
connected by a certified electrician or
trained personnel.
L1 -> red
L2 -> black
N -> white
Ground -> green
The green grounding wire is exclusively
for the grounding and must always be
connected!
R
e
d
G
r
e
e
n
Black
White
