THERMACUT EX-TRAFIRE 105HD - 45 A Cutting, Shielded, with Compressed Air

56

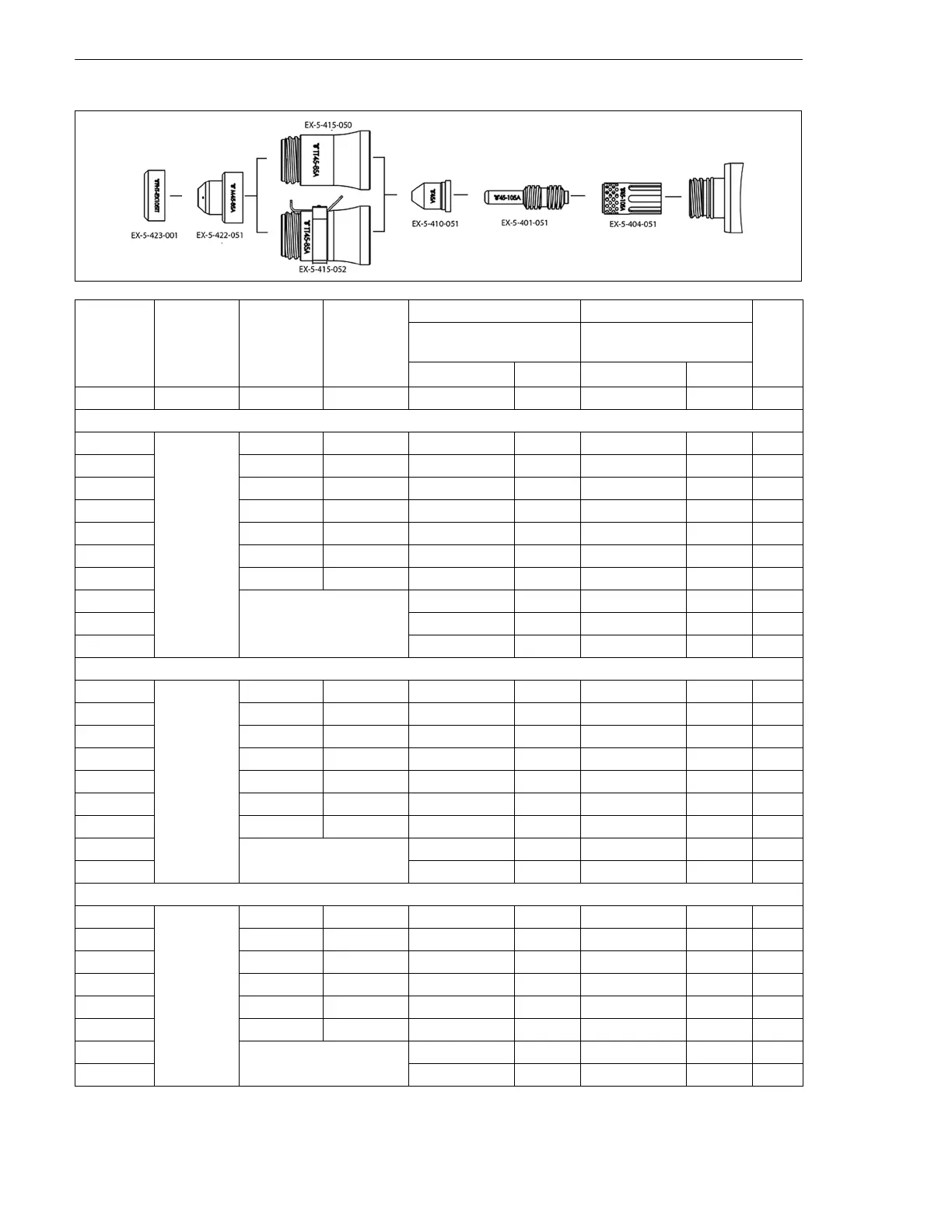

20 Cut charts for mechanized cutting EX-TRAFIRE
®
105HD
20.1 45 A cutting, shielded, with compressed air
Material
thickness
Cut height
(shield to
work cut
height)
Pierce
height
(shield to
workpiece
height)
Pierce
delay time
Recommended speed Maximum speed Kerf
width
Settings for
highest quality
Standard quality
settings
Cutting speed Voltage Cutting speed Voltage
[in] [in] [in] [Seconds] [ipm] [Volts] [ipm] [Volts] [in]
Mild steel
14 GA
0.075
0.138 0.1 220 113 261 107 0.055
12 GA 0.138 0.1 155 113 191 109 0.055
3/16 0.138 0.3 114 115 134 113 0.055
1/4 0.138 0.5 59 117 70 116 0.063
5/16 0.138 0.5 41 117 47 119 0.067
3/8 0.157 0.6 30 123 33 122 0.071
1/2 0.177 1 21 128 24 125 0.071
5/8
Edge start
11 130 13 130 0.079
3/4 7 139 8 136 0.087
1 4 146 6 142 0.087
Stainless steel
14 GA
0.075
0.138 0.1 209 112 299 112 0.039
12 GA 0.138 0.2 118 120 173 119 0.051
3/16 0.138 0.4 75 120 114 120 0.055
1/4 0.138 0.6 39 126 63 120 0.063
5/16 0.157 0.6 28 128 37 124 0.063
3/8 0.189 0.8 20 132 30 129 0.063
1/2 0.205 1.2 13 136 20 132 0.071
5/8
Edge start
139 13 133 0.079
3/4 140 8 138 0.079
Aluminum
1/16
0.075
0.138 0.1 309 116 374 115 0.043
1/8 0.138 0.2 189 121 279 118 0.059
3/16 0.138 0.4 142 121 220 120 0.059
1/4 0.138 0.5 79 128 120 125 0.059
5/16 0.138 0.6 51 128 71 125 0.063
3/8 0.157 0.7 34 132 40 130 0.067
1/2
Edge start
24 134 29 133 0.067
5/8 13 134 15 137 0.067
