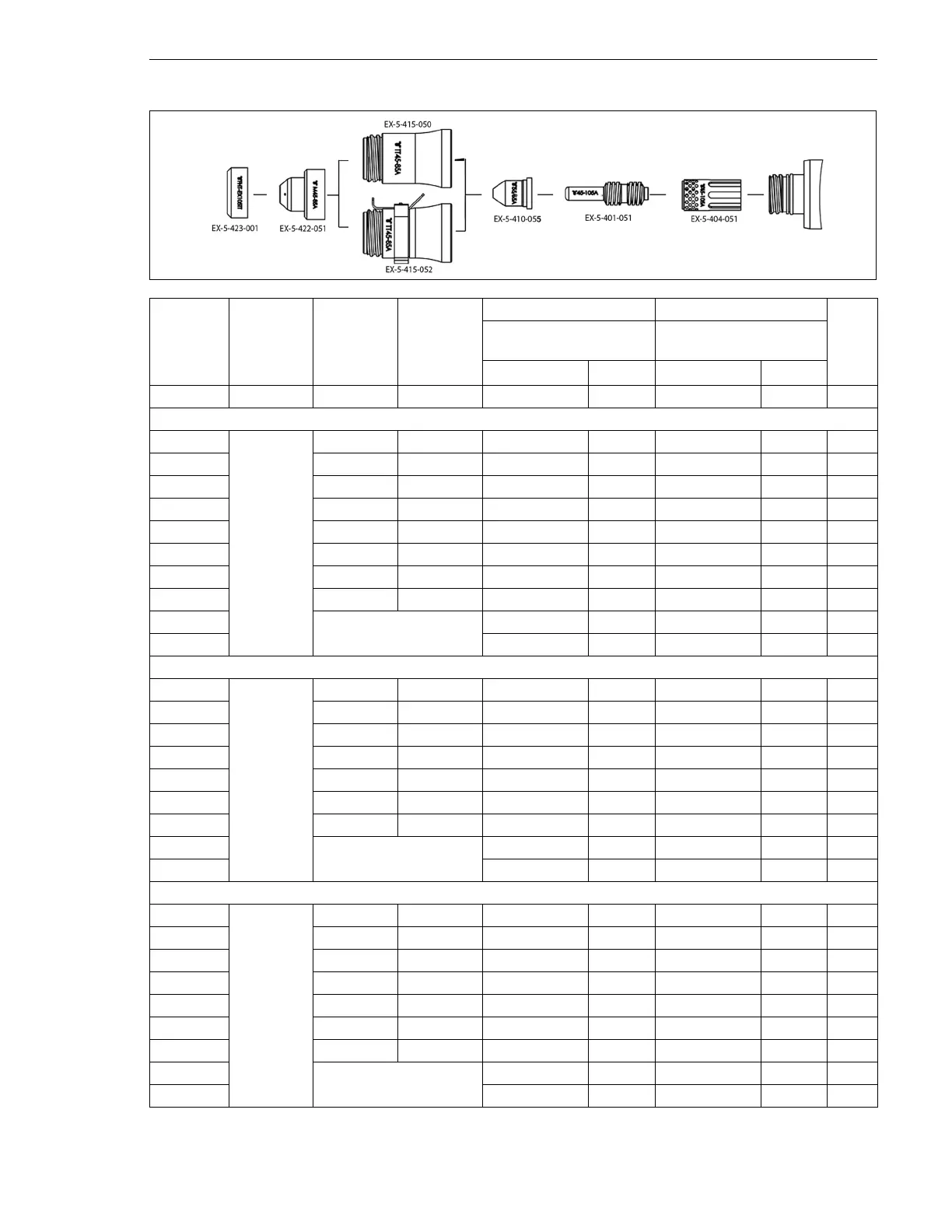

THERMACUT EX-TRAFIRE 105HD - 85 A Cutting, Shielded, with Compressed Air (Chart)

EX-TRAFIRE
®
105HD 20 Cut charts for mechanized cutting
61
20.5.1 85 A cutting, shielded, with compressed air
Material
thickness
Cut height
(shield to
work cut
height)
Pierce
height
(shield to
workpiece
height)
Pierce
delay time
Recommended speed Maximum speed Kerf
width
Settings for
highest quality
Standard quality
settings
Cutting speed Voltage Cutting speed Voltage
[in] [in] [in] [Seconds] [ipm] [Volts] [ipm] [Volts] [in]
Mild steel
12 GA
0.083
0.138 0.1 252 112 284 109 0.063
3/16 0.138 0.2 185 106 122 106 0.063
1/4 0.138 0.5 122 112 150 113 0.075
5/16 0.138 0.5 94 114 104 114 0.075
3/8 0.138 0.5 63 114 71 113 0.075
1/2 0.157 0.8 43 120 54 118 0.083
5/8 0.157 1 31 124 33 124 0.083
3/4 0.197 1.8 19 130 21 130 0.087
1
Edge start
13 134 14 133 0.087
1-1/8 6 141 8 138 0.102
Stainless steel
12 GA
0.083
0.138 0.2 291 107 362 103 0.055
3/16 0.138 0.5 240 109 295 105 0.055
1/4 0.138 0.5 142 112 181 111 0.059
5/16 0.138 0.5 90 113 110 114 0.063
3/8 0.157 0.8 59 116 75 116 0.075
1/2 0.197 1.2 39 121 51 120 0.071
5/8 0.197 1.4 28 125 30 126 0.079
3/4
Edge start
19 129 22 127 0.083
1 12 136 15 130 0.083
Aluminum
1/8
0.083
0.138 0.1 315 113 370 110 0.063
3/16 0.138 0.2 256 116 315 115 0.063
1/4 0.157 0.5 150 118 193 120 0.063
5/16 0.197 0.5 102 120 138 120 0.067
3/8 0.236 0.5 75 124 98 121 0.079
1/2 0.276 0.7 57 128 75 123 0.083
5/8 0.276 1 37 134 47 129 0.091
3/4
Edge start
24 138 35 133 0.083
1 15 141 21 138 0.083
