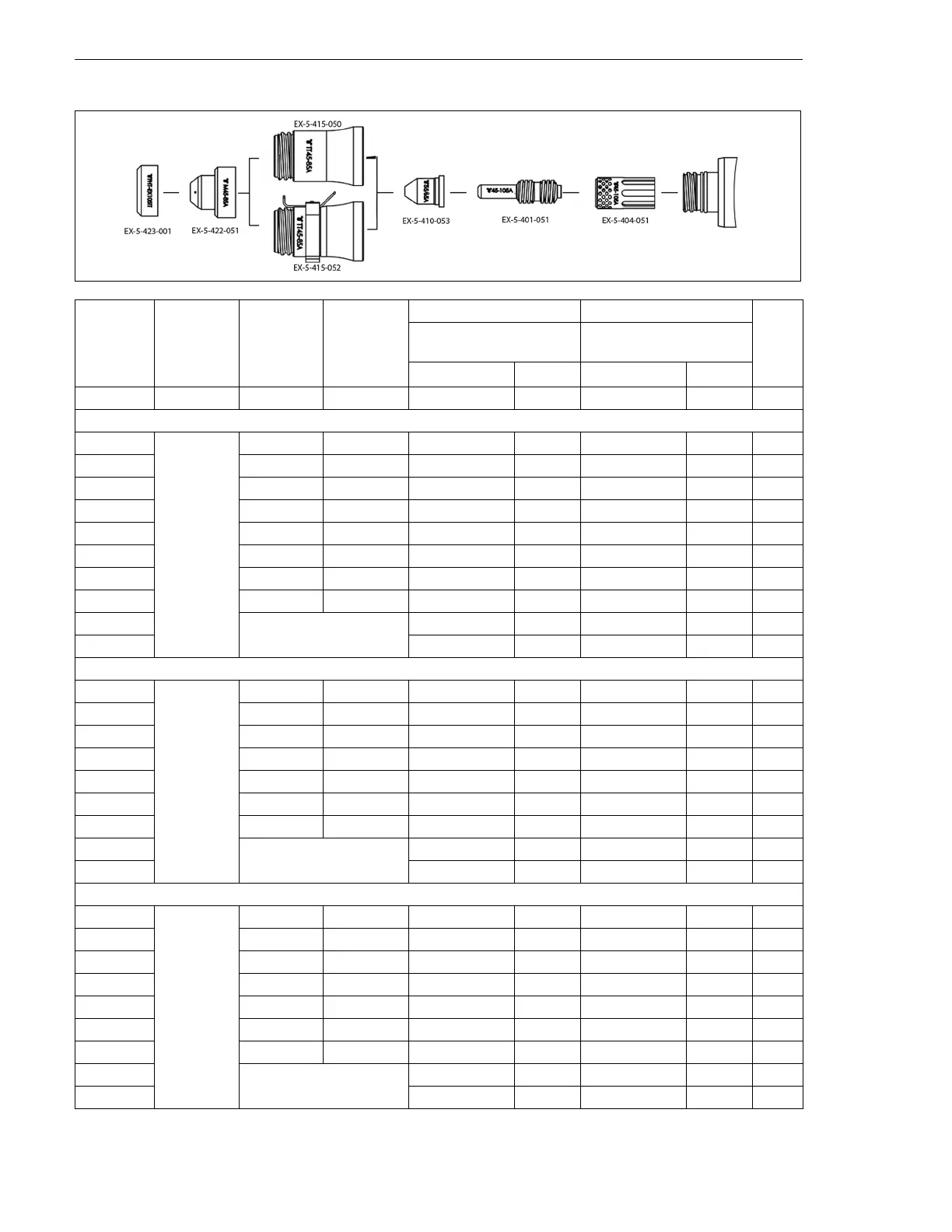

THERMACUT EX-TRAFIRE 105HD - 65 A Cutting, Shielded, with Compressed Air

58
20 Cut charts for mechanized cutting EX-TRAFIRE
®
105HD
20.3 65 A cutting, shielded, with compressed air
Material
thickness
Cut height
(shield to
work cut
height)
Pierce
height
(shield to
workpiece
height)
Pierce
delay time
Recommended speed Maximum speed Kerf
width
Settings for
highest quality
Standard quality
settings
Cutting speed Voltage Cutting speed Voltage
[in] [in] [in] [Seconds] [ipm] [Volts] [ipm] [Volts] [in]
Mild steel
14 GA
0.075
0.138 0.1 244 106 295 100 0.063
12 GA 0.138 0.1 197 108 224 108 0.063
3/16 0.138 0.3 161 109 181 108 0.063
1/4 0.138 0.5 83 111 114 109 0.067
5/16 0.138 0.5 67 111 77 109 0.067
3/8 0.157 0.8 41 117 51 116 0.075
1/2 0.157 1 34 119 38 117 0.079
5/8 0.177 1.3 24 130 27 126 0.087
3/4
Edge start
15 130 17 129 0.087
1 8 139 11 134 0.091
Stainless steel
14 GA
0.075
0.150 0.1 315 107 393 106 0.051
12 GA 0.150 0.2 256 107 323 106 0.051
3/16 0.150 0.5 197 107 240 110 0.051
1/4 0.150 0.5 92 111 106 110 0.067
5/16 0.150 0.8 55 117 69 112 0.067
3/8 0197 1 35 121 47 117 0.079
1/2 0.276 1.2 28 123 34 120 0.079
5/8
Edge start
19 124 22 123 0.079
3/4 11 134 15 131 0.075
Aluminum
1/16
0.075
0.138 0.1 342 112 393+ 113 0.055
1/8 0.138 0.1 283 114 346 114 0.055
3/16 0.138 0.3 236 115 287 117 0.055
1/4 0.138 0.4 118 118 173 120 0.071
5/16 0.138 0.5 71 122 102 120 0.075
3/8 0.157 0.8 47 125 65 123 0.075
1/2 0.157 1 35 130 51 127 0.075
5/8
Edge start
26 132 28 130 0.075
3/4 15 138 22 143 0.067
