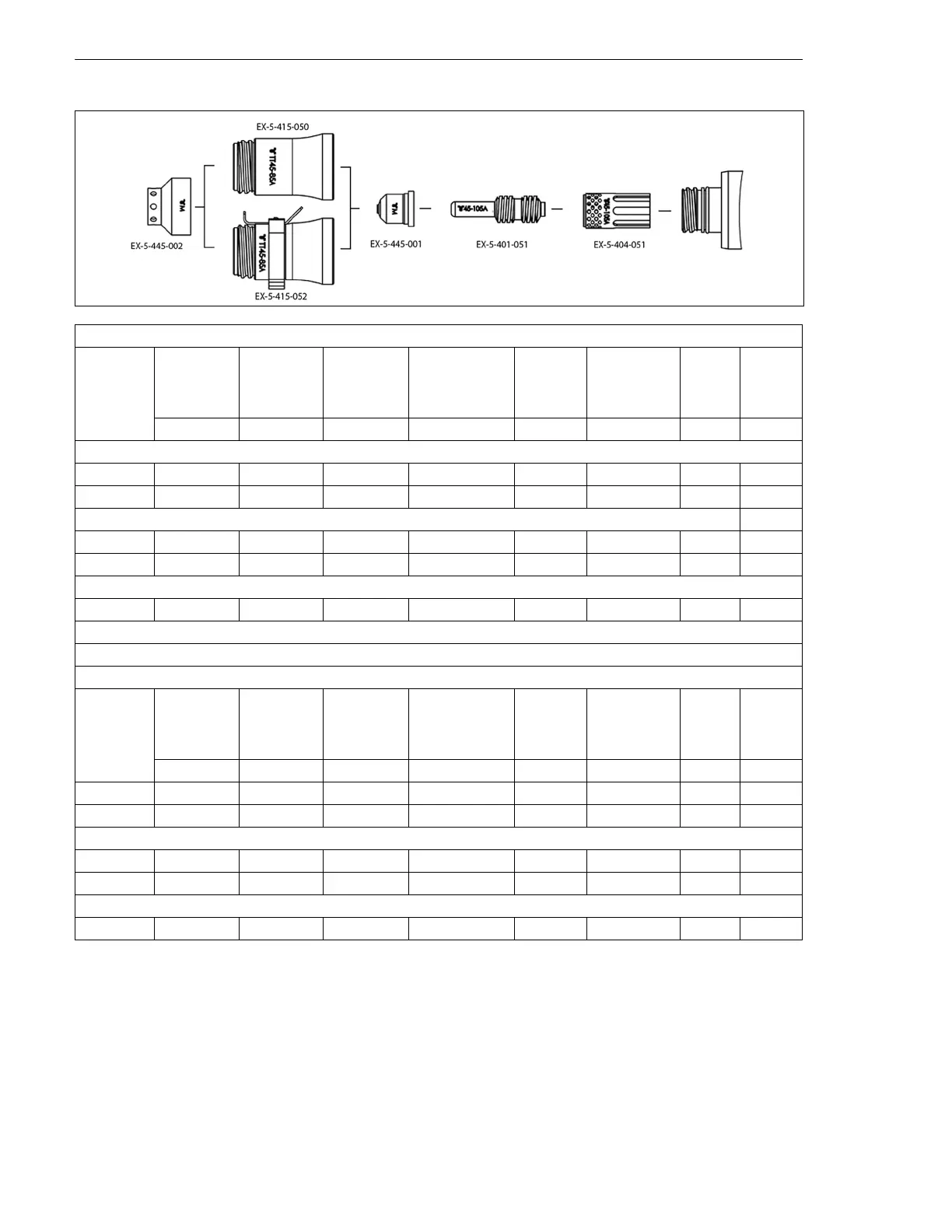

THERMACUT EX-TRAFIRE 105HD - Marking, Shielded, with Compressed Air or Argon

66
20 Cut charts for mechanized cutting EX-TRAFIRE
®
105HD
20.8 Marking, shielded, with compressed air or argon
With compressed air
Marking Power
supply
Cut height
(shield to
work cut
height)
Initial
marking
height
Delay Marking
speed
Arc voltage Kerf
width
Kerf
depth
[Amps] [in] [in] [Seconds] [ipm] [Volts] [in] [in]
Mild steel
Low 10 0.252 0.252 0 100 127 0.055 <0.001
High 10 0.181 0.181 0 100 109 0.064 0.001
Stainless steel
Low 10 0.201 0.201 0 200 116 0.077 0.001
High 10 0.252 0.252 0 125 128 0.090 0.002
Aluminum
11 0.039 0.039 0 200 80 0.036 <0.001
With argon
Mild steel
Marking Power
supply
Cut height
(shield to
work cut
height)
Initial
marking
height
Delay Marking
speed
Arc voltage Kerf
width
Kerf
depth
[Amps] [in] [in] [Seconds] [ipm.] [Volts] [in] [in]
Low 10 0.079 0.079 0 125 41 0.064 <0.001
High 15 0.059 0.059 0 125 41 0.047 <0.001
Stainless steel
Low 12 0.098 0.098 0 125 43 0.055 <0.001
High 15 0.098 0.098 0 100 43 0.059 <0.001
Aluminum
16 0.020 0.020 0 175 39 0.024 <0.001
