THERMACUT EX-TRAFIRE 105HD - Enabling External AC Coil; Enabling Industrially Insulated Module

EX-TRAFIRE
®
105HD 21 Appendix
69
21.1.3Enabling the external AC coil with an external power supply
21.1.4Enabling the industrially insulated module with
an external power supply
Industrial insulated user module with 24 V DC power supply.

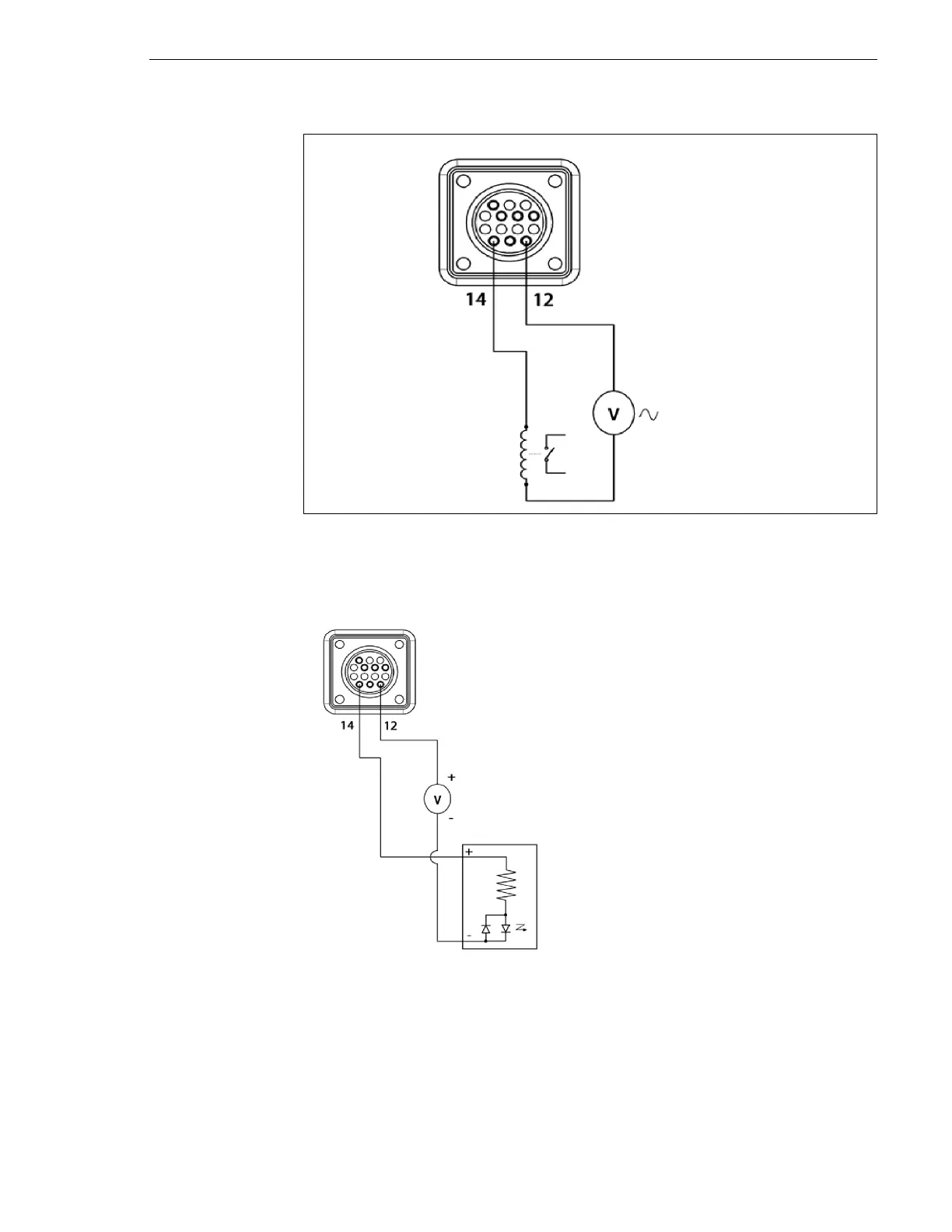

Fig. 13 Enable the external AC coil with an external power supply.
24 V AC
230 V AC
1 Switch off the EX-TRAFIRE
®
105HD.
2 Remove the interface cover.
3 Connect the interface cable with the
cutting power supply.
Insulated
module
