6.6 Installing consumables for the hand and machine
cutting torches
The procedure shown below applies to both the equipment of hand and
machine cutting torch.
Electric shock due to live parts
Fatal electric shock can occur if components are live during maintenance
and cleaning work.
Set the POWER switch to OFF before maintenance and cleaning work.
Disconnect the input power supply from the wall.
Observe the Lock-out/Tag-out procedures.

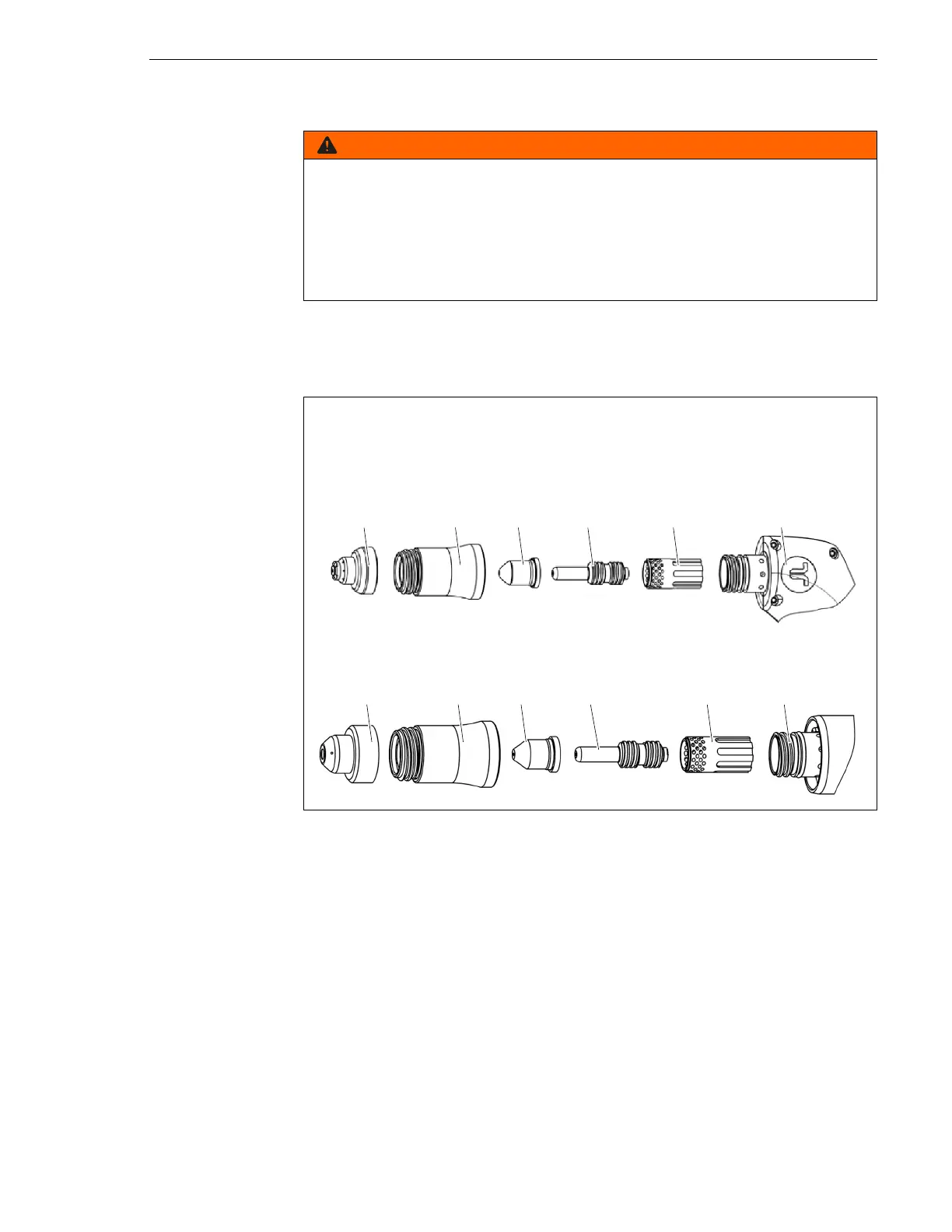

Fig. 8 Torch consumables
A Shield
B Retaining cap
C Nozzle
D Electrode
E Swirl ring
F Hand cutting torch/Machine cutting
torch
A BC D E F
Hand cutting torch
A BC D E F
Machine cutting torch
