6 Setting up the power supply EX-TRAFIRE
®
105HD

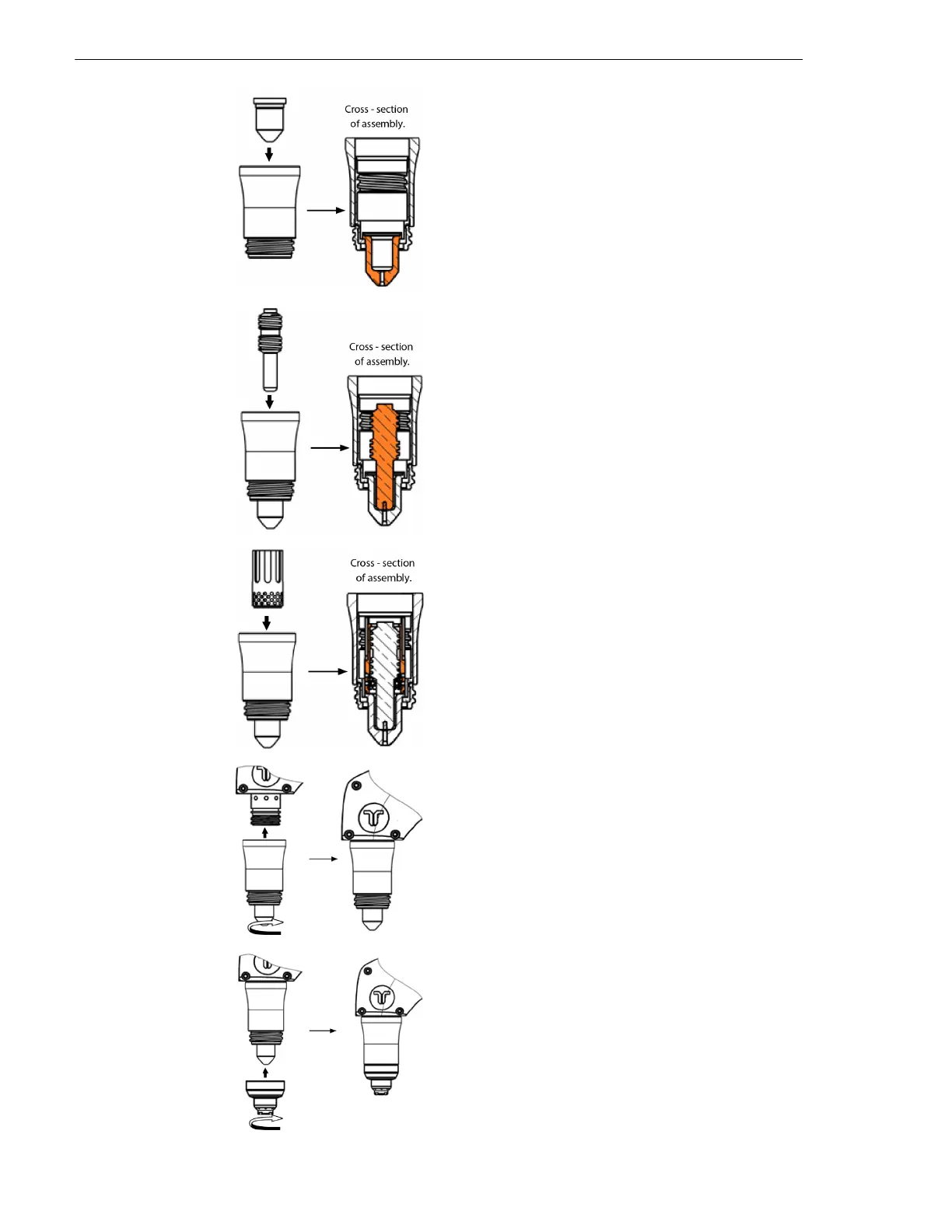

1 Install nozzle into the retaining cap.
2 Insert the electrode into the retaining
cap and nozzle assembly.
3 Insert the swirl ring.
4 Screw the entire assembly onto the
hand cutting torch.
Do not overtighten.
The nozzle must be firmly in place and
must not move.
5 Install the shield.
Do not overtighten.
