THERMACUT EX-TRAFIRE 105HD - Consumables for SmoothLine Machine Cutting Torch

EX-TRAFIRE
®
105HD 19 FHT-EX
®
105TTM consumables for machine cutting torch
53
19.3 FHT-EX
®
105TTM consumables for SmoothLine
machine cutting torch
If a torch height controller is used, a retaining cap with IHS (initial height
sensing) must be used.

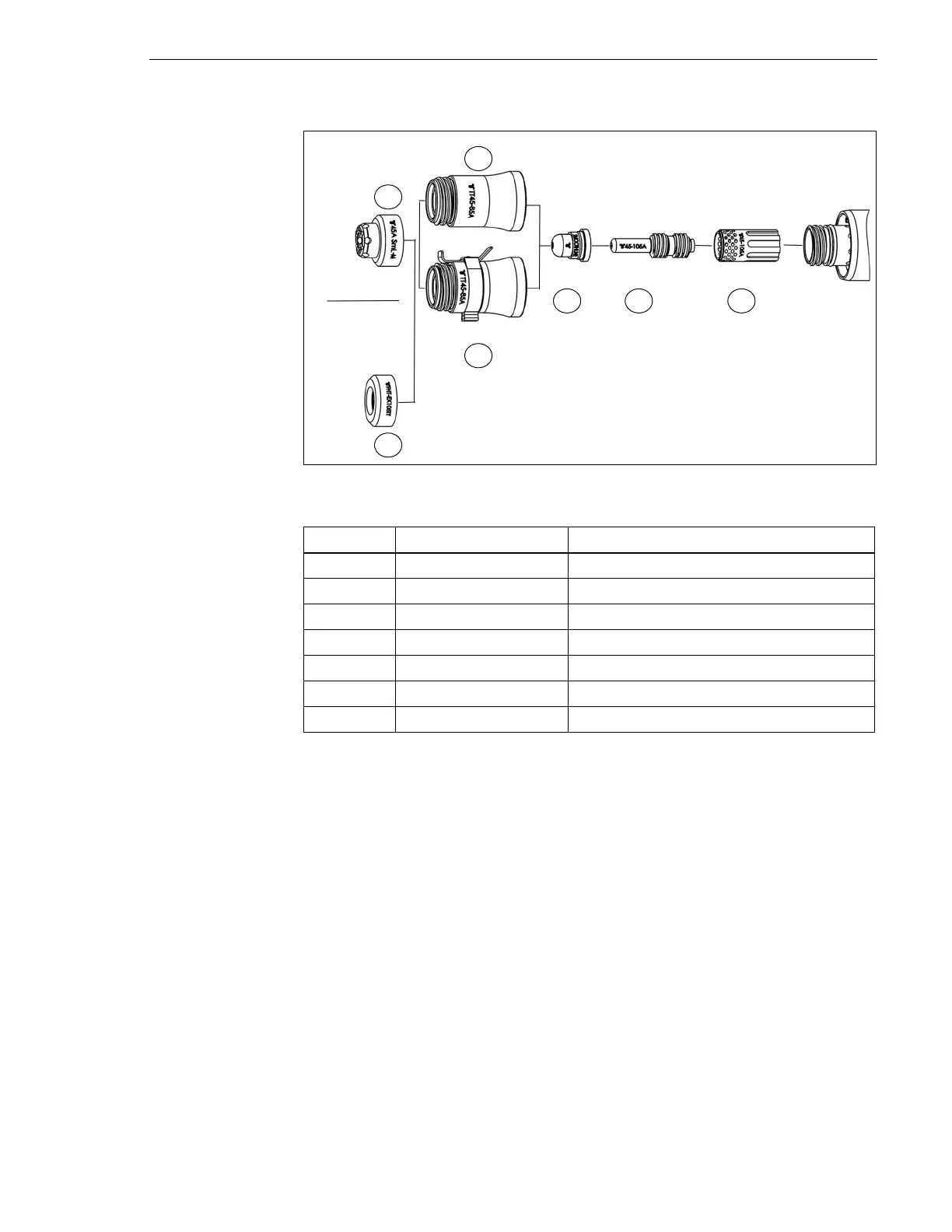

Table 25 FHT-EX
®
105TTM consumables for SmoothLine machine cutting
torch
Item Part number Description
A EX-5-404-051 Swirl ring 45–105 A
B EX-5-401-051 Electrode 45–105 A
C EX-5-410-050 Nozzle, SmoothLine
D EX-5-415-050 Retaining cap 45–85 A
E EX-5-415-052 Retaining cap 45–85 A with IHS tab
F EX-5-422-050 Shield 40/45 A
G EX-5-423-001 Deflector
Shielded
** U n s h i e l d e d
AB
C
D
F
E
G
