Binary control
Contact-activated input P002
Contact-activated input P003
P002 selection
Program playback P003 playback
Playback control input
Playback startPlayback start
P003 selection
P002 playback
Playback control input
Contact-activated input P002
Contact-activated input P003
P003 playback
P003 selection
P002 selection
Playback start Playback start
Program playback

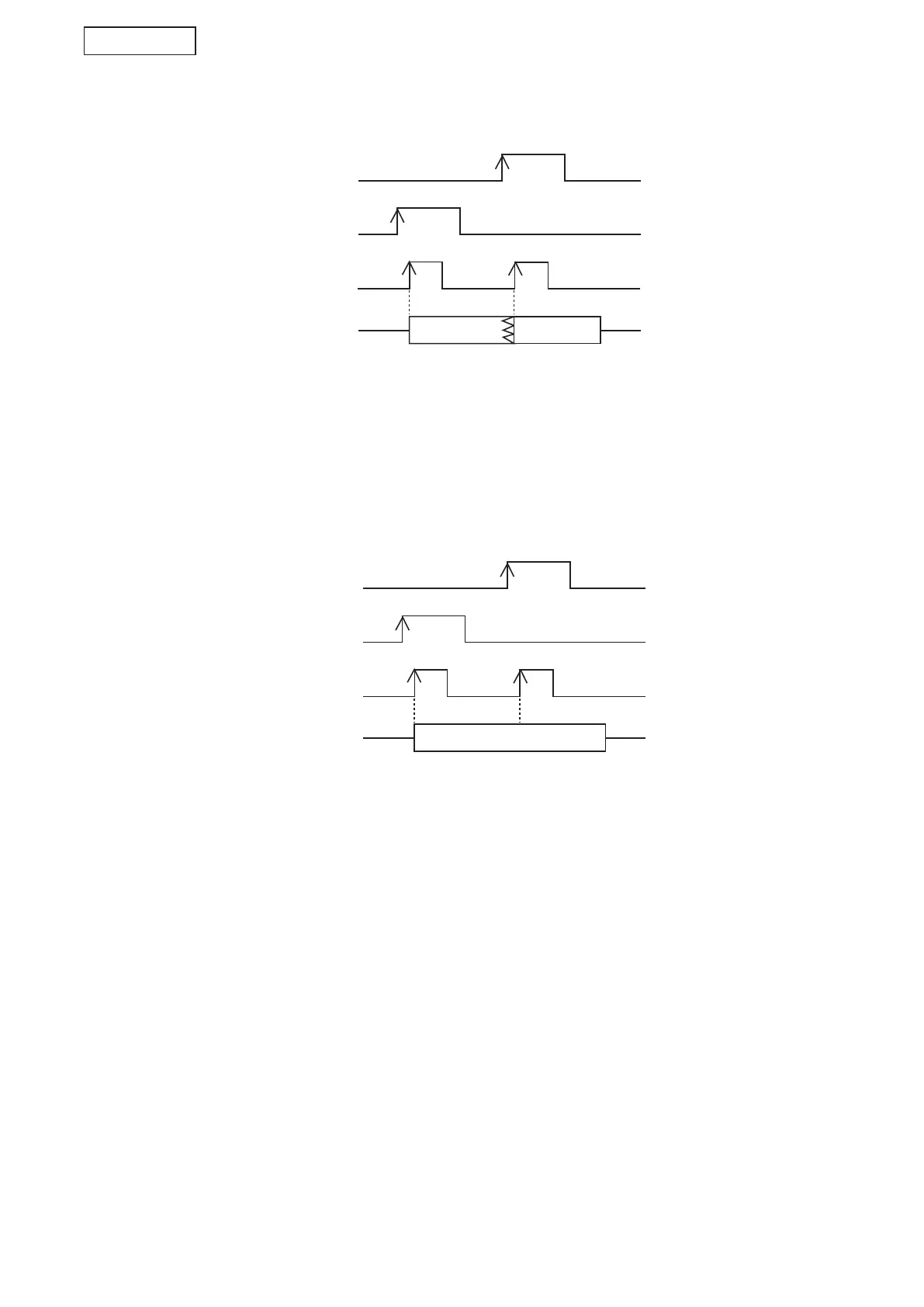

[(12) Operation of LIFO playback (priority setting) by a Pulse signal input activation]
• Priority setting: When P002 is higher than or equal to P003
(Activation method)
Close the Playback control input terminal while the Contact-activated input terminal corresponding to the
program number to be played is being closed.
(Operation description)
When P002 playback is activated during Program P003 playback, P002 is played preferentially.
• Priority setting: When P002 is lower than P003
(Activation method)
Close the Playback control input terminal while the Contact-activated input terminal corresponding to the
program number to be played is being closed.
(Operation description)
P003 playback continues even if P002 playback is activated during Program P003 playback.
